By Sumiko

Sumiko - Wellfleet - Moving Magnet Cartridge

$449.00
$449.00

To Purchase or Inquire about this product, please:

Demo and Pre-Owned units may be available.

Email Us
Brand: Sumiko
Collections:
SumikoSumiko - Moonstone - Moving Magnet Cartridge
Salon 1 Audio Sumiko Moonstone moving magnet phono cartridge with a black body and distinctive red stylus assembly

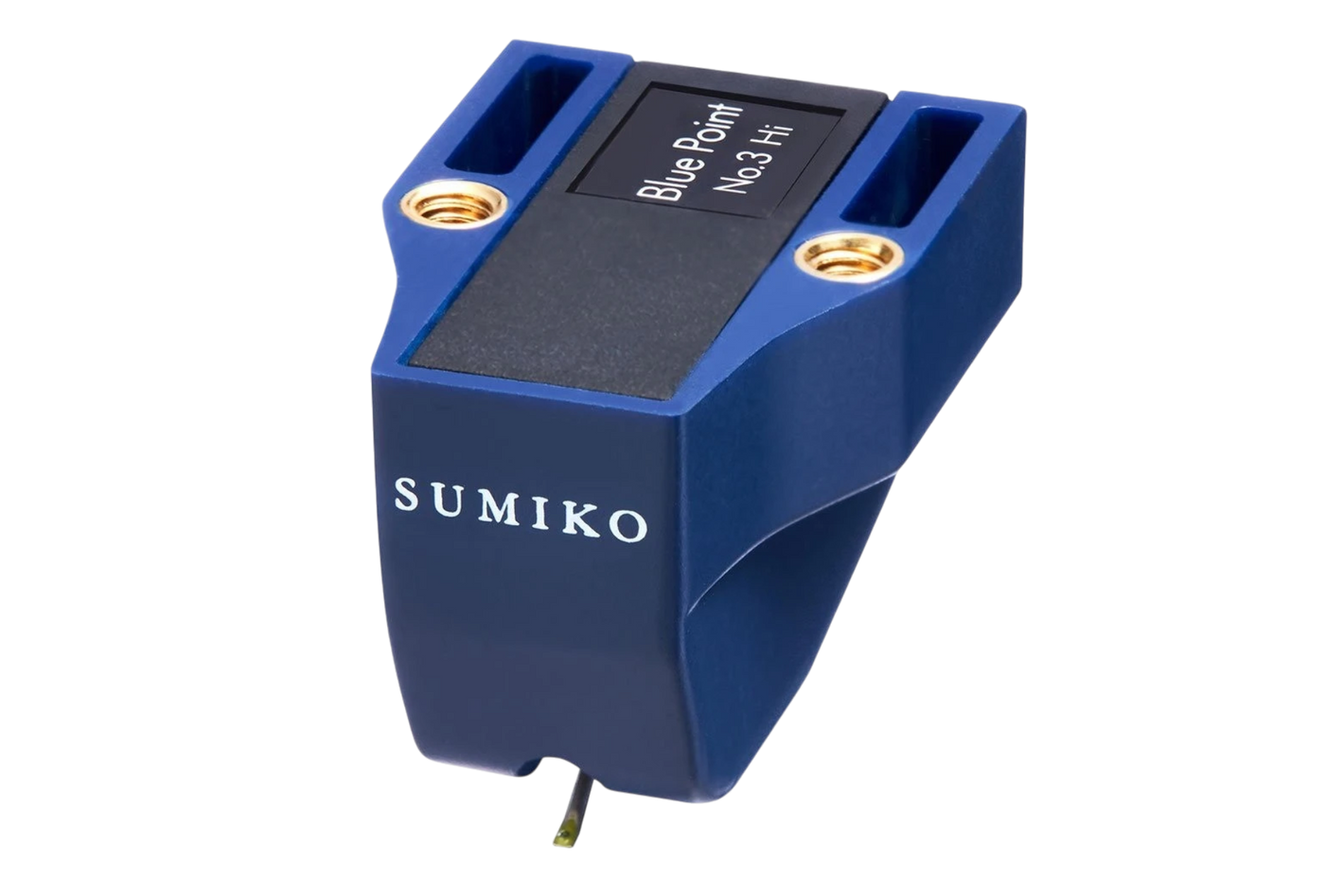

Salon 1 Audio Sumiko Blue Point No. 3 High output moving coil phono cartridge with a blue body and elliptical stylus.
OrtofonSumiko - Blue Point No. 3 High - High Output Moving Coil Cartridge

      The Sumiko Wellfleet elevates the acclaimed Oyster Series with a highly polished Nude Elliptical stylus that delivers greater speed, precision, and musical realism. By reducing moving mass and eliminating the bonded stylus interface, the Wellfleet retrieves finer detail while presenting a wider, deeper soundstage with exceptional image focus and effortless musical flow.

      Handcrafted in Yokohama, Japan by the master cartridge builders at Excel Sound, the Wellfleet combines premium materials with Sumiko's proven moving magnet design philosophy. Rich tonal balance, refined transient response, and outstanding tracking ability allow vocals and instruments to breathe naturally within an expansive, highly detailed presentation that remains smooth and fatigue-free.

      As part of Sumiko's versatile Oyster Series, the Wellfleet offers complete compatibility with interchangeable replacement styli, providing an easy upgrade path while preserving the exceptional musical character that defines the series.

      FEATURES

      • Moving Magnet (MM) phono cartridge
      • Highly polished Nude Elliptical stylus (0.3 × 0.7 mil)
      • Lightweight aluminum pipe cantilever
      • High-purity copper coils
      • Excellent imaging, transient response, and tracking ability
      • Compatible with Oyster Series interchangeable styli
      • Handcrafted by Excel Sound in Yokohama, Japan

      DESIGN & TECHNOLOGY

      • Nude Elliptical Stylus: A one-piece polished nude elliptical diamond reduces moving mass for improved groove tracing, faster transients, greater detail retrieval, and lower distortion.
      • Integrated Resonance Control: Sumiko's integrated cartridge body and generator efficiently transfer unwanted vibration into the tonearm, minimizing coloration and preserving musical accuracy.
      • Expansive Soundstage: Improved stylus performance enhances image focus, instrument separation, ambient detail, and overall spatial realism.
      • Upgradeable Oyster Platform: Compatible with Rainier, Olympia, Moonstone, Wellfleet, Amethyst, and RS 78 replacement styli, providing flexibility for future upgrades and maintenance.
      • Handcrafted in Japan: Individually assembled and carefully auditioned by Excel Sound's skilled craftsmen to ensure exceptional consistency and musical performance.

      SPECIFICATIONS

      • Type: Moving Magnet (MM)
      • Stylus: Nude Elliptical (0.3 × 0.7 mil)
      • Cantilever: 0.5 mm Aluminum Pipe
      • Coil Material: High-Purity Copper
      • Output Voltage: 3.0 mV (3.54 cm/sec, 1 kHz)
      • Frequency Response: 12 Hz – 30 kHz
      • Channel Separation: 27 dB (1 kHz)
      • Channel Balance: < 1 dB (1 kHz)
      • Internal Impedance: 1,130 Ω (1 kHz)
      • Recommended Load Impedance: 47 kΩ
      • Recommended Capacitance: 100–200 pF
      • Compliance: 12 × 10⁻⁶ cm/dyn (100 Hz)
      • Vertical Tracking Angle: 25°
      • Tracking Force Range: 1.8 – 2.2 g
      • Recommended Tracking Force: 2.0 g
      • Weight: 6.7 g
      • Replacement Stylus: RS Rainier, Olympia, Moonstone, Wellfleet, Amethyst, or RS 78
      • Handcrafted In: Japan
