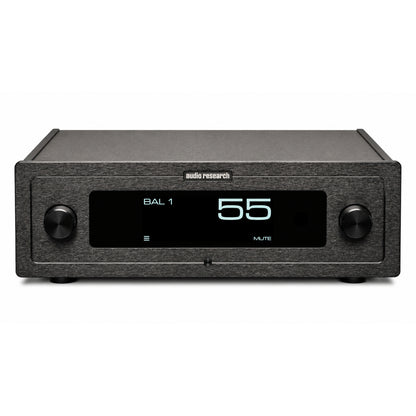

Audio Research LS-3 Preamplifier

Inspired by the award-winning 1992 LS3 line stage, the modern LS-3 is a fully balanced solid-state preamplifier featuring a differential JFET input stage, bipolar voltage amplification and Class-A outputs. Its dual-mono design, separate transformers and low-noise linear power supplies deliver excellent dynamics, speed and tonal richness. The LS-3 creates an expansive soundstage with impressive focus, air and musical energy. Housed in a rigid all-aluminum chassis shared with the LS-2 it combines performance with elegant Audio Research styling. A new touchscreen display offers customizable inputs, brightness, color settings and styling inspired by the brand’s Reference GhostMeters®.

Frequency Response: +/-0dB 10Hz to 40kHz at rated output (Balanced, 100k ohms load)

THD+Noise: Less than .007% at 2V RMS BAL output

Noise: -75dBV at Max Volume (99)

Crosstalk: -82dB

Gain: 20 dB Balanced Output ; 20 dB SE Output

Input Impedance: 25K ohms BAL and SE

Output Impedance: 10 ohms BAL, 25 ohms SE

Output Polarity: Balanced: Non-inverting ; SE: Inverting

Power Requirements: 120VAC 60Hz 35W Maximum

Standby: 4.2W

Dimensions:

Width: 19" (48.26 cm)

Height: 7” (17.78 cm)

Depth: 17.5” (44.45 cm)

Weight: 33lbs (15kg) Net, 48lbs (21.8kg) Shipping
