Bryston - 9B³ - Modular Multi-Channel Power Amplifier

$9,995.00
$9,995.00
Color: Silver
Audio Output Channels: 3

To Purchase or Inquire about this product, please:

Demo and Pre-Owned units may be available.

Email Us
Brand: Bryston
Collections:

      The 9B³ is Bryston’s flexible high-performance multi-channel amplifier platform, designed for serious home theater and immersive audio systems that demand the same refinement, control, and reliability as the company’s legendary two-channel amplifiers. Built around Bryston’s Cubed Series technology and patented Salomie input stage circuitry, the 9B³ delivers exceptional clarity, dynamic authority, and low-noise performance across every channel configuration.

      What makes the 9B³ especially unique is its modular architecture. Available in configurable 3, 4, or 5 channel layouts, the amplifier can be expanded later as your system evolves, making it an ideal long-term centerpiece for high-end surround systems. Dialogue remains focused and natural, effects are rendered with precision and scale, and bass stays tight and controlled even during demanding cinematic passages.

      Its fully balanced architecture, convection-cooled chassis, and independent channel regulation all contribute to remarkable stability and long-term reliability. Whether used in dedicated theaters or premium multi-channel music systems, the 9B³ delivers the effortless, transparent presentation Bryston is known for.

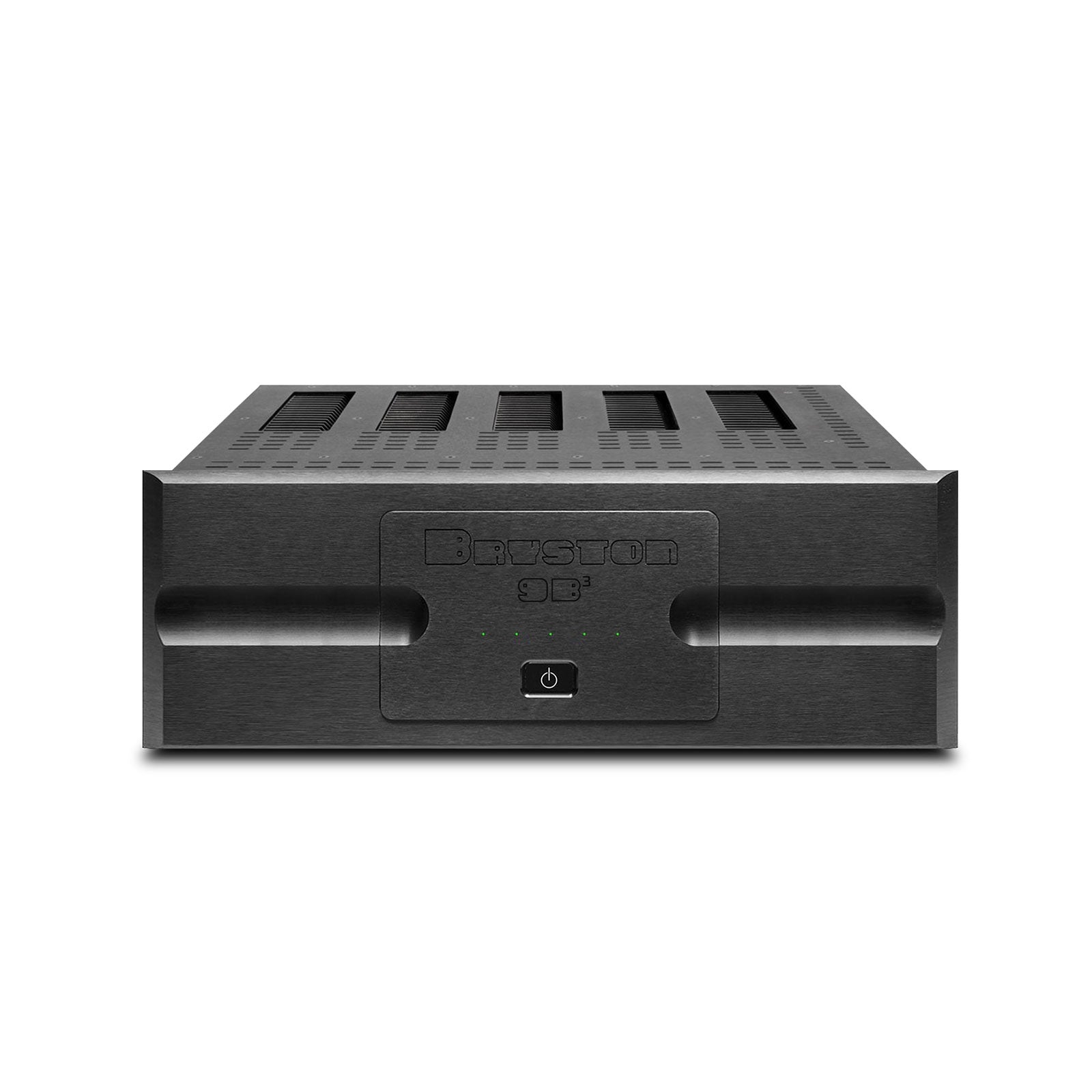

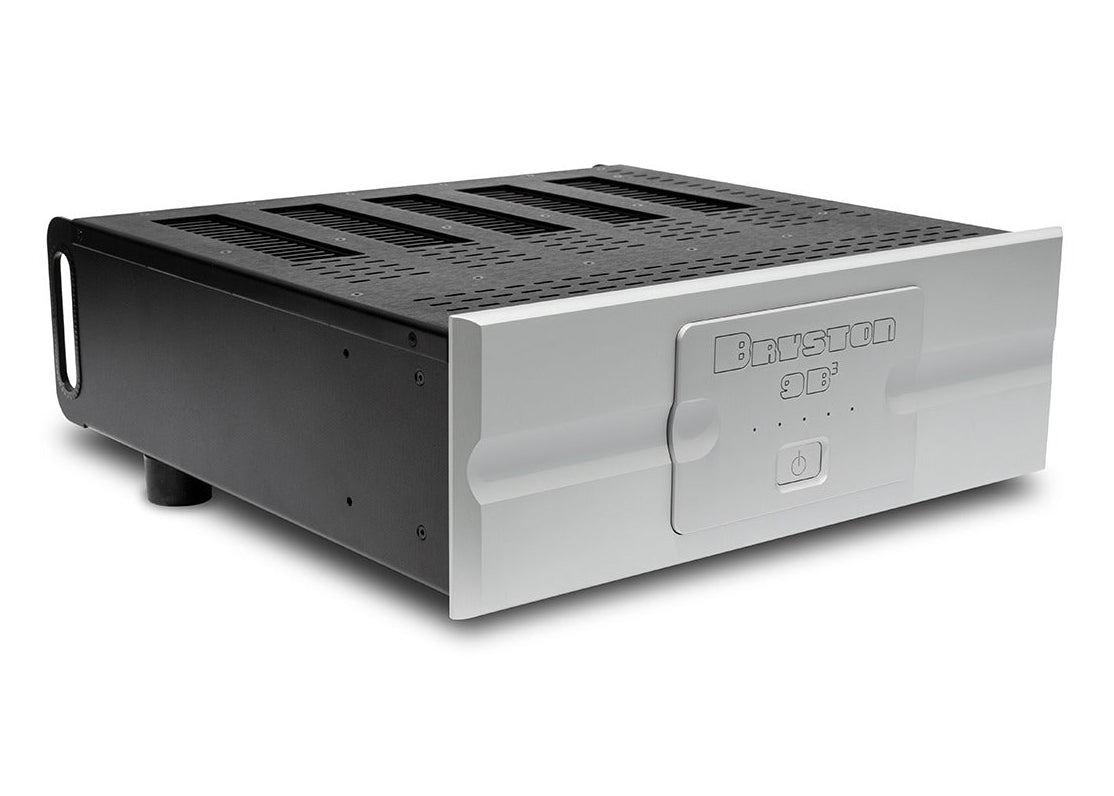

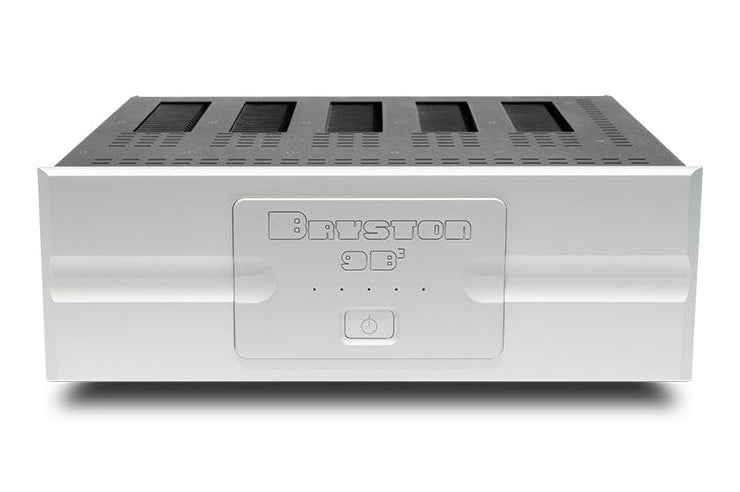

      Available in Silver or Black finishes.

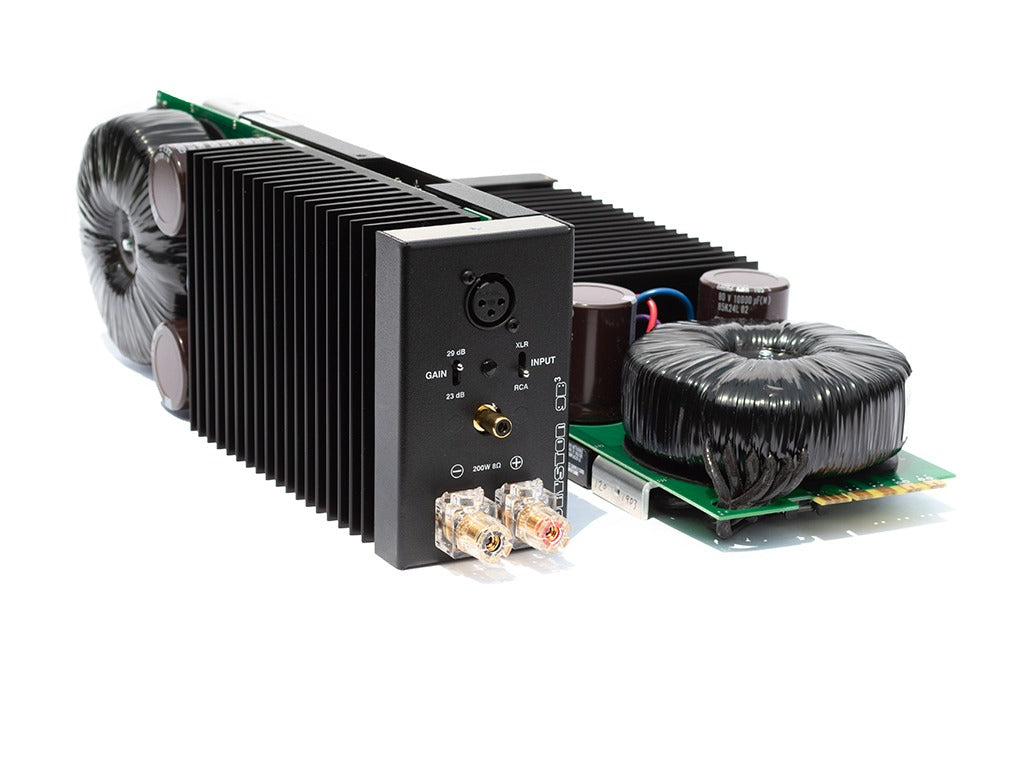

      Configurable 3, 4, or 5 channel architecture with field-upgradeable modular channel expansion.
      Additional faceplate and rack mount configuration options available.

      FEATURES

      • Modular Multi-Channel Power Amplifier Platform
      • Configurable 3, 4, or 5 Channel Architecture
      • Field Upgradeable Channel Expansion Design
      • Bryston Cubed Series Technology
      • Patented Salomie Input Stage Circuitry
      • Balanced XLR and Single-Ended RCA Inputs
      • User Selectable 23dB / 29dB Gain Configuration
      • Fully Convection Cooled Design
      • No Fans or Moving Parts
      • Machined and Anodized Aluminum Chassis
      • Regulated Power Supplies for Voltage Gain Stages
      • SoftStart Microprocessor Controlled Startup Circuit
      • DC Trigger Input for Automated Power Control
      • Independent Channel Power Supply Regulation
      • Ultra Low Noise and Distortion Design
      • Designed and Manufactured in Canada
      • Legendary 20 Year Bryston Warranty

      SPECIFICATIONS

      • Amplifier Type: Modular Multi-Channel Power Amplifier
      • Channel Configurations: 3 Channel / 4 Channel / 5 Channel
      • Class of Operation: Class AB
      • Power Output: 200W per Channel @ 8Ω / 300W per Channel @ 4Ω
      • THD + N: <0.005% (20Hz–20kHz)
      • Frequency Response: <1Hz – 100kHz (-3dB)
      • Noise:
        • RCA: -117dB
        • XLR: -119dB
      • Input Impedance:
        • Unbalanced: 7.5kΩ
        • Balanced: 5kΩ / Leg
      • Gain Settings: 23dB / 29dB Selectable
      • Slew Rate: >60V/µS
      • Damping Factor: >300 @ 20Hz (8Ω)

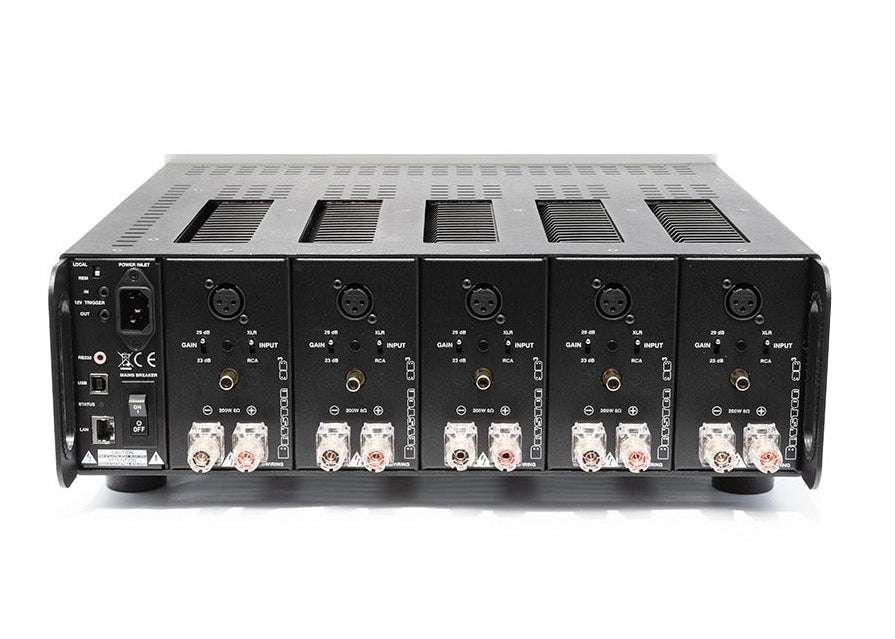

      • Inputs: Balanced XLR / Single-Ended RCA
      • Speaker Outputs: Multi-Channel Binding Posts
      • Cooling System: Fully Convection Cooled
      • Standby Power Consumption: <500mW
      • Dimensions: 17” or 19”W x 8.25”H x 17”D
      • Weight: Approx. 80 lbs / 36 kg (5 Channel Configuration)
      • Faceplate Options: Silver or Black
      • Manufacturing: Designed and Manufactured in Canada
