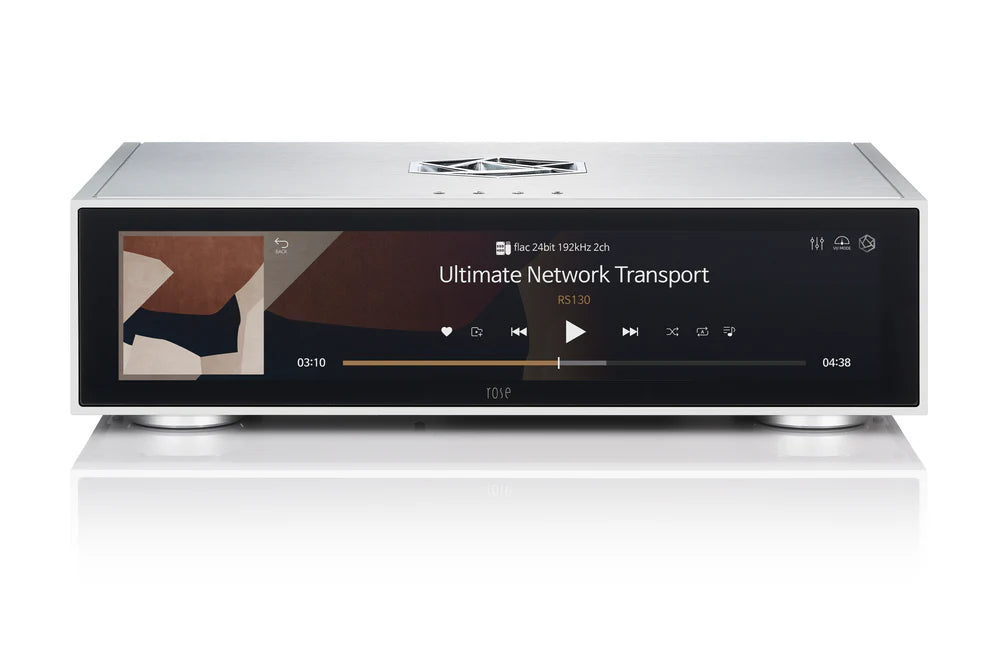

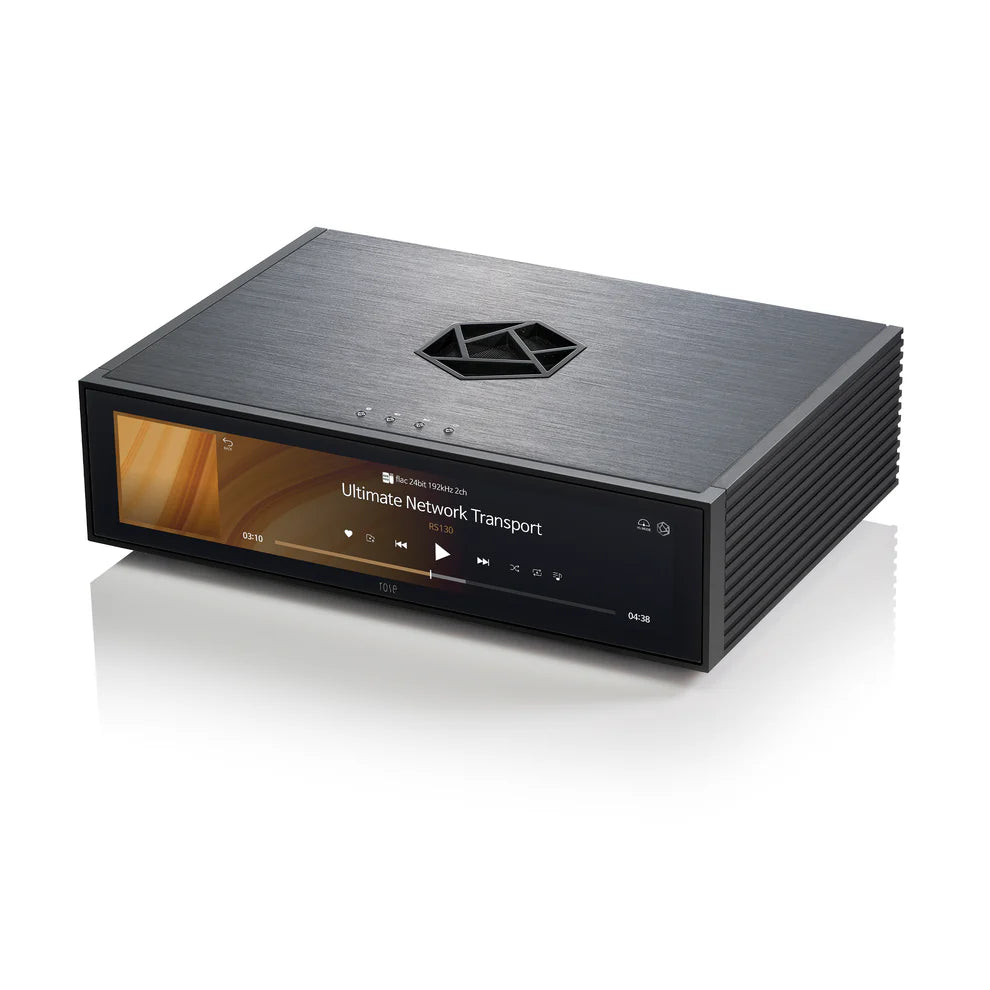

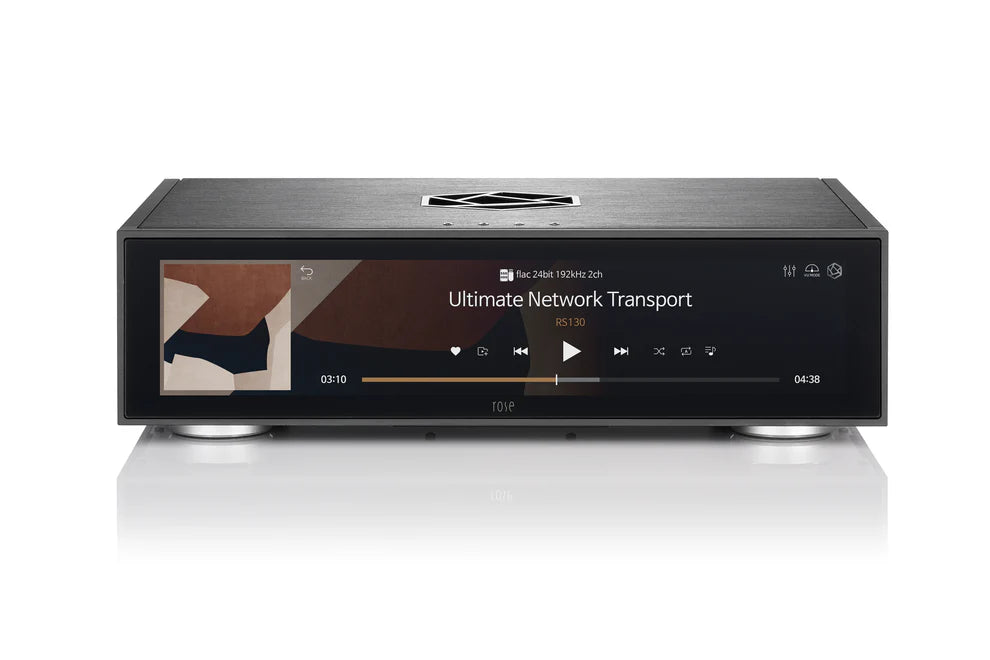

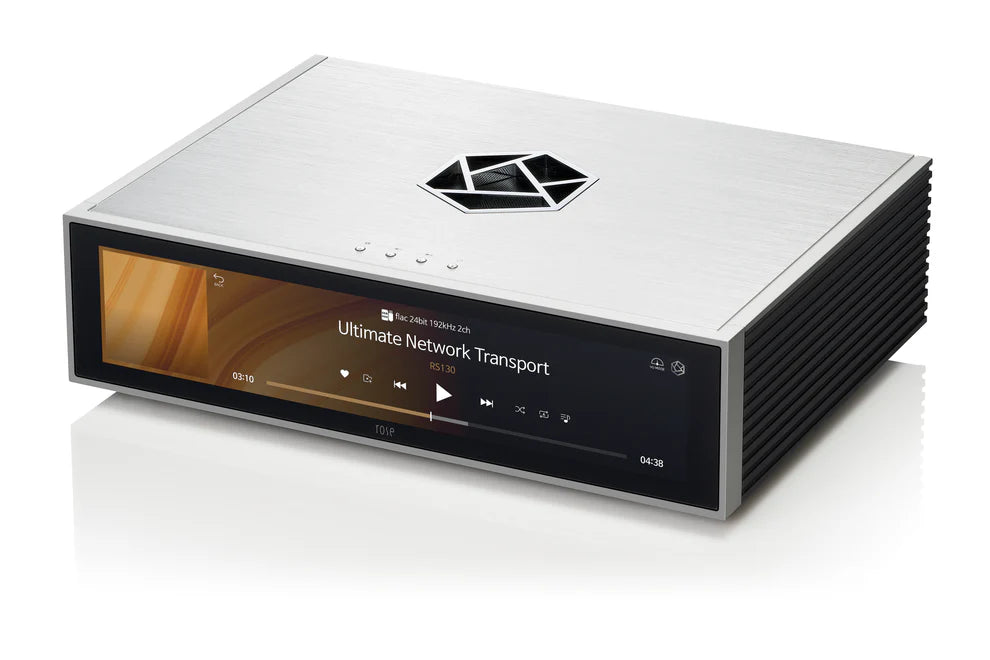

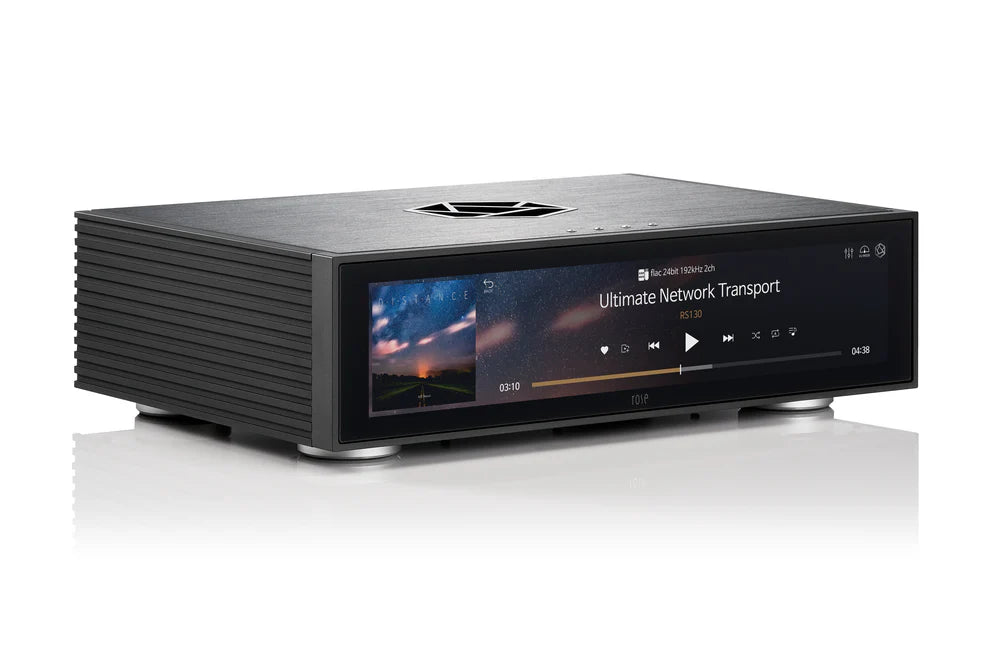

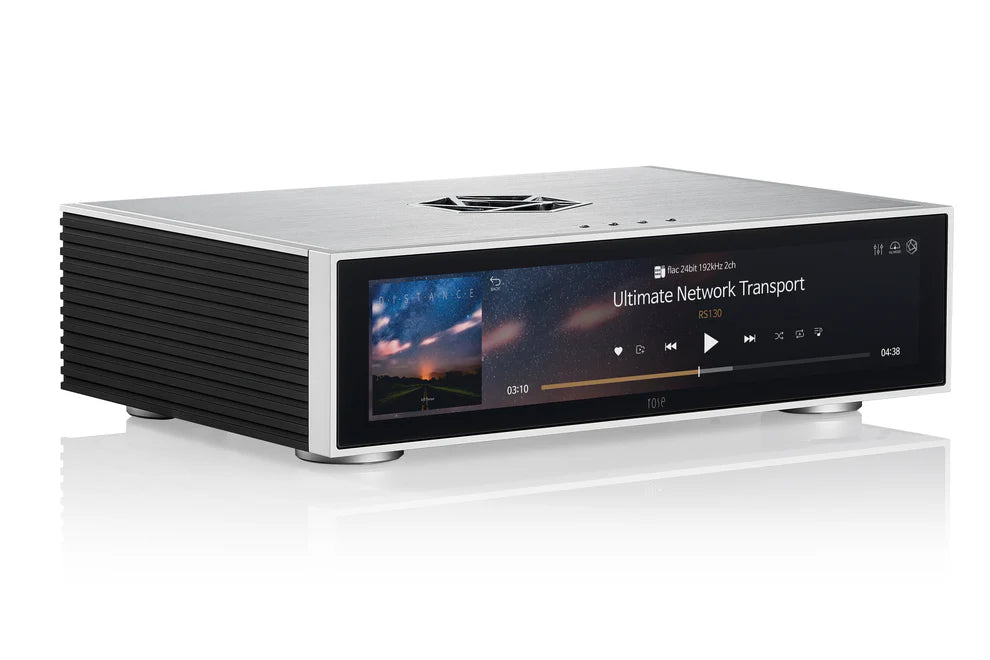

HiFi Rose - RS130 - Network Transport

The HiFi Rose RS130 Network Transport is a reference-grade digital transport engineered to deliver ultra-high-performance streaming playback for state-of-the-art external DAC systems. Designed around a dedicated transport-only architecture, the RS130 combines advanced processing capability, precision clock synchronization, and extensive digital connectivity for uncompromising signal integrity and playback accuracy.

Built on a customized Android 7.1 platform, the RS130 integrates HiFi Rose’s advanced streaming ecosystem with extensive support for high-resolution music services, local media playback, and multimedia functionality. A large-format touchscreen interface provides intuitive operation while advanced networking and storage connectivity enable seamless integration into sophisticated digital audio environments.

The RS130 also incorporates professional-grade clock synchronization capability, AES/EBU and I²S HDMI digital outputs, SFP Ethernet connectivity, and expandable NVMe/SATA storage support for demanding audiophile applications. Precision-machined construction and comprehensive remote-control functionality establish the RS130 as a flagship-level digital transport platform for modern reference systems.

Available Configurations & Options:
Black or Silver finishes

FEATURES

• Reference network transport platform
• Customized Android 7.1 operating system
• Dual-Core Cortex-A72 and Quad-Core Cortex-A53 CPU architecture
• ARM Mali-T860 MP4 Quad-Core GPU
• LPDDR4 4GB memory architecture
• 256GB NVMe SSD cache storage
• AirPlay, DLNA, Roon Ready, Spotify Connect, and Bluetooth streaming support
• Support for TIDAL, Qobuz, Apple Music, Bugs, ROSE Tube, Internet Radio, and ROSE Podcast
• PCM playback up to 768kHz
• Native DSD64 through DSD512 playback support
• MQA audio support
• Vibrant 15.4" TFT LCD & Capacitive Touch Screen (eDP)
• AES/EBU digital output
• HDMI I2S digital audio output
• Optical and coaxial digital outputs
• HDMI 2.0 video output up to 4K/60Hz
• 10MHz external clock synchronization input support
• SFP Ethernet network connectivity
• USB dual-band WiFi dongle support
• Bluetooth 4.2 support via USB dongle
• USB 3.0 fiber connectivity
• ROSE Connect app support for Android, iOS, and PC
• IR and Bluetooth remote control support
• Designed and manufactured in South Korea

SPECIFICATIONS

Type: Network Transport
Operating System: Customized Android 7.1
CPU: Dual-Core Cortex-A72 and Quad-Core Cortex-A53 with separate NEON coprocessor
GPU: ARM Mali-T860 MP4 Quad-Core GPU
Memory: LPDDR4 4GB
Cache Storage: NVMe SSD 256GB
Display: 15.4" TFT LCD & Capacitive Touch Screen (eDP)
Network: SFP Ethernet 10/100/1000 BASE-T (SFP COPPER Type)
WiFi: 802.11ac Dualband USB Wireless LAN Card (Dongle)
Bluetooth: V4.2 (USB Dongle)
Supported Streaming Platforms: AirPlay, DLNA, Roon Ready, Spotify Connect, Bluetooth
Supported Streaming Services: TIDAL, Qobuz, Apple Music, Bugs, ROSE Tube, Internet Radio, ROSE Podcast

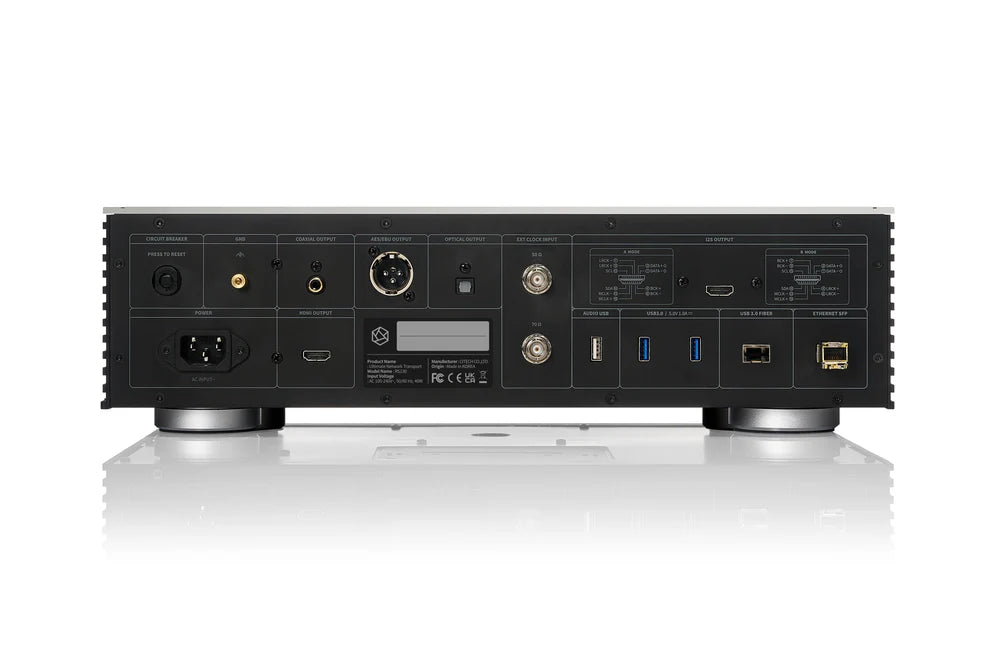

Audio Outputs: Optical x1, Coaxial x1, AES/EBU OUT x1, HDMI I2S OUT x1
Video Output: HDMI 2.0 x1 (up to 3840 × 2160 / 60Hz)
File System: NTFS / exFAT / FAT32
Network Protocol: SMBv2 / FTP / WebDav
Storage Interface: USB3.0 x2, SATA x1, USB 3.0 Fiber
Clock Sync Input: 50Ω BNC x1, 75Ω BNC x1, Input Frequency 10MHz
Audio Codec Support: MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC
PCM Support: 8kHz~768kHz (8/16/24/32bit per Sample)
DSD Support: Native DSD64 / DSD128 / DSD256 / DSD512
Video Codec Support: ASF, AVI, MKV, MP4, WMV, H.264/AVC, H.265/HEVC, VP9, MPEG-1, MPEG-2, MPEG-4, VC-1
Input Voltage: AC100-240V 50/60Hz
Circuit Breaker: 6A Thermal Circuit Breaker
Software Update: Internet, USB OTA, ROSE Store
Remote App: ROSE Connect (Android, iOS, PC)
Remote Control: IR Remote Control, Bluetooth Remote Control
Dimensions: 430(W) × 317(D) × 125(H) mm
Weight: 12kg
Included Accessories: Power Cord, Remote Controller, Manual, SSD Screws, SFP RJ45 Copper Transceiver Module, WiFi/BT Dongle
