Lumin L2 Music Library & Network Switch (0TB)

The Lumin L2 is a music server and network switch designed for Lumin owners who want to store and serve their own music collection. Available with no drives, 4TB, or 8TB storage, it requires no setup—just add music by USB or network and it serves automatically. Its built-in 4-port audiophile network switch includes two optical fiber SFP ports and two RJ45 ports for cleaner, simpler connections. With UPnP/OpenHome support, SMB transfers, high-resolution PCM/DSD playback, low-noise power design, and a thick CNC aluminum chassis, the L2 is a quiet, refined storage solution for high-end streaming systems.

Technical Specifications:

Internal Storage:
No drives, 4TB (2x 2TB) or 8TB (2x 4TB) 2.5" SSD

Streaming Protocol:
UPnP AV (OpenHome)
JPLAY Certified

Supported Audio File Formats:
DSD Lossless:
DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless:
FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio:
MP3

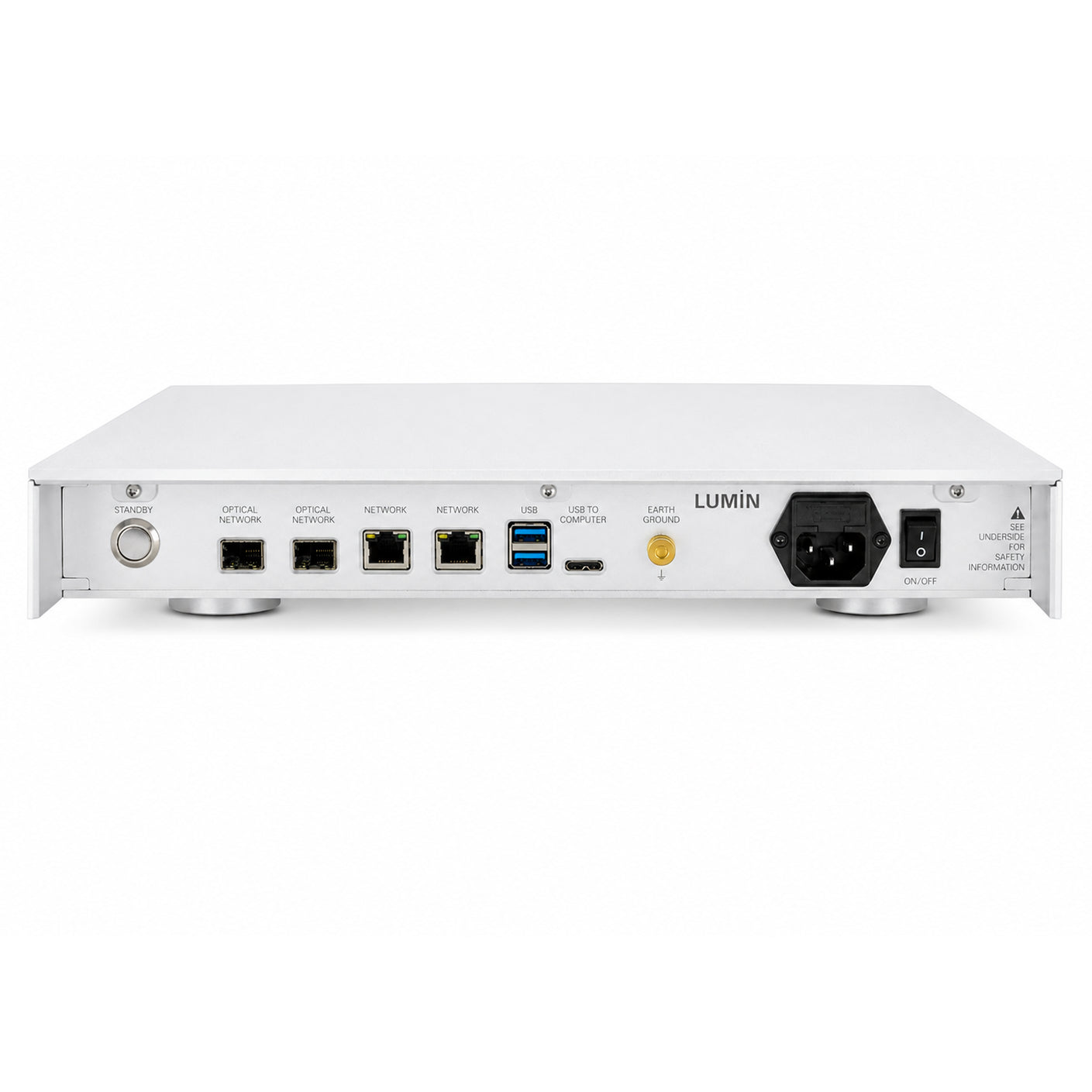

Connections:
USB 3.0 Micro Type B Slave for connection to computer*
2x Gigabit Ethernet Network (1000BASE-T) RJ45
2x Industry-standard Gigabit SFP
2x USB 3.0 Type A reserved for future use

Power Supply:
Internal 100–240V AC auto-ranging
Low-noise
Shielded power supply compartment for reduced interference with delicate electronics

Physical:

Finish:
Black anodised aluminium
Raw anodised aluminium
Dimensions:
350mm (W), 350mm (D), 60.5mm (H), 6kg
