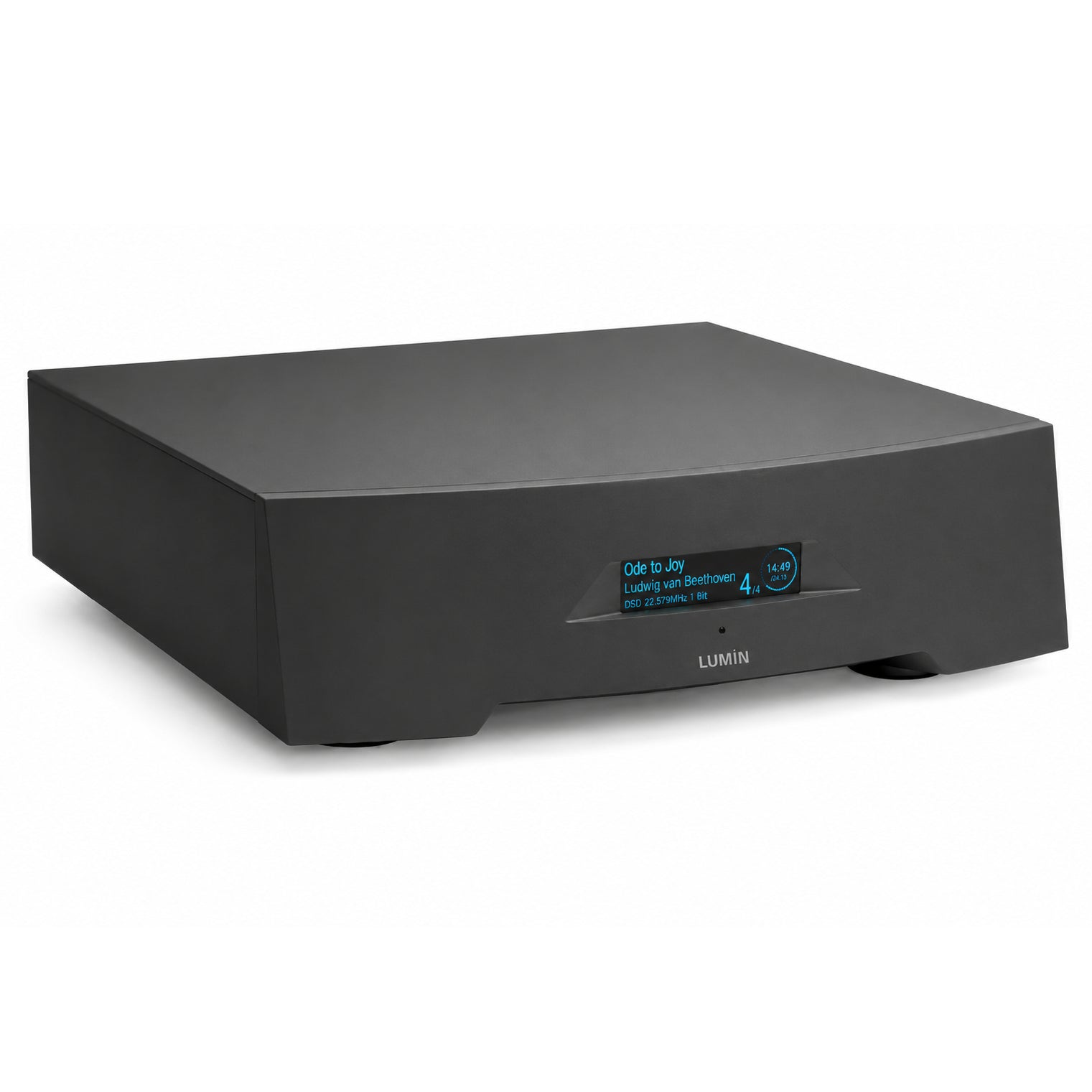

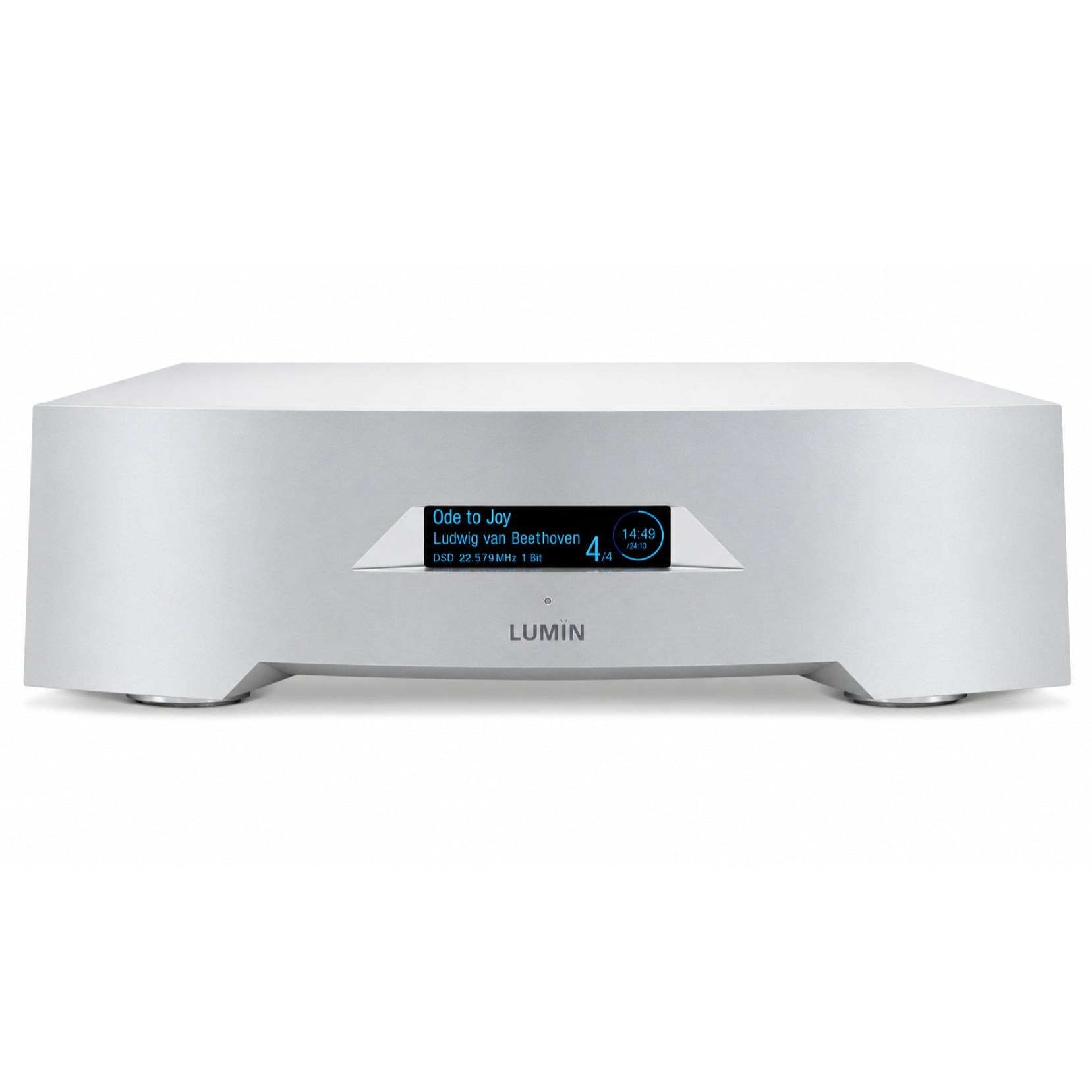

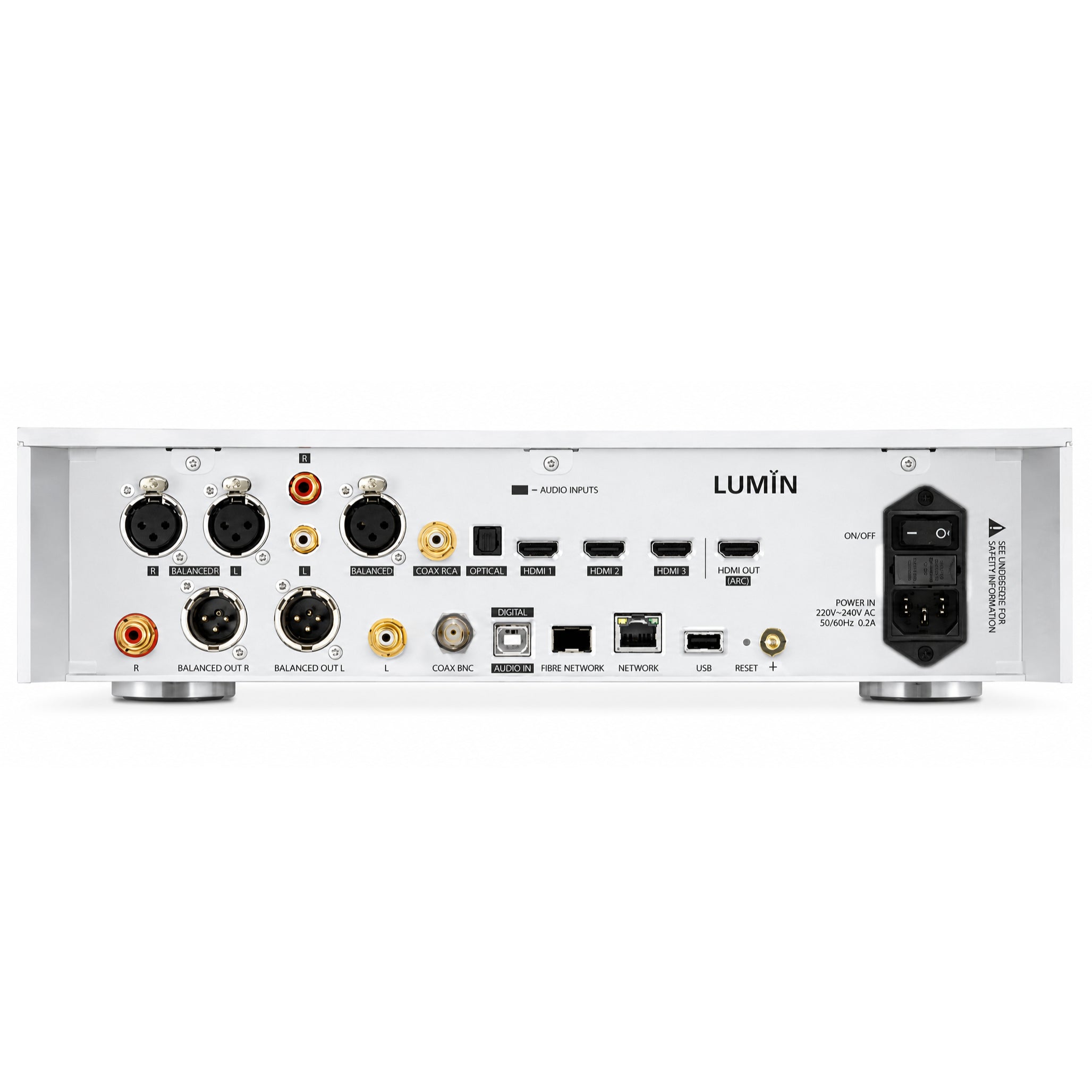

Lumin P1 System Hub

The Lumin P1 is a premium network player, DAC, preamp, and HDMI hub in one elegant component. It offers extensive digital, analog, USB, Ethernet, and HDMI connectivity, including 4K passthrough and ARC-enabled HDMI outputs. Supporting Roon, Lumin’s mobile app, MQA, PCM up to 384kHz, and DSD512, it is built for high-resolution streaming and playback. Dual ES9028PRO DAC chips, precision clocking, Lundahl output transformers, and a shielded linear power supply contribute to refined sound quality. Its 32-bit Leedh volume control preserves detail while providing precise, high-quality digital volume adjustment.

Technical Specifications:

Network playback:
Up to DSD512
Up to 384 kHz, 16–32-bit, Stereo
MQA Full Decoding

Upsampling rates & bit depths:
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files

Digital Input:
USB:
USB Audio Class 2 Compatible
WINDOWS 10 (Release 1703 or above) / Mac OSX or above
DoP 128 support
PCM 44.1–384 kHz, 16 / 32-bit, Stereo
AES/OPTICAL/SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)
HDMI x3:
PCM 2.0 Audio support
4K Video Passthrough

Digital Output:
USB:
Native DSD512 support
PCM 44.1–384 kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)
HDMI x1:(HDMI Passthrough and ARC support)
PCM 2.0 Audio support
4K Video Passthrough
ARC (Audio Return Channel) support
ARC CEC volume and mute control

Analogue Input:
RCA Unbalanced x1
XLR Balanced x1

Analog Output:
Dual ESS SABRE32 ES9028Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution

Optical Network:
Industry-standard Gigabit SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

Power Supply:
Internal dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator

Physical:
Finish:
Black anodised aluminium
Raw aluminium
Lumin (solid aluminium chassis):
350mm (W), 380mm (D), 107mm (H), 12kg
