LUMIN - U1 Mini - Network Music Transport / Streamer - Black

The LUMIN U1 Mini is a dedicated high-resolution network music transport designed for listeners who already own a quality external DAC and want to add LUMIN’s highly regarded streaming platform to their system. Supporting PCM up to 384kHz and DSD256, the U1 Mini provides an exceptionally flexible digital front end for both locally stored music and today’s major streaming services.

Its comprehensive digital output stage includes USB, AES/EBU, BNC coaxial, RCA coaxial, and optical connections, allowing the U1 Mini to integrate with a wide variety of DACs. It also offers sophisticated digital processing with selectable DSD128 and PCM 384kHz upsampling, while Gigabit Ethernet provides a stable high-bandwidth connection for network playback.

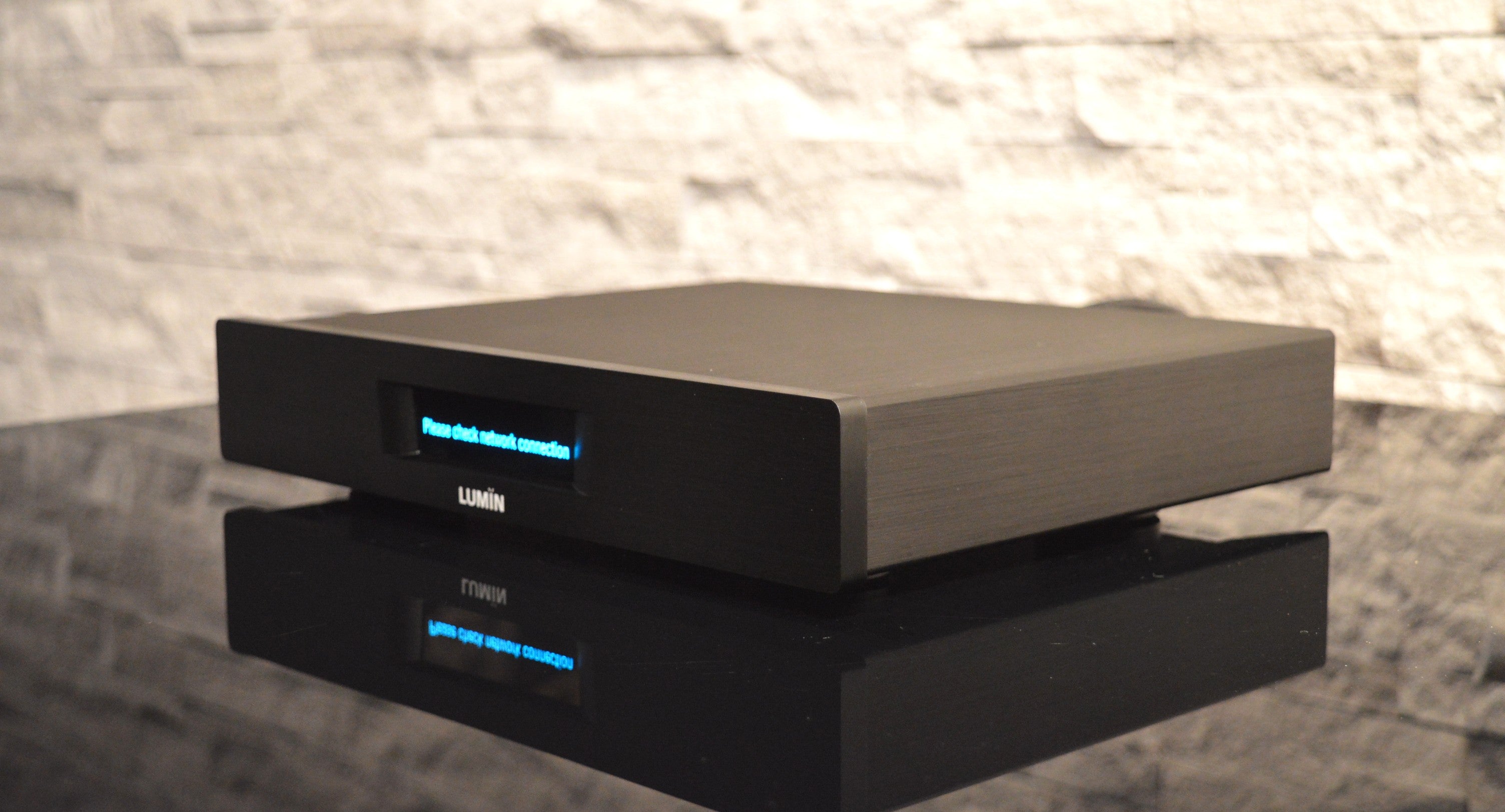

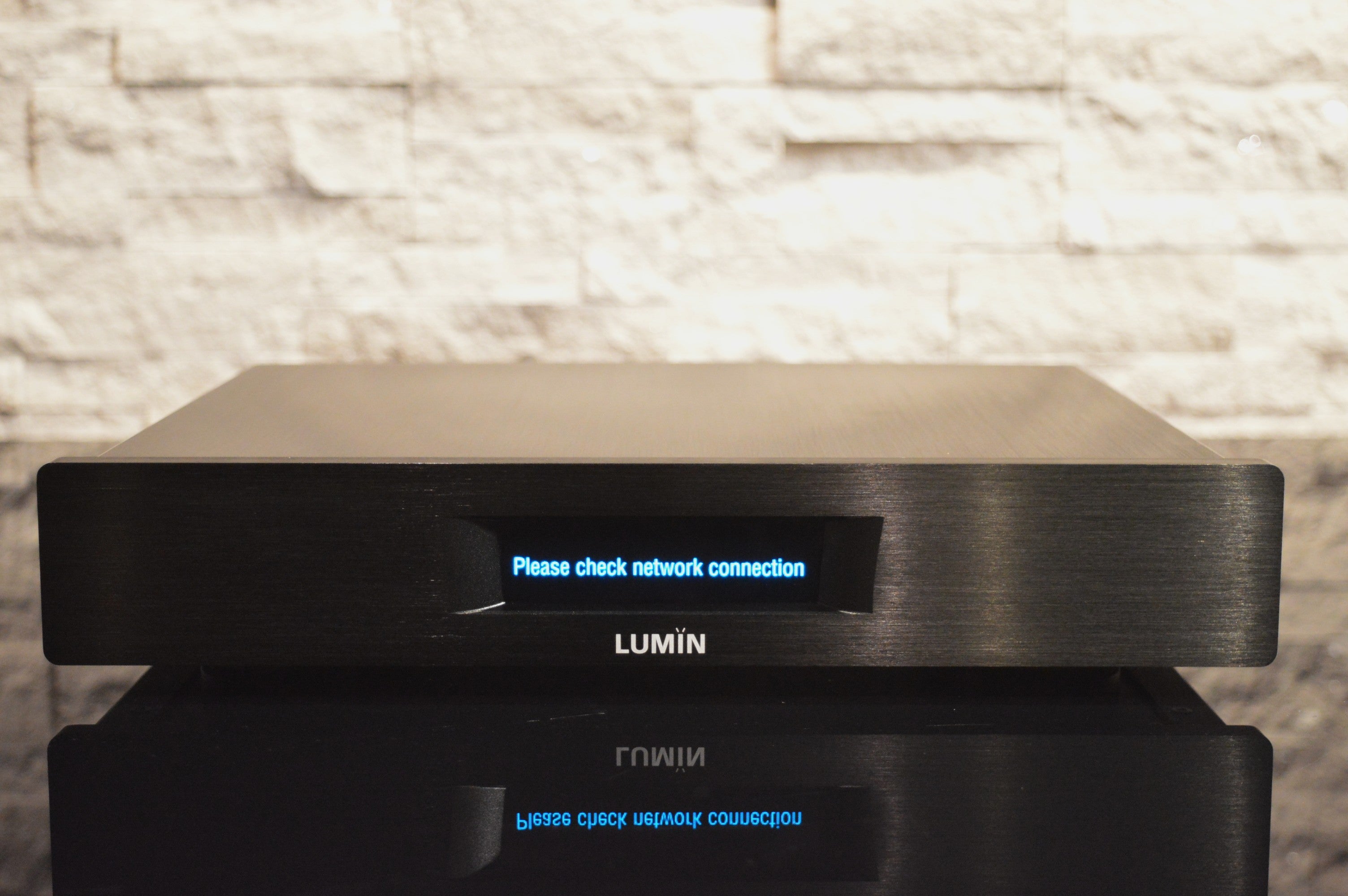

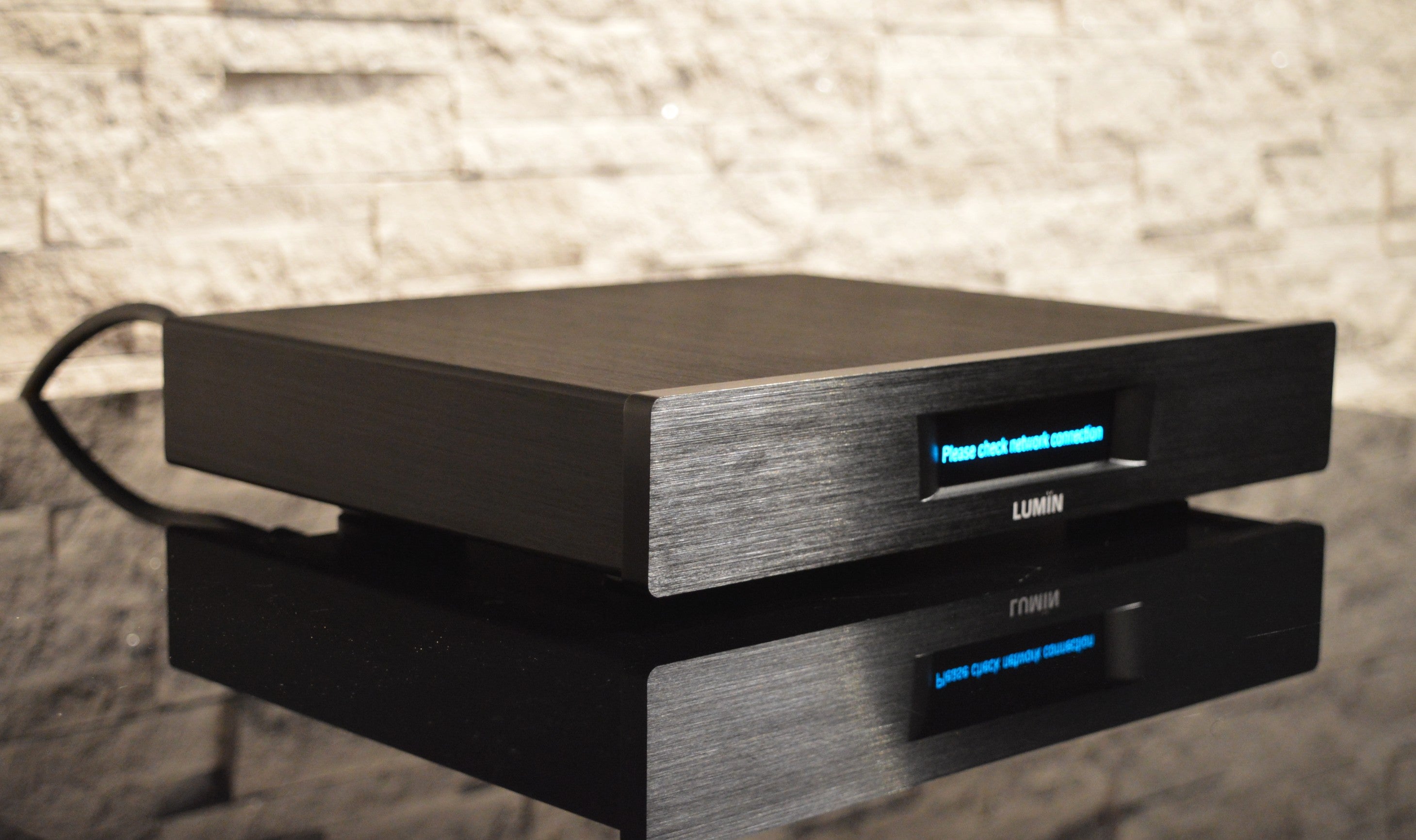

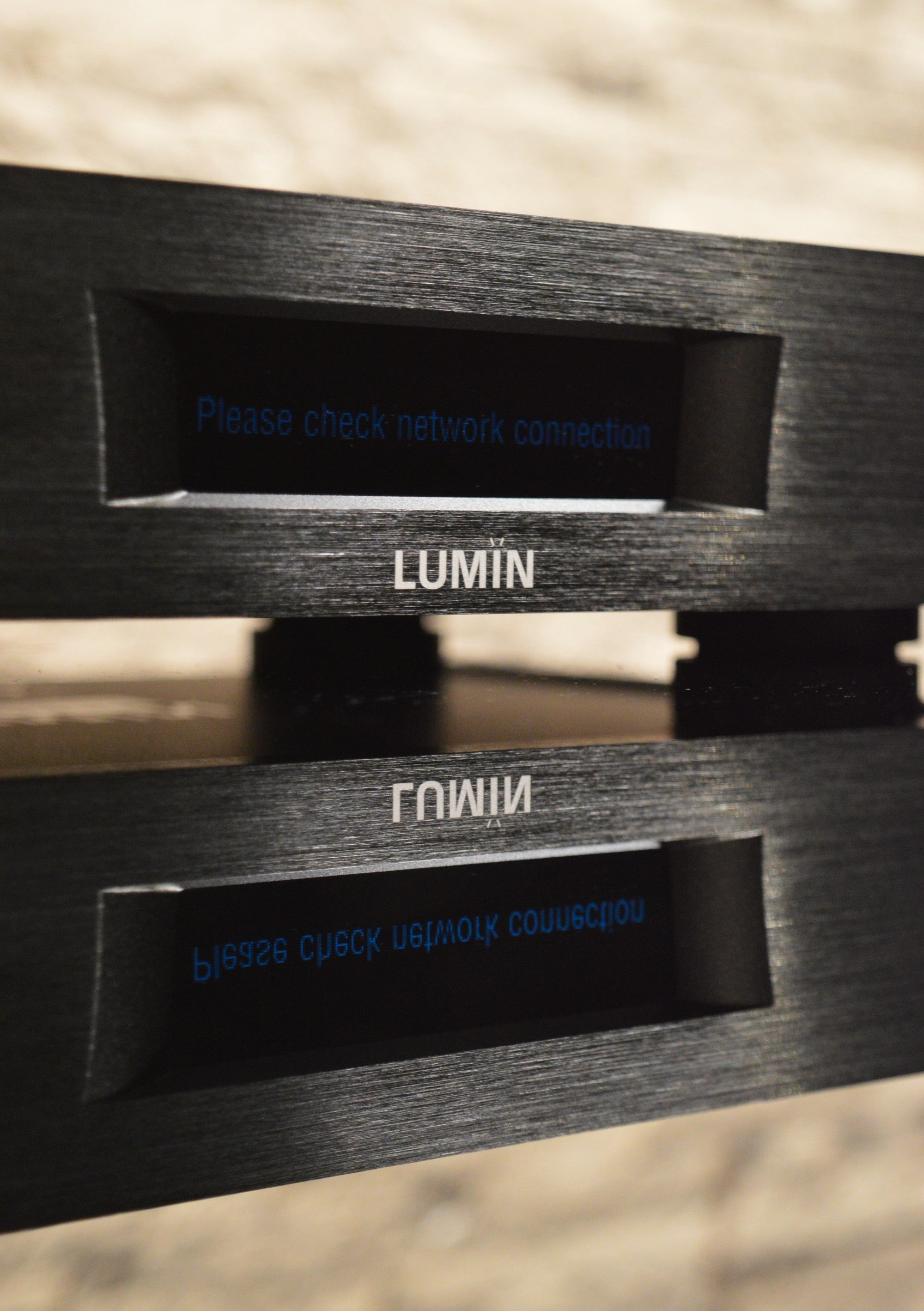

This LUMIN U1 Mini features the black anodized aluminum finish and is in excellent pre-owned condition with minimal signs of previous use. It presents exceptionally well and is an excellent choice for building a high-quality streaming system around your preferred external DAC.

FEATURES:

• Dedicated high-resolution network music transport for use with an external DAC
• Selectable DSD128 and PCM 384kHz upsampling

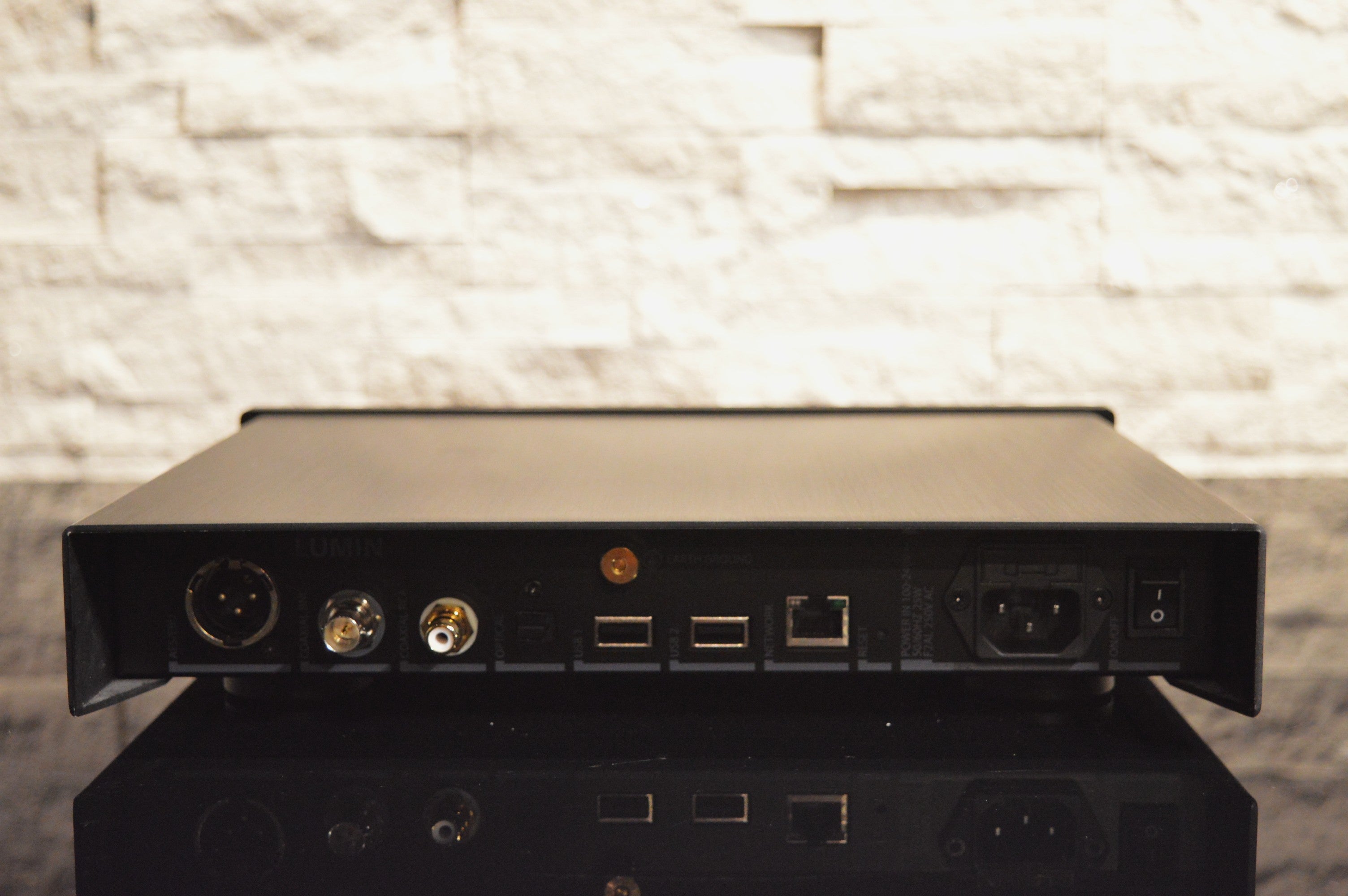

• Comprehensive USB, AES/EBU, BNC, RCA coaxial, and optical digital outputs
• Roon Ready for integration with Roon-based music systems
• Spotify Connect, TIDAL Connect, and Apple AirPlay support
• Integrated TIDAL, Qobuz, TuneIn Radio, and MQA support through the LUMIN platform
• UPnP AV with OpenHome audio streaming extension
• Gapless playback and on-device playlist support
• High-resolution artwork caching and advanced music metadata handling
• LUMIN control app support for iOS and Android devices

AUDIO & FILE SUPPORT:

• DSD Support: Up to DSD256, 11.2MHz, 1-bit stereo
• PCM Support: Up to 384kHz, 16–32-bit stereo
• Upsampling: DSD128 or PCM 384kHz upsampling options for audio files
• Supported Formats: MQA, DSF, DFF, DoP, FLAC, Apple Lossless (ALAC), WAV, AIFF, MP3, AAC

DIGITAL OUTPUTS:

• USB Audio: DSD256 up to 11.2MHz, 1-bit stereo
• USB PCM: 44.1–384kHz, 16–32-bit stereo
• AES/EBU: DSD 2.8MHz via DoP; PCM 44.1–192kHz, 16–24-bit
• BNC Coaxial: DSD 2.8MHz via DoP; PCM 44.1–192kHz, 16–24-bit
• RCA Coaxial: DSD 2.8MHz via DoP; PCM 44.1–192kHz, 16–24-bit
• Optical: DSD 2.8MHz via DoP; PCM 44.1–192kHz, 16–24-bit

CONNECTIVITY & STREAMING:

• Network: Gigabit Ethernet RJ45 (1000Base-T)
• USB: 2 ports for compatible flash drives and external hard drives
• Network Protocol: UPnP AV with OpenHome audio streaming extension
• Roon: Roon Ready
• Streaming: Spotify Connect, TIDAL Connect, Apple AirPlay
• Native App Services: TIDAL, Qobuz, TuneIn Radio, MQA

APP & CONTROL:

• Control: LUMIN app
• Supported Platforms: iOS and Android
• Library Features: High-resolution artwork caching, multiple tag handling, and composer tag support
• Playback Features: On-device playlists and gapless playback

POWER & PHYSICAL SPECIFICATIONS:

• Power Supply: Internal shielded 100–240V AC auto-ranging power supply
• AC Connection: Standard IEC input
• Chassis: Brushed aluminum
• Finish: Black anodized aluminum
• Dimensions (W x D x H): 300 x 244 x 60 mm (11.8 x 9.6 x 2.4 in.)
• Unit Weight: 2.5 kg (5.5 lbs.)
• Packaged Weight: 4.5 kg (9.9 lbs.)

CONDITION:

Excellent pre-owned condition with minimal signs of previous use. The unit is clean and presents exceptionally well. Please review all photos carefully for the exact cosmetic condition and everything included.
