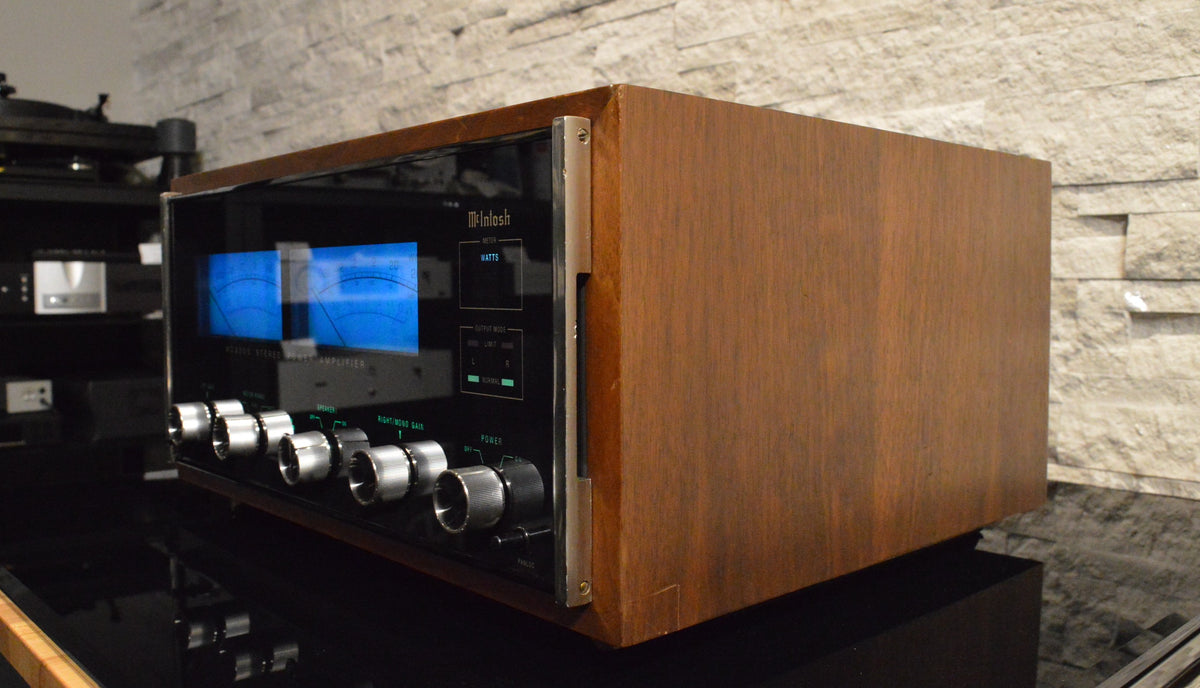

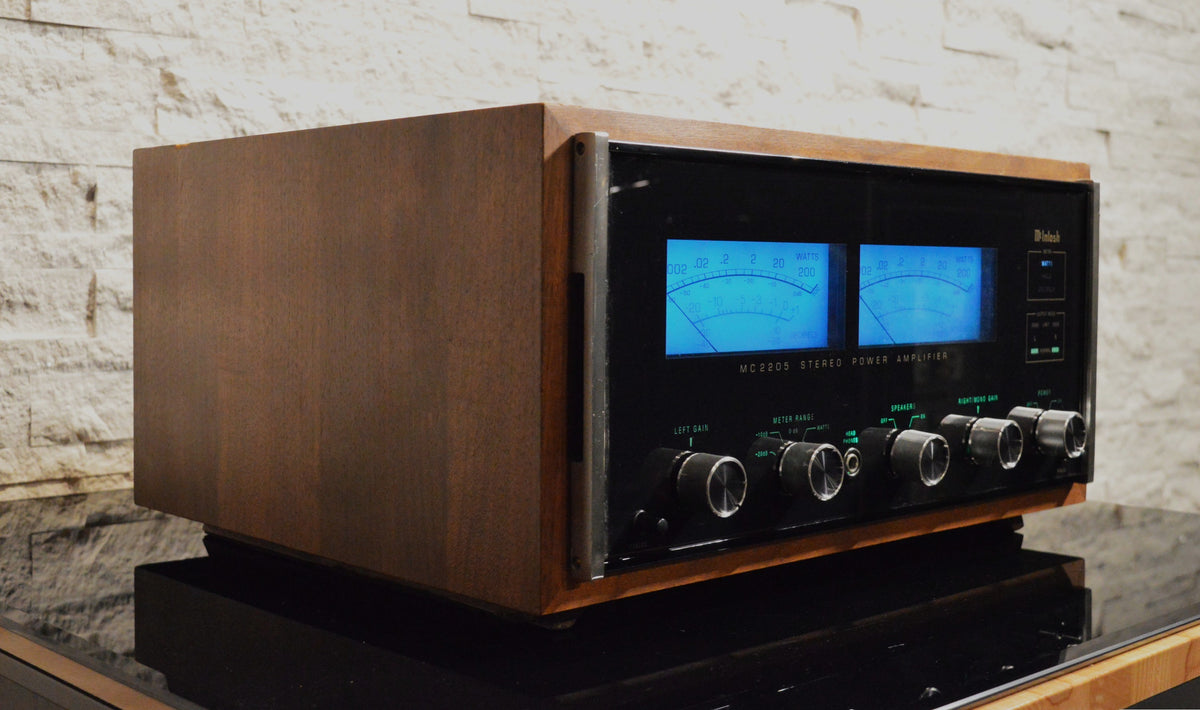

McIntosh - MC2205 - Stereo Power Amplifier - Serviced

The McIntosh MC2205 is a classic solid-state stereo power amplifier from one of McIntosh's most recognizable eras. Delivering 200 watts per channel in stereo, the MC2205 uses McIntosh Autoformers to provide its rated output across a wide range of speaker impedances. It can also be configured for mono operation, delivering 400 watts of continuous power.

The MC2205 was the first McIntosh amplifier to incorporate the company's renowned Power Guard circuitry, designed to prevent amplifier clipping while allowing the amplifier to deliver its maximum usable power. It also features Sentry Monitor protection, illuminated dual power-output meters, selectable input sensitivity, independent gain controls, and the unmistakable McIntosh glass front panel.

This MC2205 has been professionally serviced by an authorized McIntosh service center. All lamps were replaced with equivalent original parts, all potentiometers, switches, and connections were cleaned, and critical operating points and components were inspected and replaced where necessary. A new speaker selector switch was also installed. The amplifier bias was properly set and the unit was bench tested under load following service. It is ready to be put back into service and enjoyed for years to come.

NOTE: This package in total exceeds 100lbs and will be shipped via freight, hence the high shipping cost.

FEATURES:

• Classic McIntosh solid-state stereo power amplifier
• McIntosh Autoformer-coupled output design
• Power Guard circuitry designed to prevent amplifier clipping
• Sentry Monitor output transistor protection
• Illuminated dual power-output meters
• Selectable stereo or mono operation
• Independent left and right/mono gain controls
• Selectable input sensitivity
• Front-panel speaker On/Off control
• Front-panel headphone output

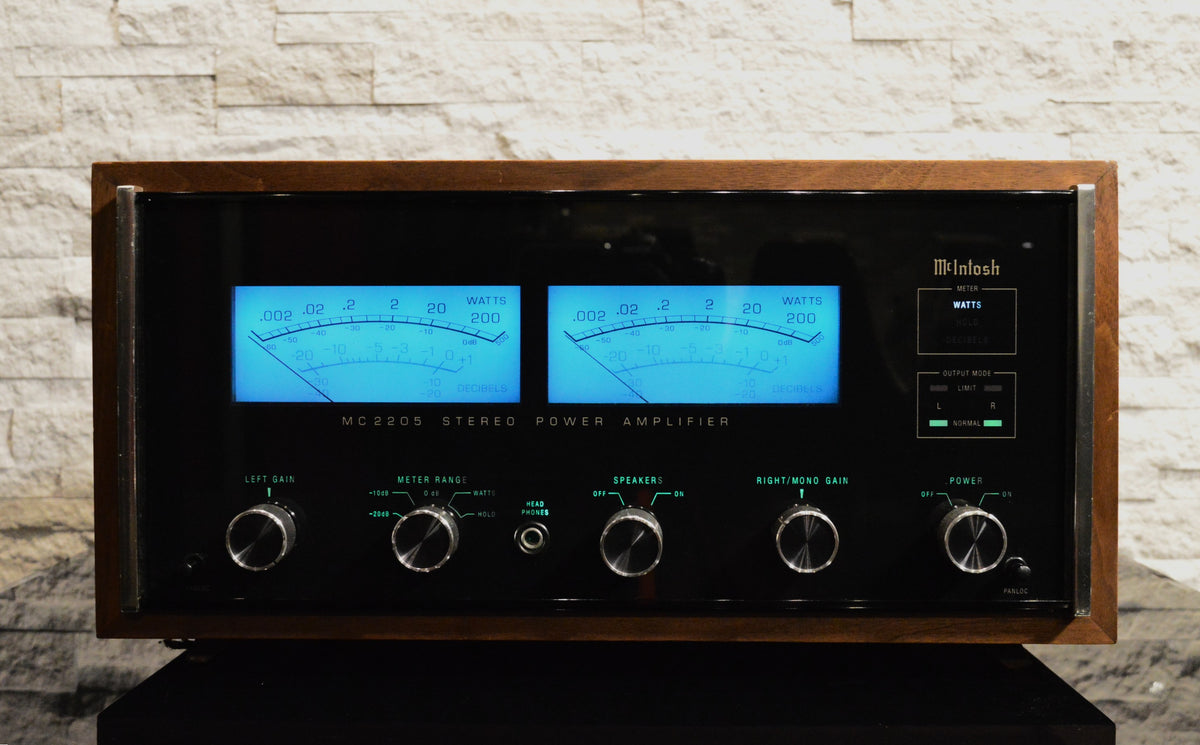

• Classic McIntosh glass front panel
• PANLOC mounting system

POWER & AUDIO PERFORMANCE:

• Stereo Power Output: 200 Watts Per Channel Continuous
• Stereo Load Impedance: 1, 2, 4 or 8 Ohms
• Mono Power Output: 400 Watts Continuous
• Mono Load Impedance: 0.5, 1, 2 or 4 Ohms
• Total Harmonic Distortion: Less Than 0.1% from 250mW to Rated Output, 20Hz–20kHz
• Intermodulation Distortion: Less Than 0.1%
• Frequency Response at Rated Output: 20Hz–20kHz, +0 / -0.25dB
• Frequency Response at 1 Watt: 10Hz–100kHz, +0 / -3dB
• Signal-to-Noise Ratio: 95dB or Greater Below Rated Output
• Damping Factor: 16 at 1, 4 and 8 Ohms; 50 at 2 Ohms

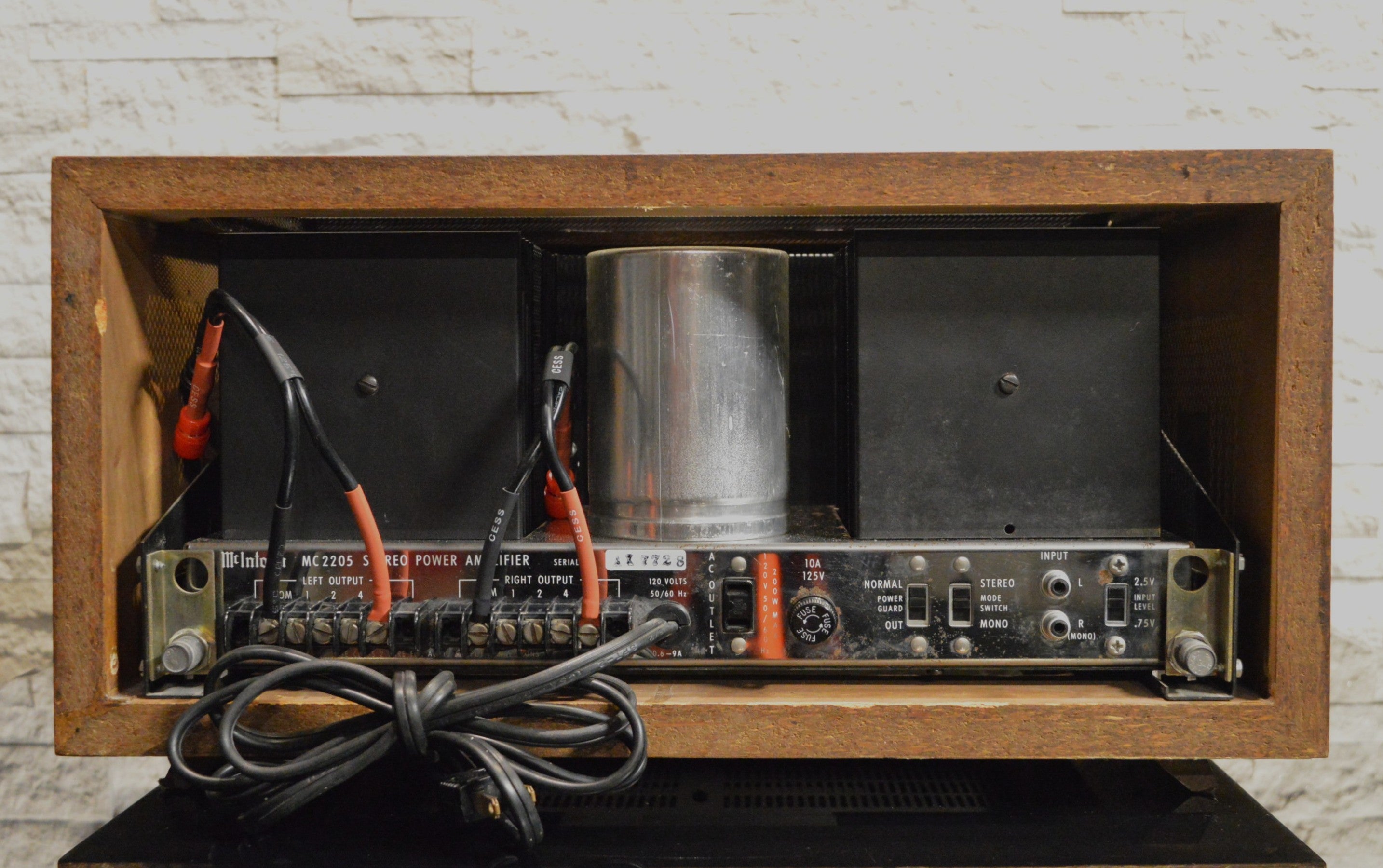

INPUTS & OUTPUTS:

• Input Sensitivity: Switchable 0.75V / 2.5V for Rated Output
• Input Impedance: 100k Ohms
• Audio Inputs: Stereo RCA
• Speaker Outputs: Rear Output Barrier Strips
• Headphone Output: Front-Panel Low-Impedance Headphone Jack
• Operating Modes: Stereo / Mono
• Auxiliary Power: Unswitched Rear AC Outlet

CONTROLS & METERING:

• Gain Controls: Independent Left and Right/Mono

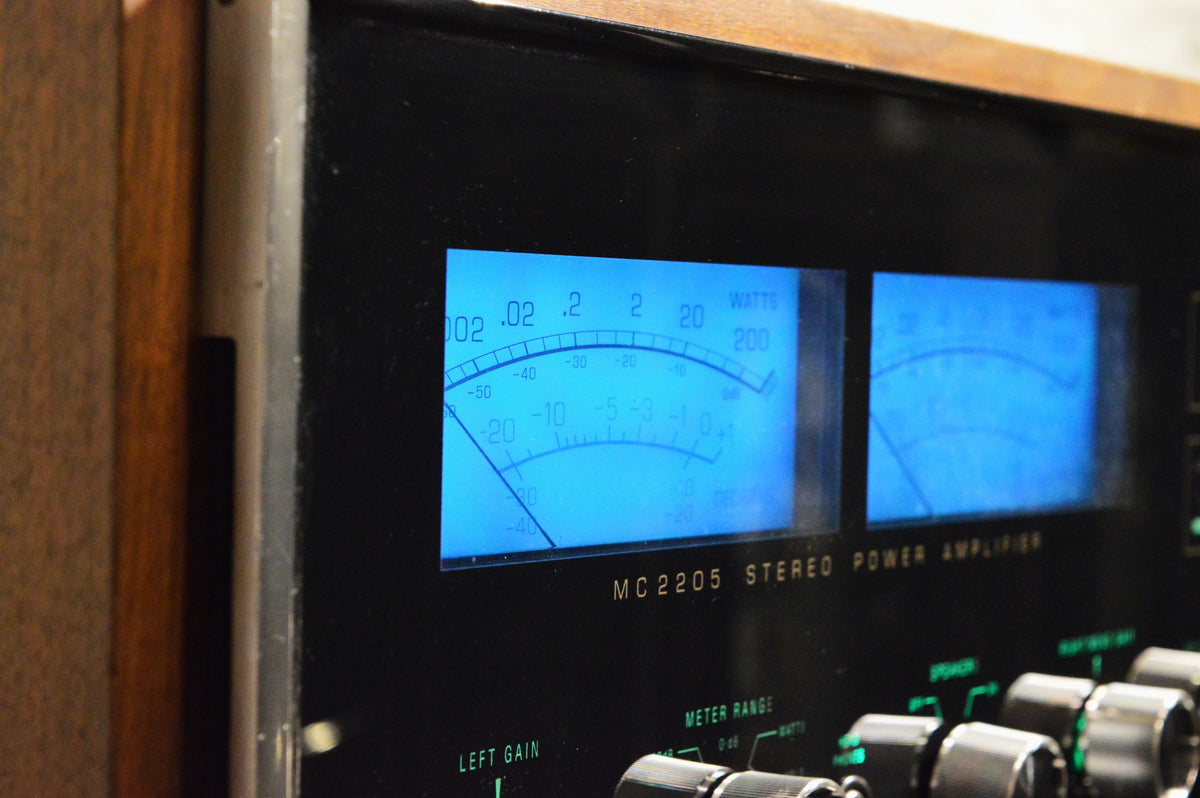

• Meter Display: Dual Illuminated Power Output Meters

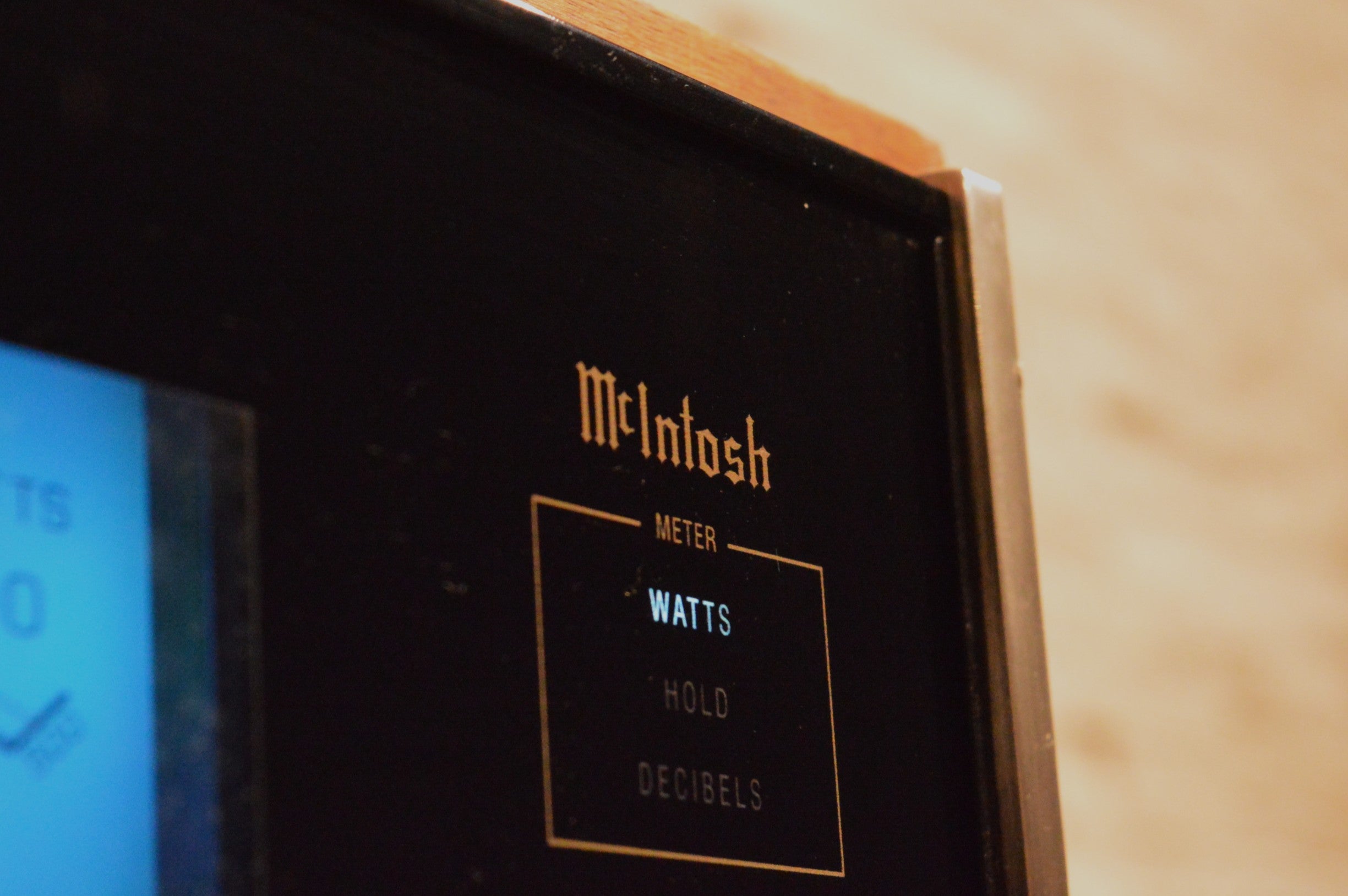

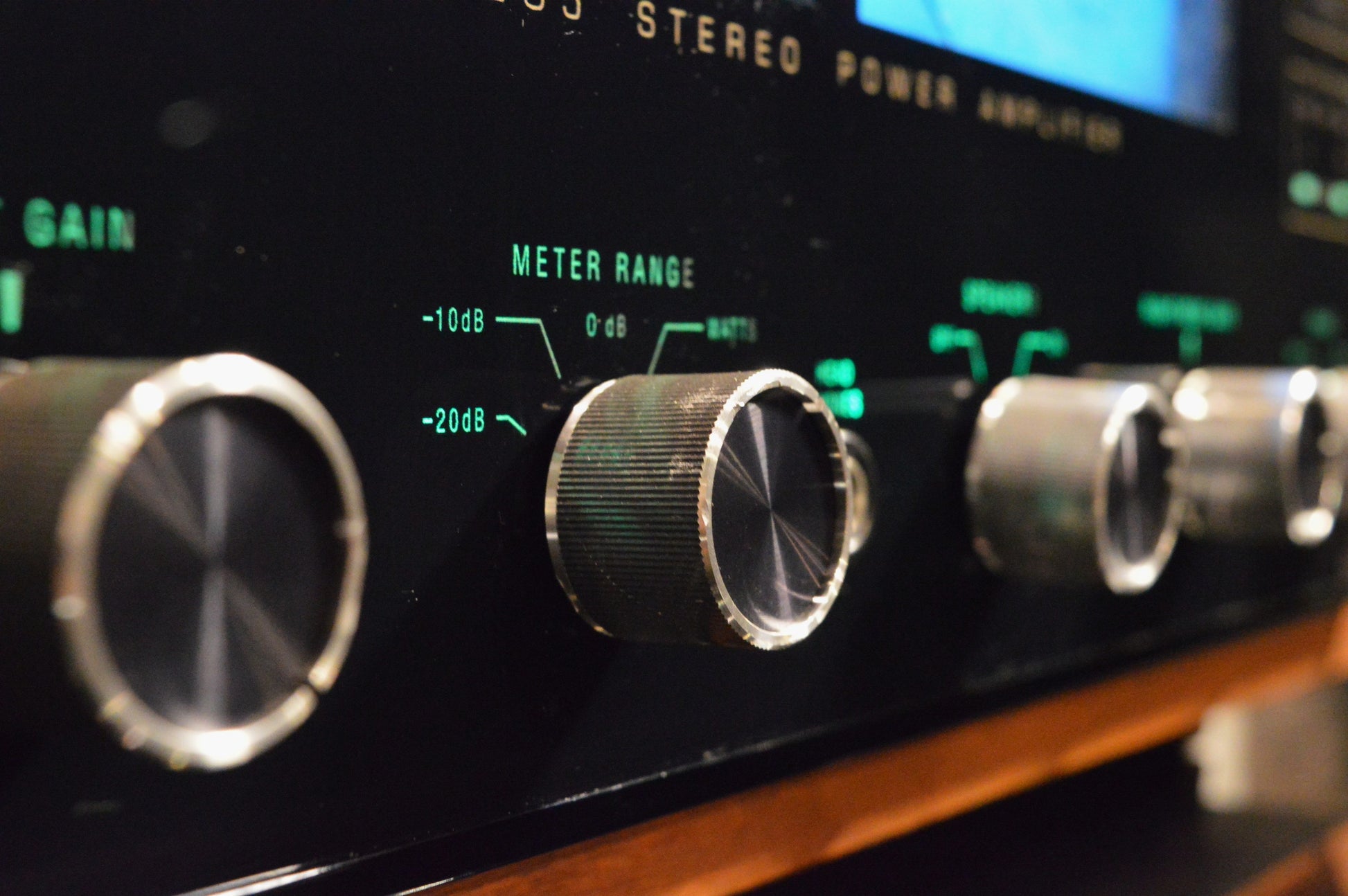

• Meter Range: -20dB, -10dB, 0dB, Watts and Hold
• Speaker Control: On / Off
• Input Level: 2.5V / 0.75V Selectable
• Mode: Stereo / Mono Selectable

SERVICE PERFORMED:

• Professionally serviced by an authorized McIntosh service center
• All lamps replaced with equivalent original parts
• All potentiometers, switches, and connections cleaned
• Critical operating points and devices inspected and checked for proper specification
• Components replaced as necessary where found out of specification
• New speaker selector switch installed
• Amplifier bias properly adjusted
• Bench tested under load following service

PHYSICAL & ELECTRICAL SPECIFICATIONS:

• Power Requirements: 120V AC, 50/60Hz
• Idle Power Consumption: Approx. 70 Watts
• Maximum Power Consumption: Approx. 550 Watts at Rated Output
• Dimensions (H x W x D): 7-1/8 x 16-3/16 x 14-1/2 in.
• Metric Dimensions: Approx. 18.1 x 41.1 x 36.8 cm
• Net Weight: 85 lbs. (38.6 kg)
• Mounting System: McIntosh PANLOC

CONDITION:

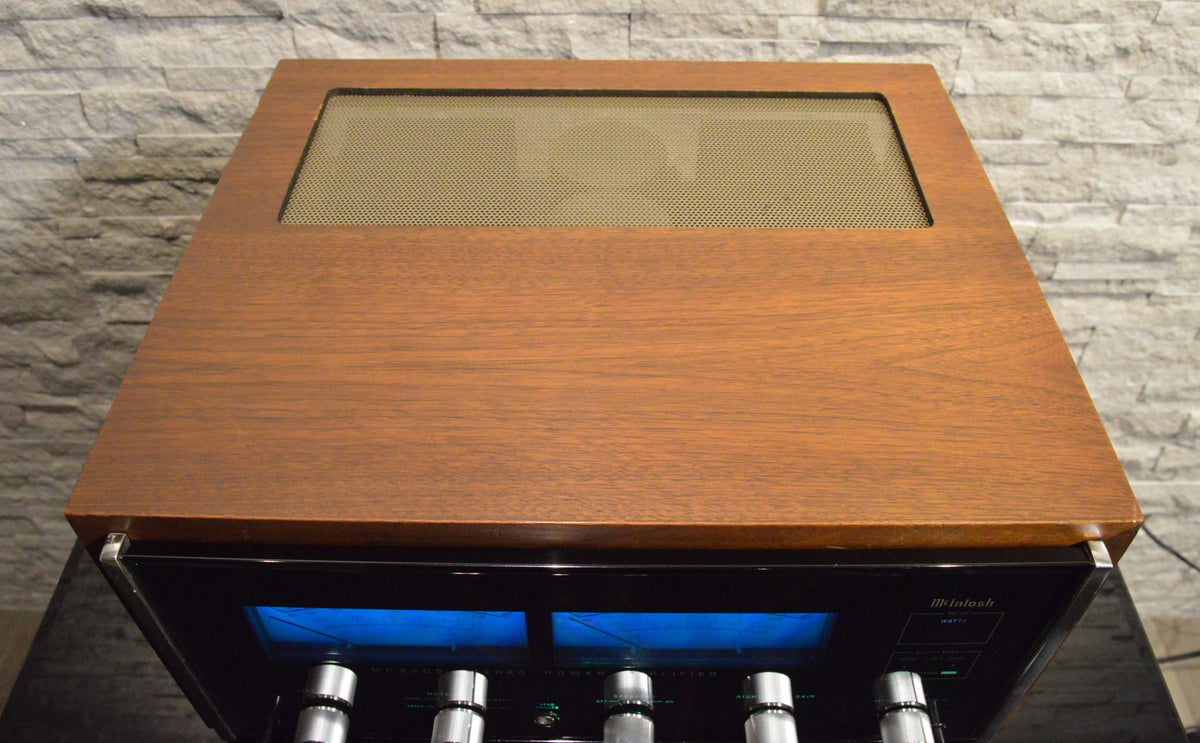

Good pre-owned condition with signs of age and previous use consistent with a vintage component. The amplifier has been professionally serviced and bench tested as detailed above. Please review all photos carefully for the exact cosmetic condition and everything included.
