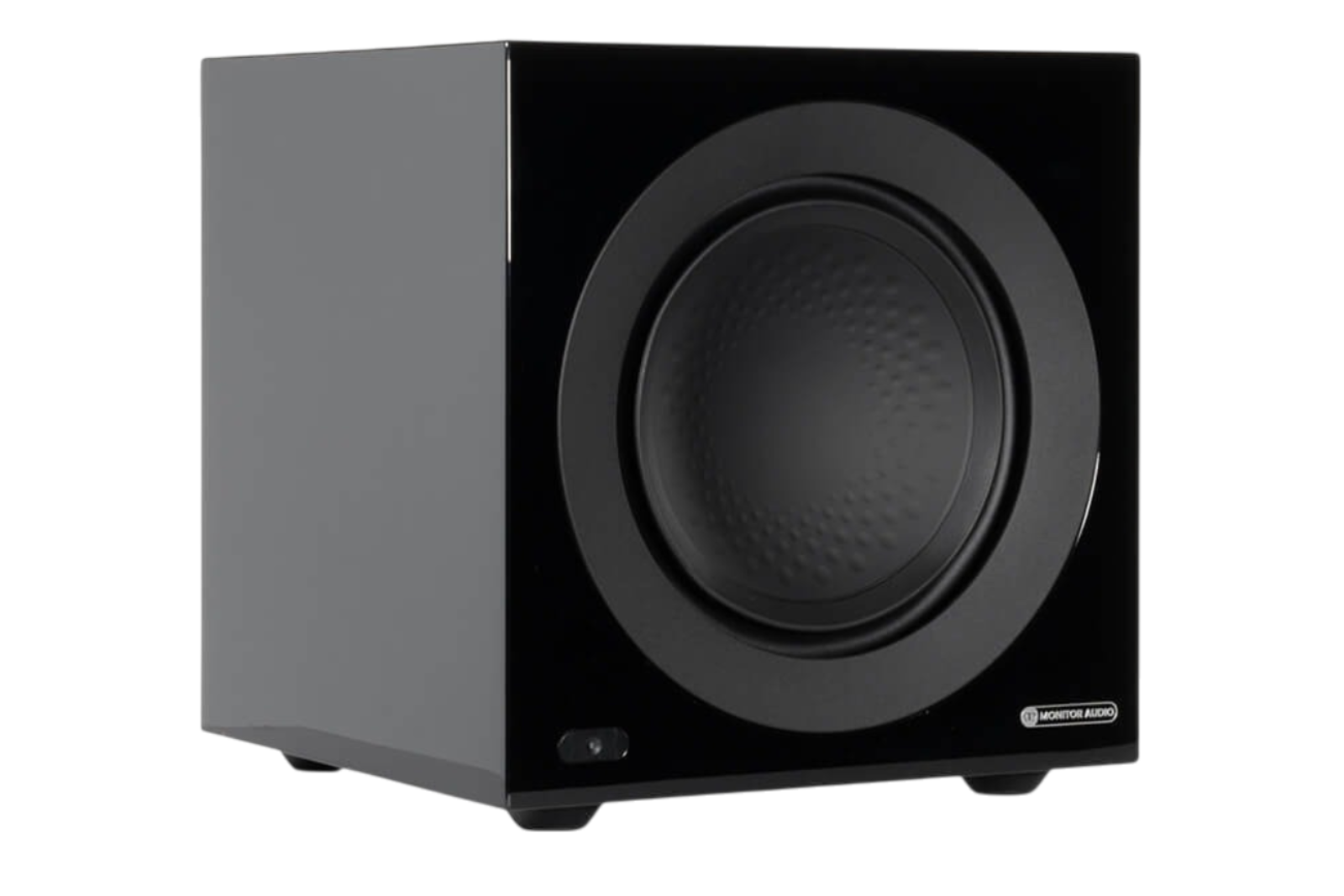

Monitor Audio - Anthra W10 - Powered Subwoofer

The Monitor Audio Anthra W10 is the most compact subwoofer in the Anthra Series, delivering remarkable low-frequency performance from a beautifully engineered sealed enclosure. Designed for smaller to mid-sized listening rooms, the Anthra W10 combines advanced driver technology, powerful amplification, and sophisticated digital signal processing to produce deep, controlled, and highly musical bass for both stereo and home theater systems.

At its core is a 10-inch Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a high-efficiency 500-watt Class-D amplifier. The sealed cabinet design delivers fast transient response and exceptional accuracy, while advanced 28-bit DSP, configurable through the MaestroUnite app, provides extensive system tuning, custom EQ, and multi-subwoofer integration for optimized performance in virtually any listening environment.

A full-color rear-panel LCD display and intuitive rotary controller simplify local setup, while balanced XLR and unbalanced RCA connectivity allow seamless integration with premium audio systems. Whether used individually or combined with up to three additional Anthra subwoofers, the Anthra W10 delivers powerful, articulate bass with the refinement expected from Monitor Audio.

FEATURES

• Compact powered sealed-box subwoofer
• 10-inch RST II C-CAM high-excursion driver with triple suspension
• High-efficiency 500-watt Class-D amplifier
• Advanced 28-bit DSP configurable through the MaestroUnite app

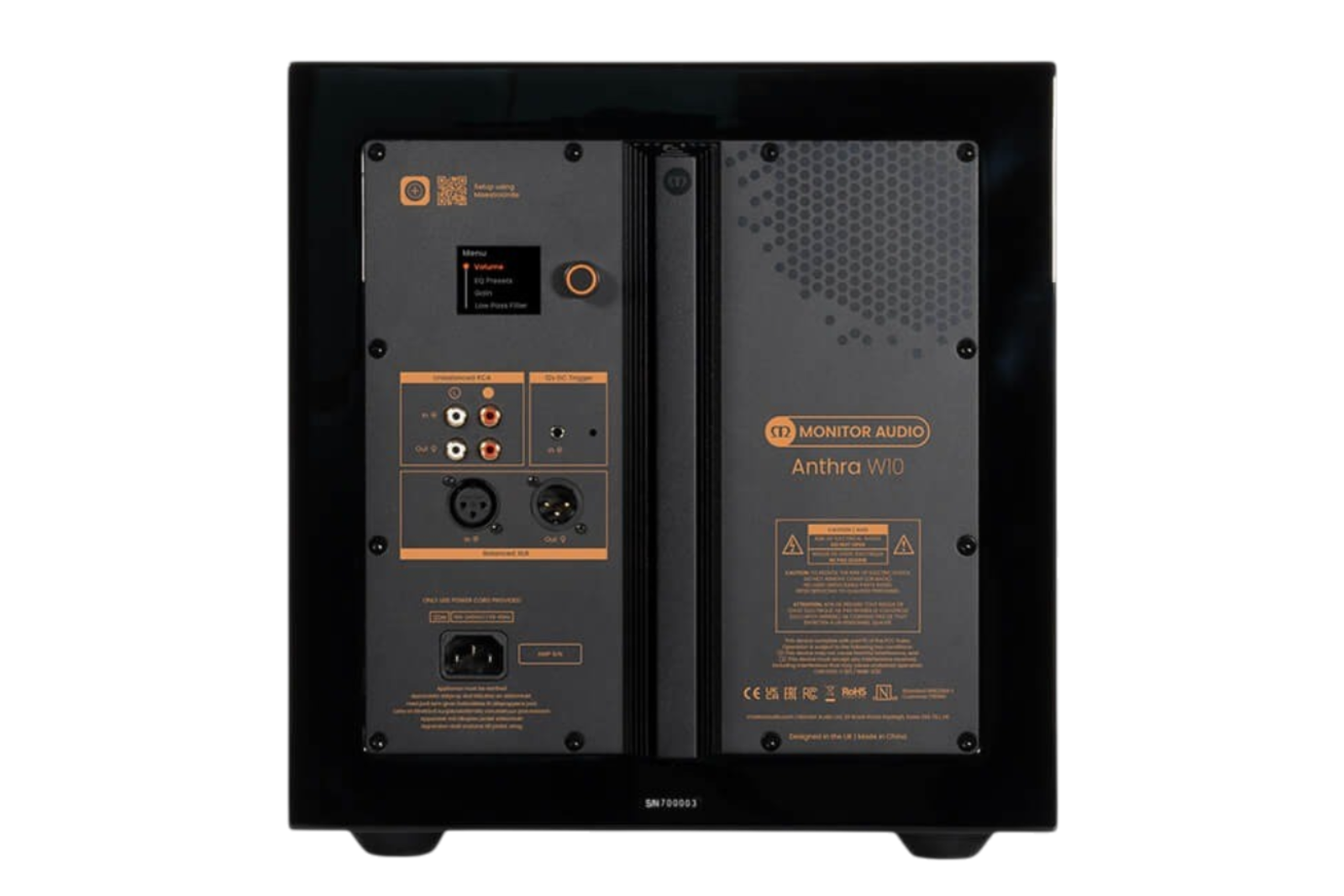

• Full-color rear-panel LCD display with rotary control interface
• Configurable low-pass filter, phase adjustment, and custom EQ presets
• Supports multi-subwoofer integration with up to four Anthra subwoofers
• Balanced XLR and unbalanced RCA inputs and outputs

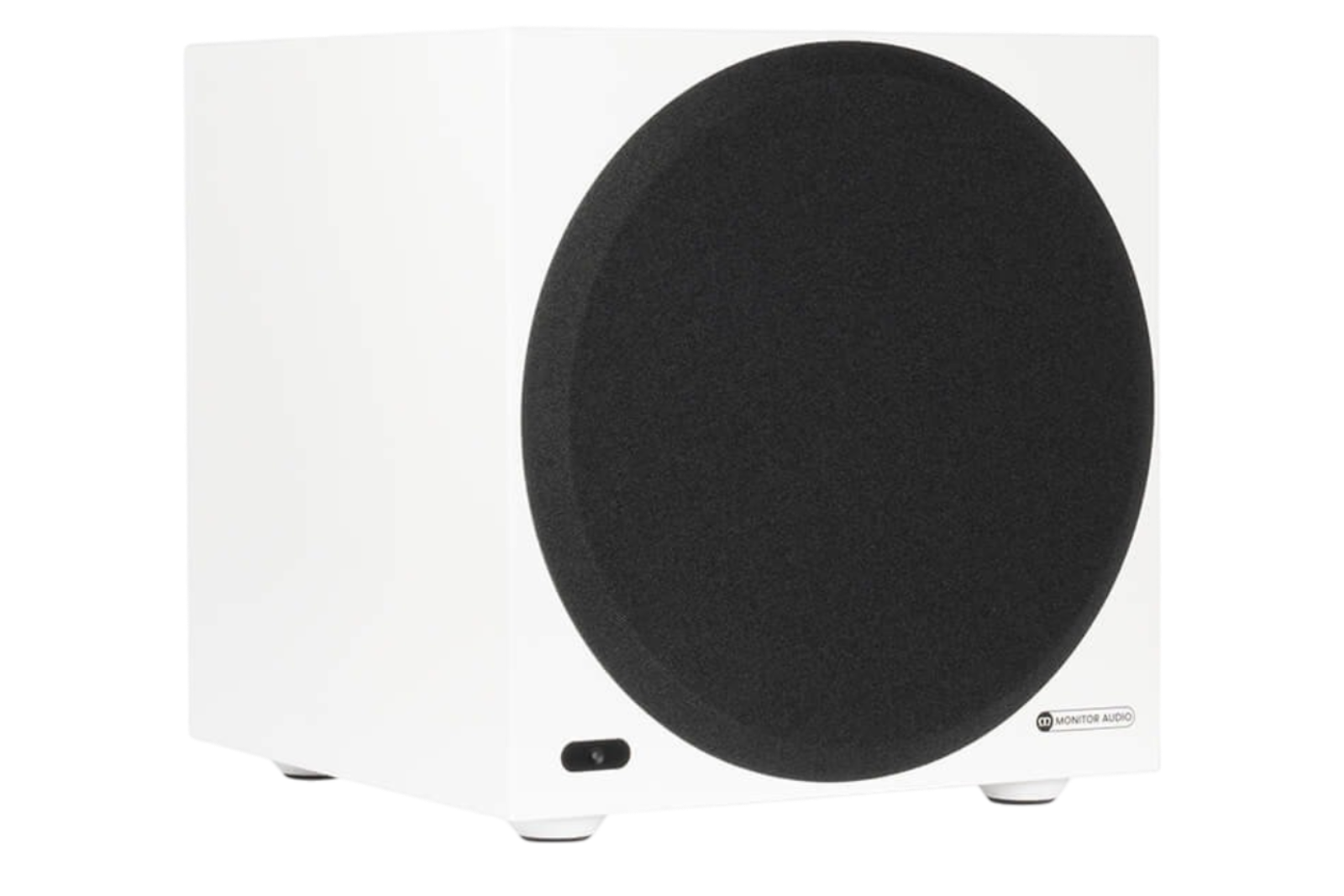

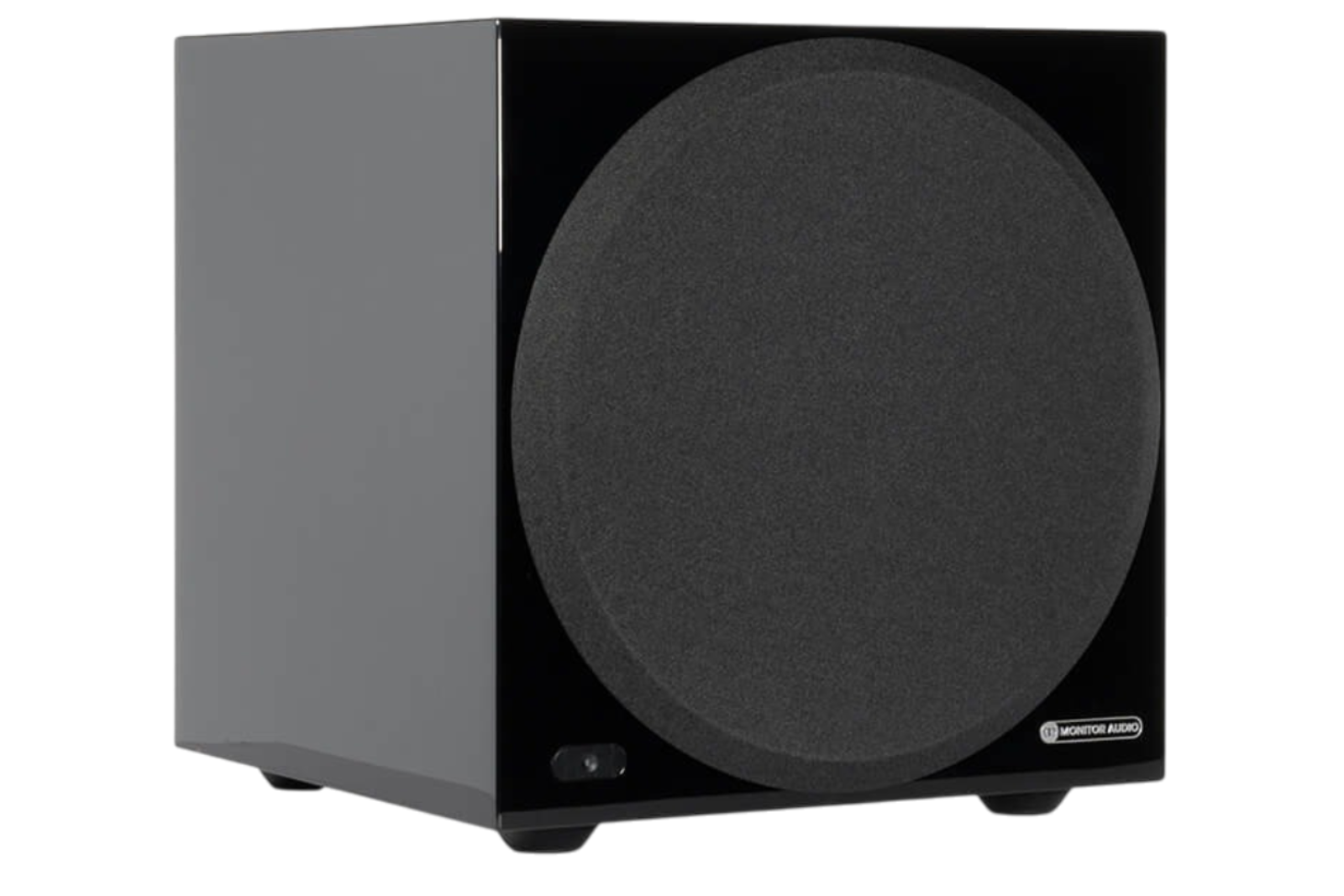

• Heavily braced sealed MDF cabinet with magnetic cloth grille

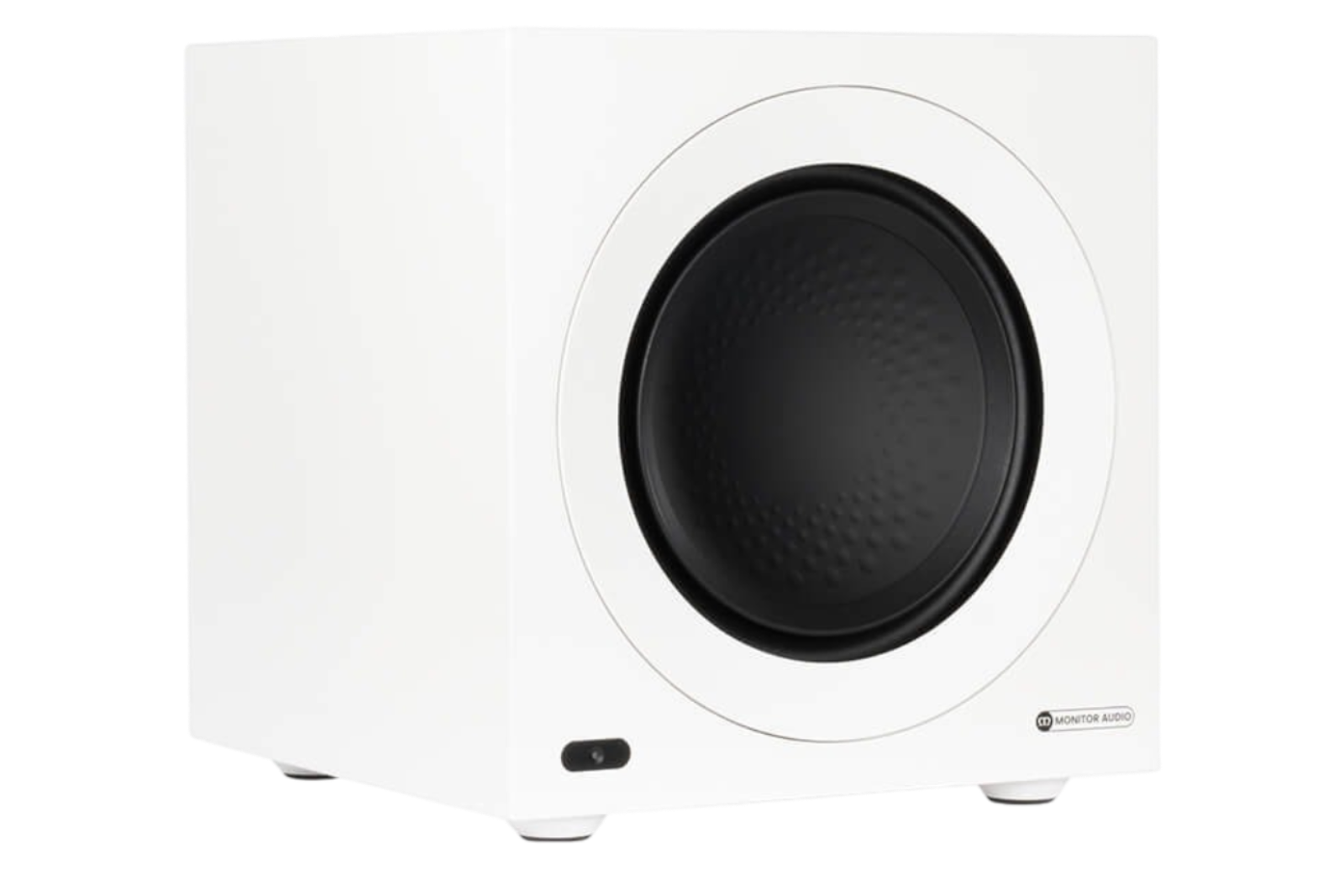

• Available in High Gloss Black and Satin White finishes

SPECIFICATIONS

• System Format: Active Sealed Cabinet Subwoofer
• Driver: 1 × 10" (254 mm) RST II C-CAM High Linear-Excursion Triple Suspension Driver
• Amplifier: High-Efficiency Class-D
• Amplifier Power (240V): 500 Watts Peak / 425 Watts Continuous (Short-Term)
• Amplifier Power (120V): 450 Watts Peak / 390 Watts Continuous (Short-Term)
• Frequency Response: 17 Hz – 400 Hz (-6 dB)
• Driver Excursion: 50 mm Peak-to-Peak
• DSP: 28-Bit / 50 MIPS, Configurable via MaestroUnite
• Phase Control: 0–360°
• Low-Pass Filter: 20–200 Hz, Adjustable Roll-Off (-3 to -48 dB/Octave)
• Inputs: Stereo RCA, Mono/LFE Balanced XLR
• Outputs: Stereo RCA Pass-Through, Mono/LFE Balanced XLR Pass-Through
• Cabinet: Sealed, Internally Braced 18 mm MDF with 36 mm Front Baffle
• Dimensions (H × W × D): 12.6 × 12.6 × 12.6 in. (321 × 321 × 321 mm)
• Weight: 44.1 lbs. (20.1 kg)
• Warranty: 5 Years
