Monitor Audio - Anthra W12 - Powered Subwoofer

The Monitor Audio Anthra W12 is a high-performance powered subwoofer engineered to deliver exceptional low-frequency extension, speed, and control for both music and home theater systems. Designed to perform effortlessly in medium to large listening environments, the Anthra W12 combines advanced driver technology, powerful amplification, and sophisticated digital signal processing to produce bass that is both authoritative and remarkably accurate.

At the heart of the Anthra W12 is a 12-inch Rigid Surface Technology II (RST II) C-CAM high-excursion driver driven by a powerful 1,700-watt Class-D amplifier. The sealed enclosure design provides fast transient response and exceptionally controlled bass, while advanced DSP, configurable through the MaestroUnite app, allows precise system tuning, custom EQ, and multi-subwoofer integration for optimized performance in virtually any listening room.

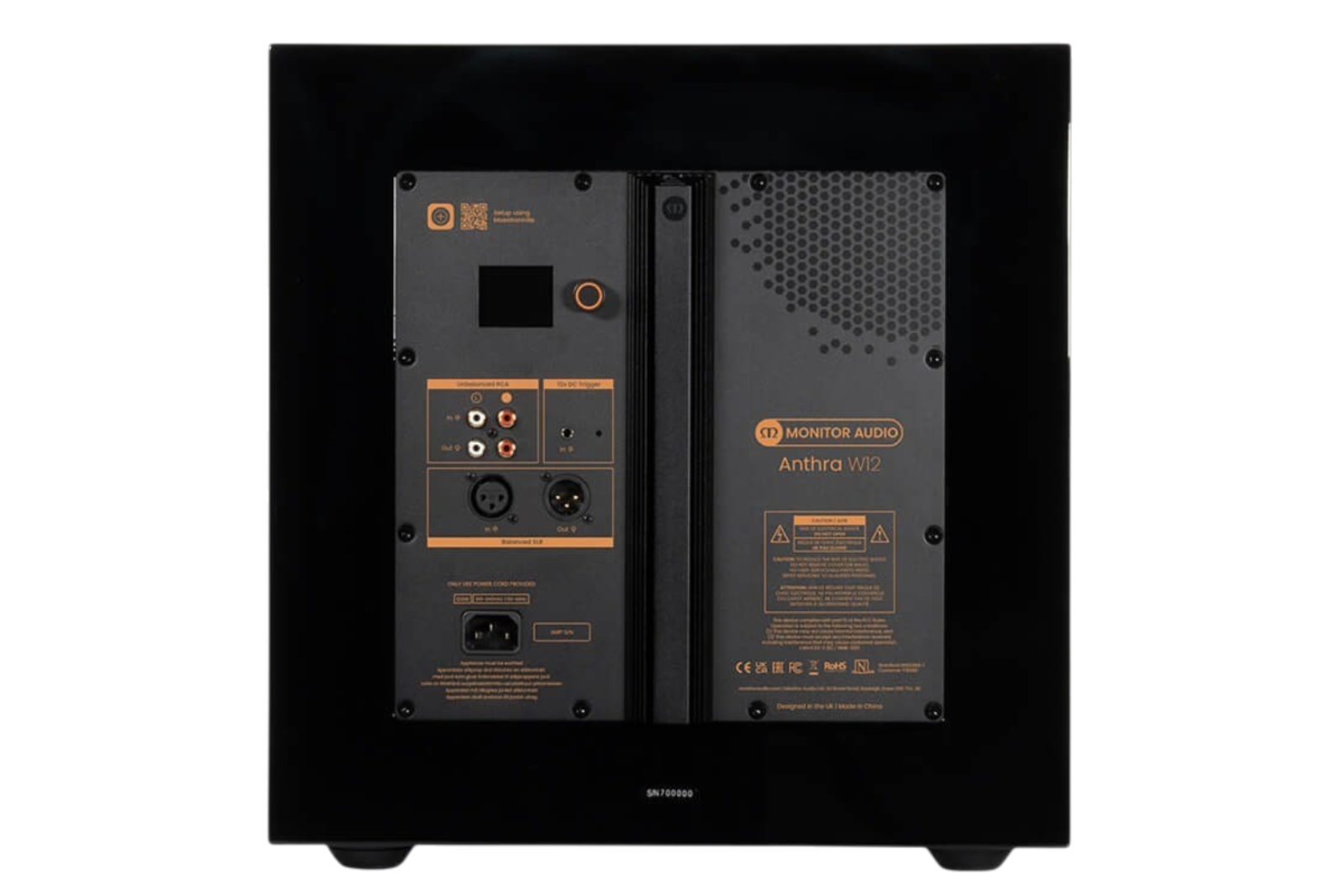

A full-color rear-panel LCD display and intuitive rotary control provide convenient local setup, while balanced XLR and unbalanced RCA connectivity ensure seamless integration into premium stereo and home theater systems. Whether operating as a single subwoofer or as part of a multi-subwoofer configuration, the Anthra W12 delivers deep, musical bass with remarkable precision.

FEATURES

• High-performance powered sealed-box subwoofer
• 12-inch RST II C-CAM high-excursion driver with triple suspension
• High-efficiency 1,700-watt Class-D amplifier
• Advanced 28-bit DSP configurable through the MaestroUnite app
• Full-color rear-panel LCD display with rotary control interface
• Configurable low-pass filter, phase adjustment, and custom EQ presets
• Supports multi-subwoofer integration with up to four Anthra subwoofers
• Balanced XLR and unbalanced RCA inputs and outputs
• Heavily braced sealed MDF cabinet with magnetic cloth grille
• Compatible with the MaestroUnite setup and calibration platform

SPECIFICATIONS

• System Format: Active Sealed Cabinet Subwoofer
• Driver: 1 × 12" (305 mm) RST II C-CAM High Linear-Excursion Triple Suspension Driver
• Amplifier: High-Efficiency Class-D
• Amplifier Power (240V): 1,700 Watts Peak / 900 Watts Continuous (Short-Term)
• Amplifier Power (120V): 1,325 Watts Peak / 700 Watts Continuous (Short-Term)
• Frequency Response: 16 Hz – 400 Hz (-6 dB)
• Driver Excursion: 50 mm Peak-to-Peak
• DSP: 28-Bit / 50 MIPS, Configurable via MaestroUnite
• Phase Control: 0–360°
• Low-Pass Filter: 20–200 Hz, Adjustable Roll-Off (-3 to -48 dB/Octave)
• Inputs: Stereo RCA, Mono/LFE Balanced XLR
• Outputs: Stereo RCA Pass-Through, Mono/LFE Balanced XLR Pass-Through
• Cabinet: Sealed, Internally Braced 25 mm MDF with 36 mm Front Baffle
• Dimensions (H × W × D): 14.7 × 14.7 × 14.7 in. (374 × 374 × 374 mm)
• Weight: 63.1 lbs. (28.6 kg)
• Warranty: 5 Years
