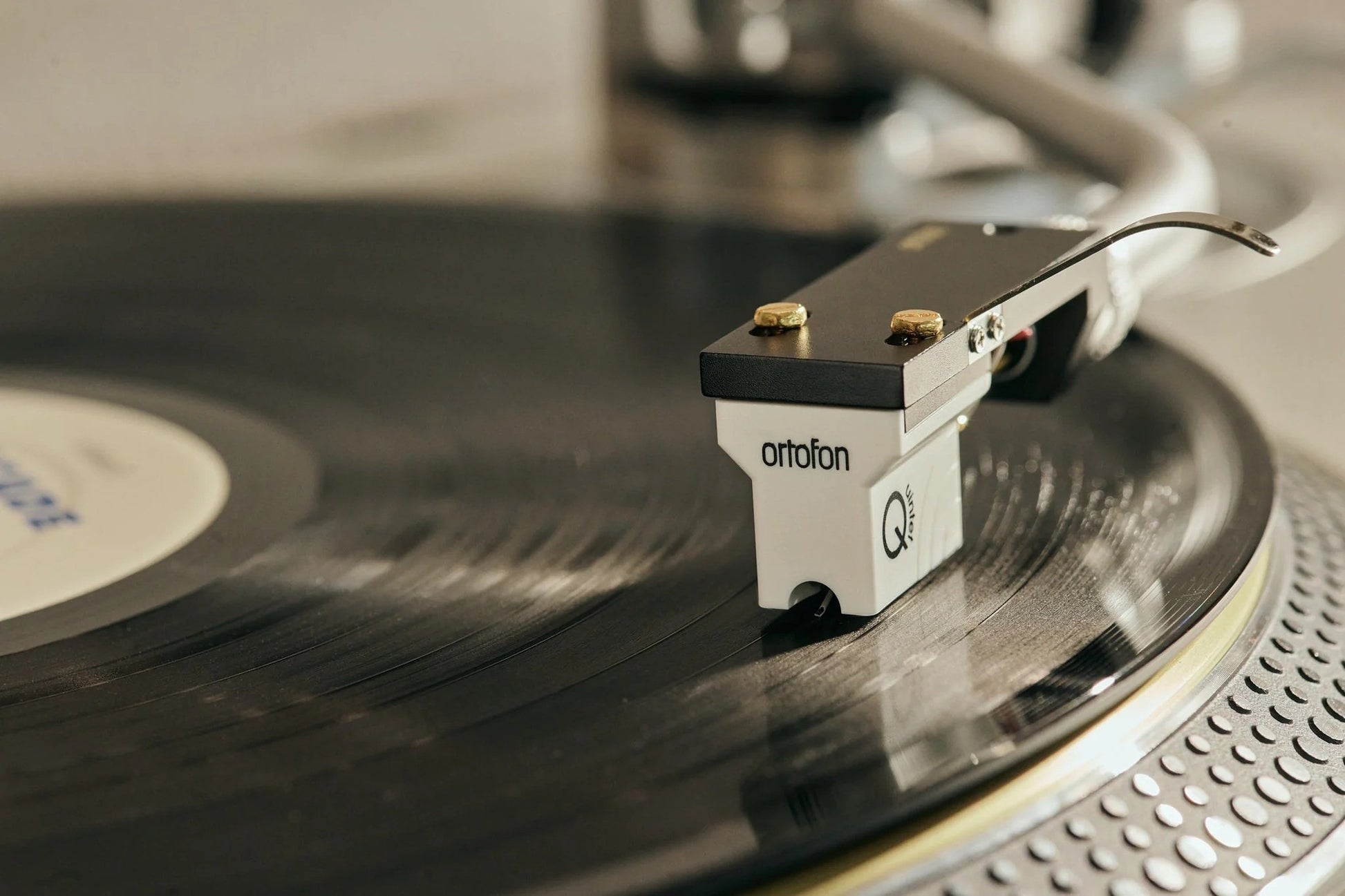

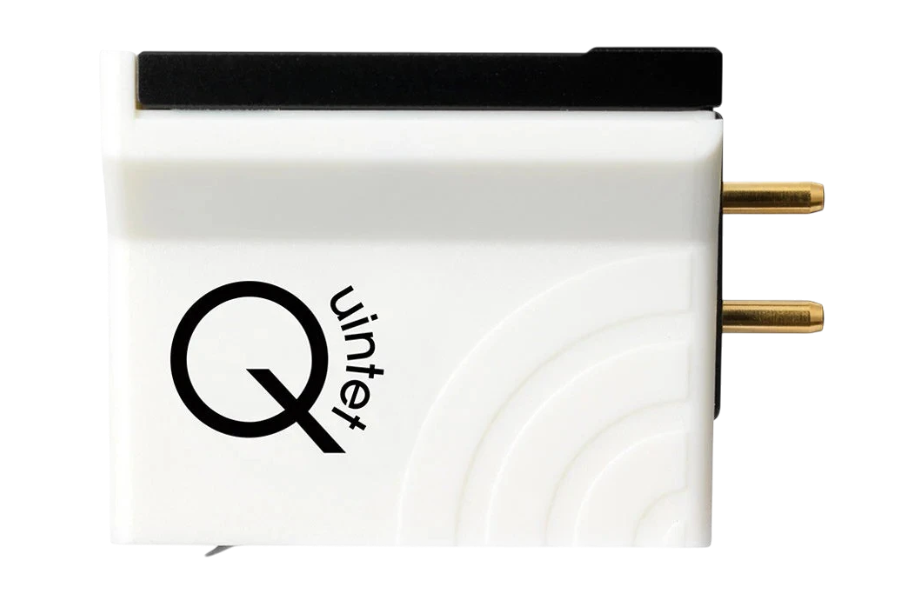

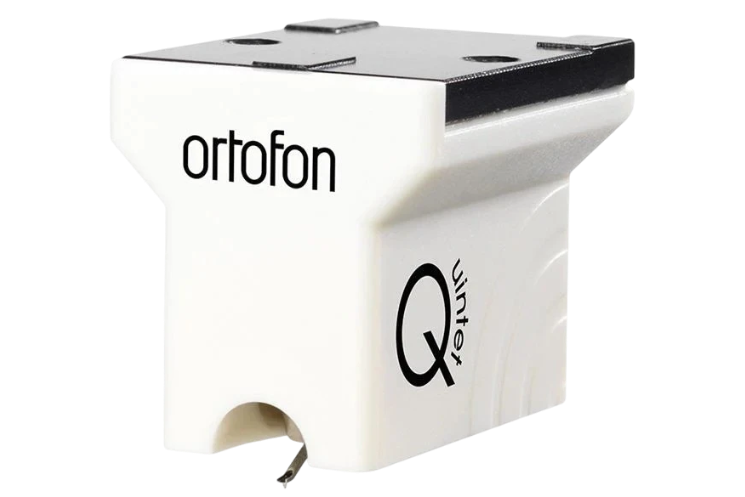

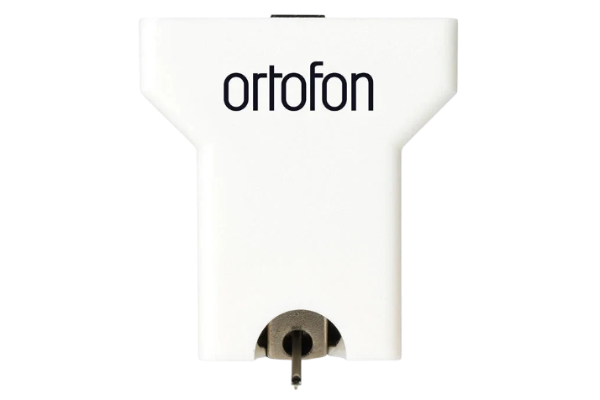

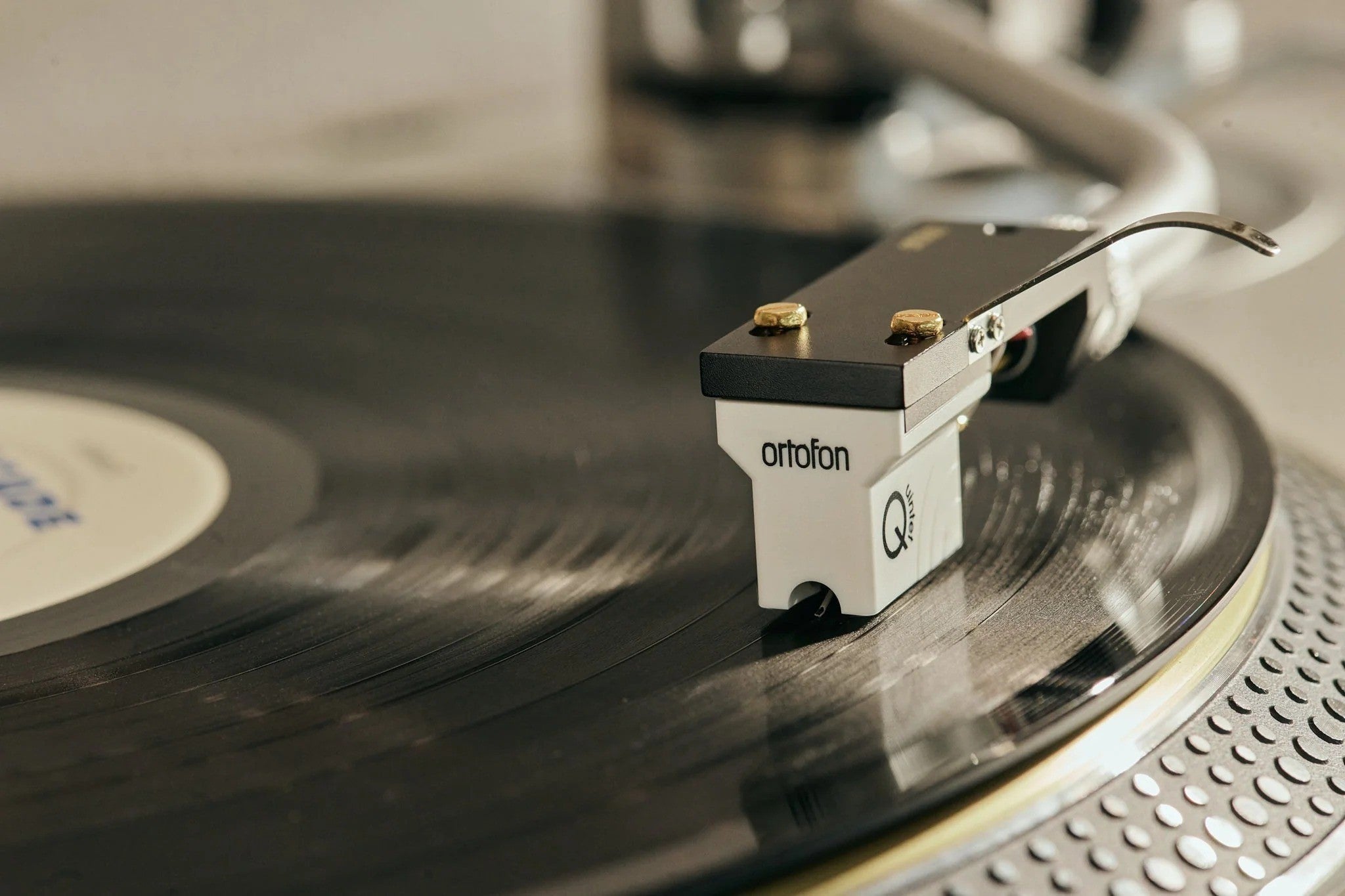

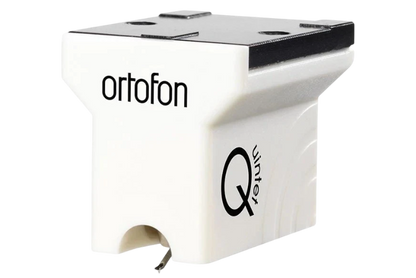

Ortofon - MC Quintet Mono - Moving Coil Mono Cartridge

The Ortofon MC Quintet Mono is a true moving coil mono cartridge designed specifically for the playback of mono microgroove vinyl records. Engineered to deliver authentic mono reproduction, it combines Ortofon's renowned moving coil technology with a strapped output design that delivers the identical signal to both stereo channels, allowing true mono playback on virtually any stereo system without requiring dedicated mono equipment.

Equipped with a Nude Elliptical diamond stylus mounted to an aluminum cantilever, the MC Quintet Mono tracks worn and vintage mono records with exceptional precision while minimizing surface noise. Combined with a powerful neodymium magnet system, low internal impedance, and a lightweight PC thermoplastic body, it provides excellent compatibility with a wide range of tonearms and moving coil phono stages.

Whether rediscovering classic mono pressings or enjoying newly released mono recordings, the MC Quintet Mono delivers the focused imaging, warmth, and musical realism that only a dedicated mono cartridge can provide.

FEATURES

• True moving coil mono phono cartridge
• Designed specifically for mono microgroove vinyl records
• Nude Elliptical diamond stylus
• Aluminum cantilever
• Strapped output delivers identical signal to both stereo channels
• High-performance neodymium magnet system
• Low internal impedance for broad phono stage compatibility
• Threaded mounting holes for simple installation
• Designed and manufactured in Denmark

DESIGN & TECHNOLOGY

• Dedicated Mono Design: The MC Quintet Mono is purpose-built for mono microgroove records, providing true mono playback while significantly reducing surface noise and groove imperfections.
• Nude Elliptical Stylus: The Nude Elliptical diamond stylus offers outstanding groove contact, accurate tracking, and excellent playback of both modern and vintage mono recordings.
• Strapped Mono Output: Internal wiring delivers the same signal to both output channels, eliminating the need for dedicated mono electronics while preserving authentic mono reproduction.
• Neodymium Magnet System: Powerful neodymium magnets maximize generator efficiency, providing excellent dynamics and low distortion.
• PC Thermoplastic Body: The lightweight, impact-resistant cartridge body offers excellent rigidity, vibration control, and long-term durability while maintaining low resonance.

SPECIFICATIONS

• Type: Low Output Moving Coil (MC) Mono Phono Cartridge
• Output Voltage @ 1 kHz, 5 cm/sec: 0.3 mV
• Frequency Response: 20 Hz – 20 kHz (±2.0 dB)
• Tracking Ability @ 315 Hz: 70 μm
• Dynamic Compliance, Lateral: 15 μm/mN
• Stylus Type: Nude Elliptical
• Stylus Tip Radius: r/R 8/18 μm
• Tracking Force Range: 2.1 – 2.5 g
• Recommended Tracking Force: 2.3 g
• Tracking Angle: 20°
• Internal Impedance (DC Resistance): 5 Ω
• Recommended Load Impedance: >20 Ω
• Coil Wire Material: Pure 4-Nines Silver (Ag)
• Cartridge Body Material: PC Thermoplastic
• Finish: White
• Weight: 9 g
• Manufactured: Denmark
