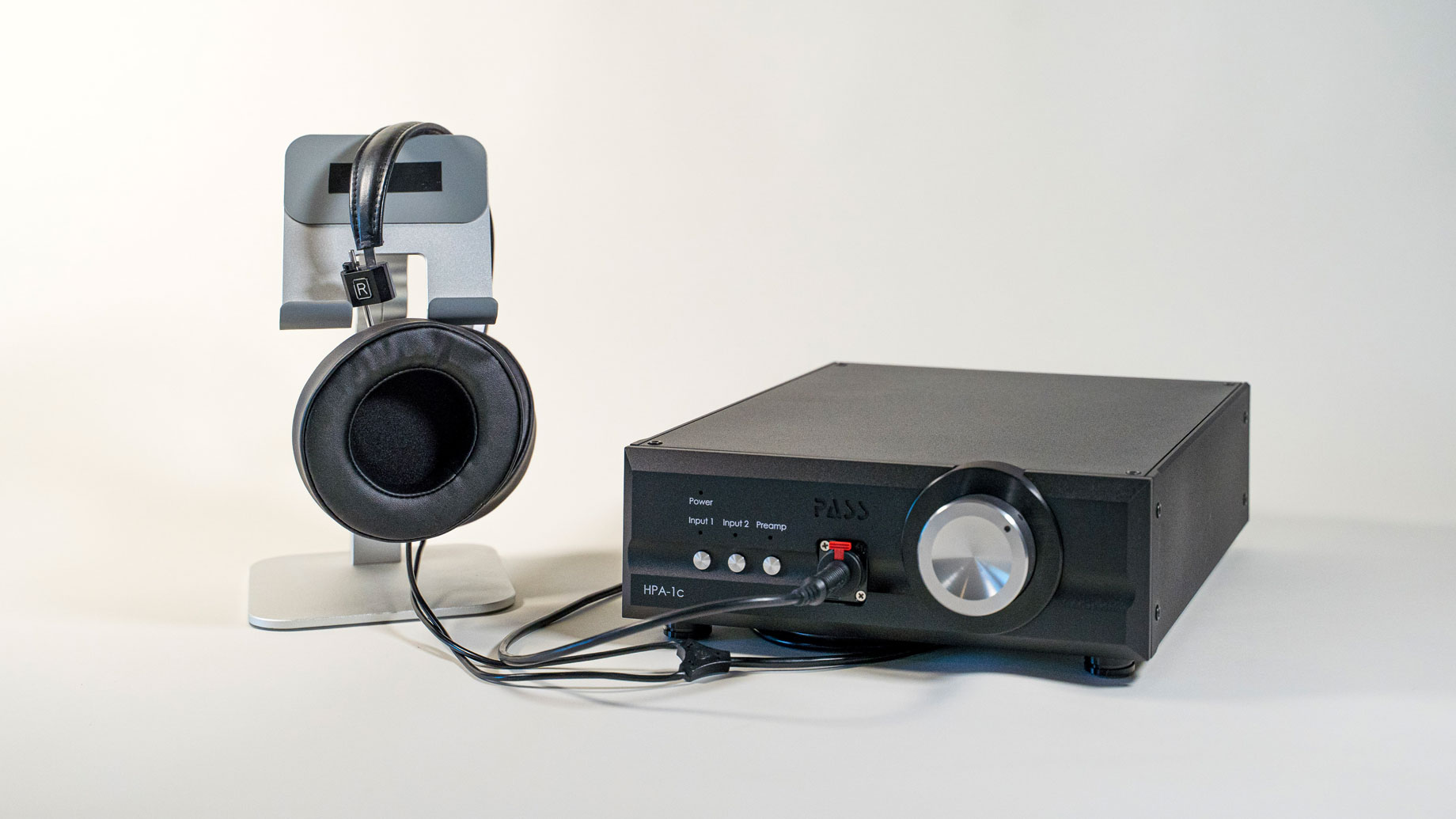

Pass Labs - HPA-1c - Headphone Amplifier & Preamplifier

The HPA-1c builds on the success of the original HPA-1 with meaningful refinements aimed at delivering an even quieter and more revealing listening experience. Updated power supply components and improved grounding create a cleaner, more stable foundation that lowers noise and improves overall clarity.

With approximately 10 dB lower noise than its predecessor, the HPA-1c brings out greater low-level detail and a blacker background—especially noticeable with high-sensitivity headphones. Its fully discrete Class A design provides smooth, natural sound with excellent control across both dynamic and planar magnetic headphones.

Beyond headphone use, the HPA-1c also functions as a high-performance line-level preamplifier capable of anchoring a serious speaker system. Combining refinement, versatility, and the musical character Pass Labs is known for, the HPA-1c is designed for listeners who want reference-level performance in a compact form factor.

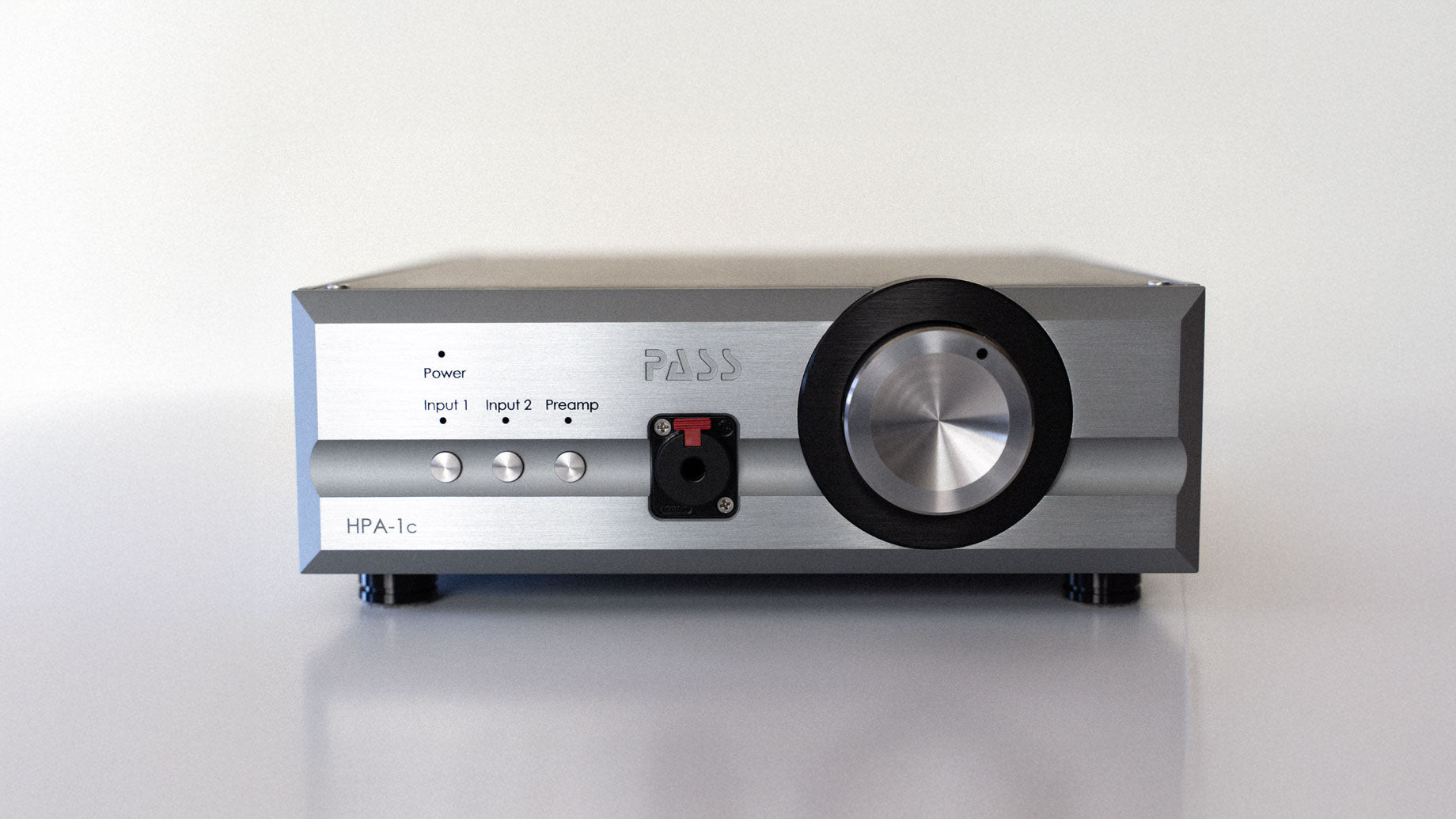

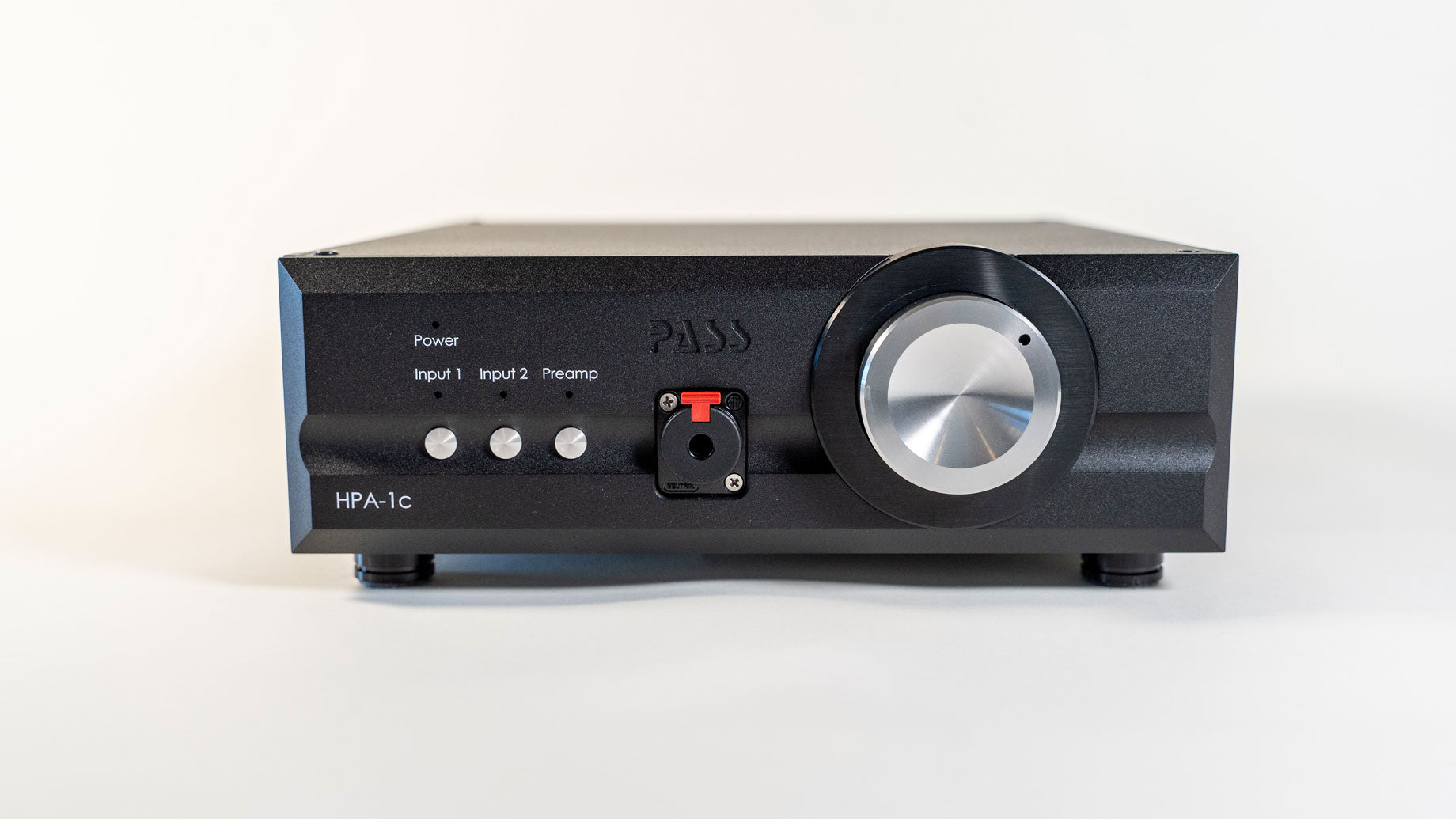

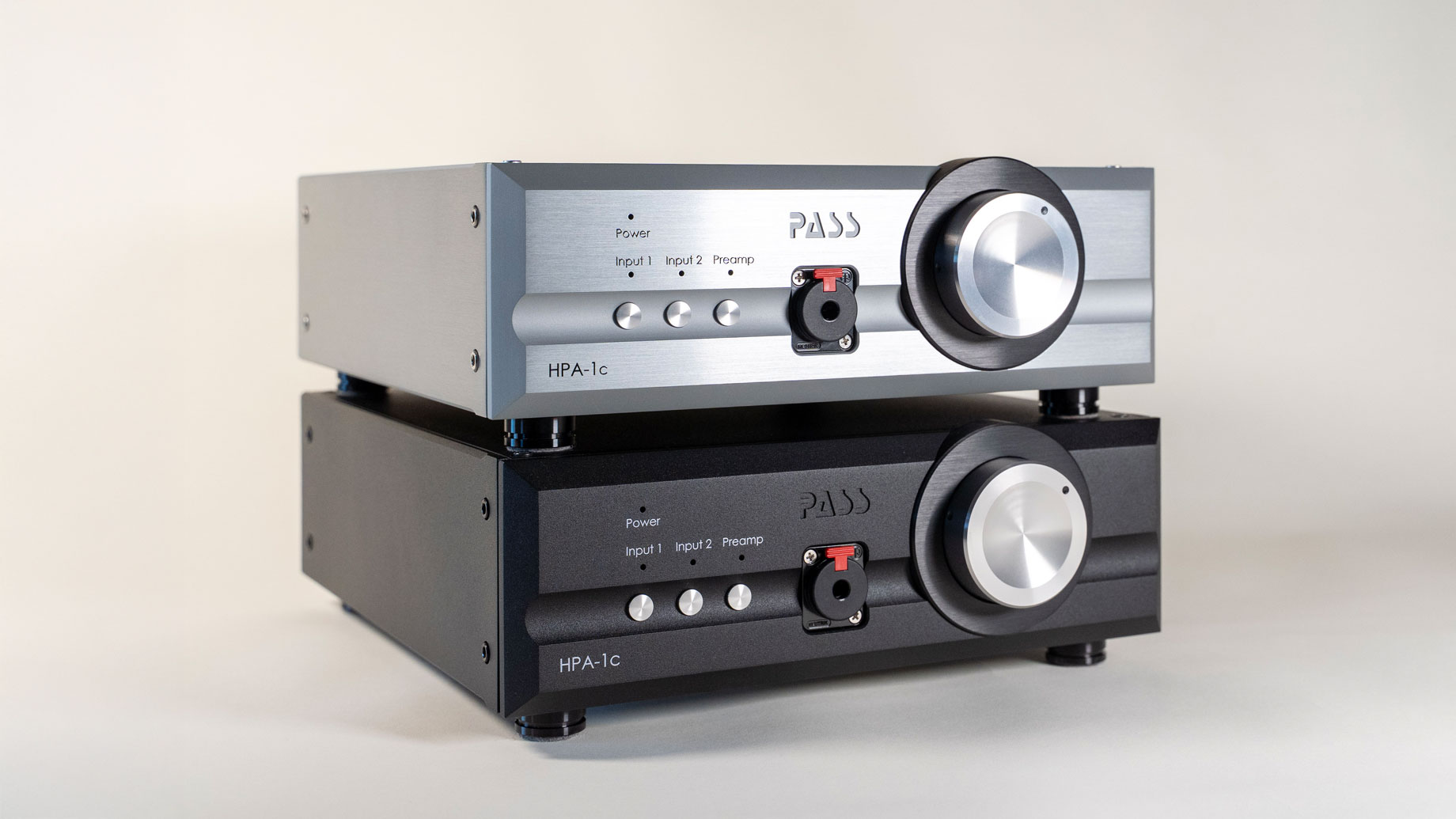

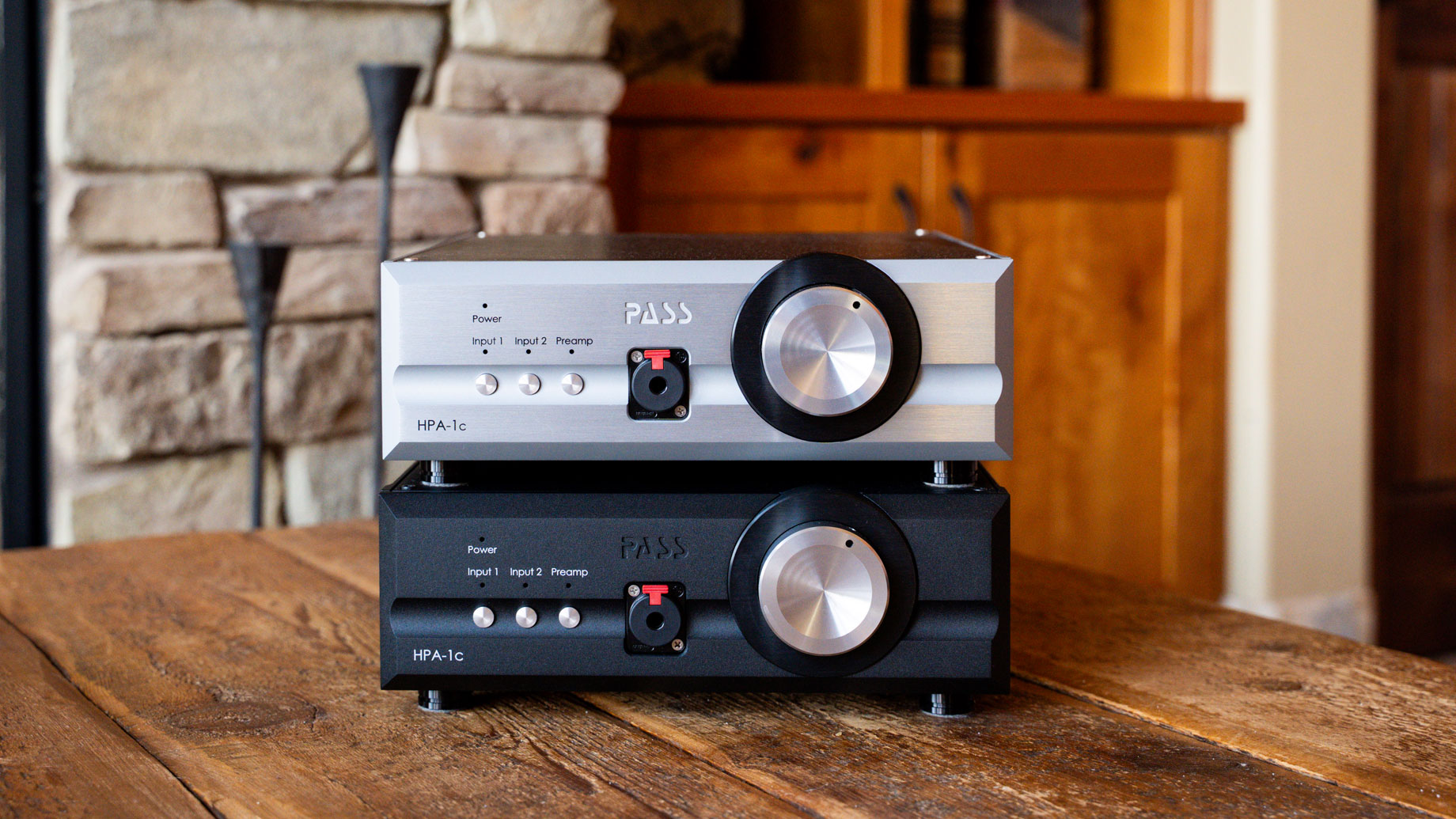

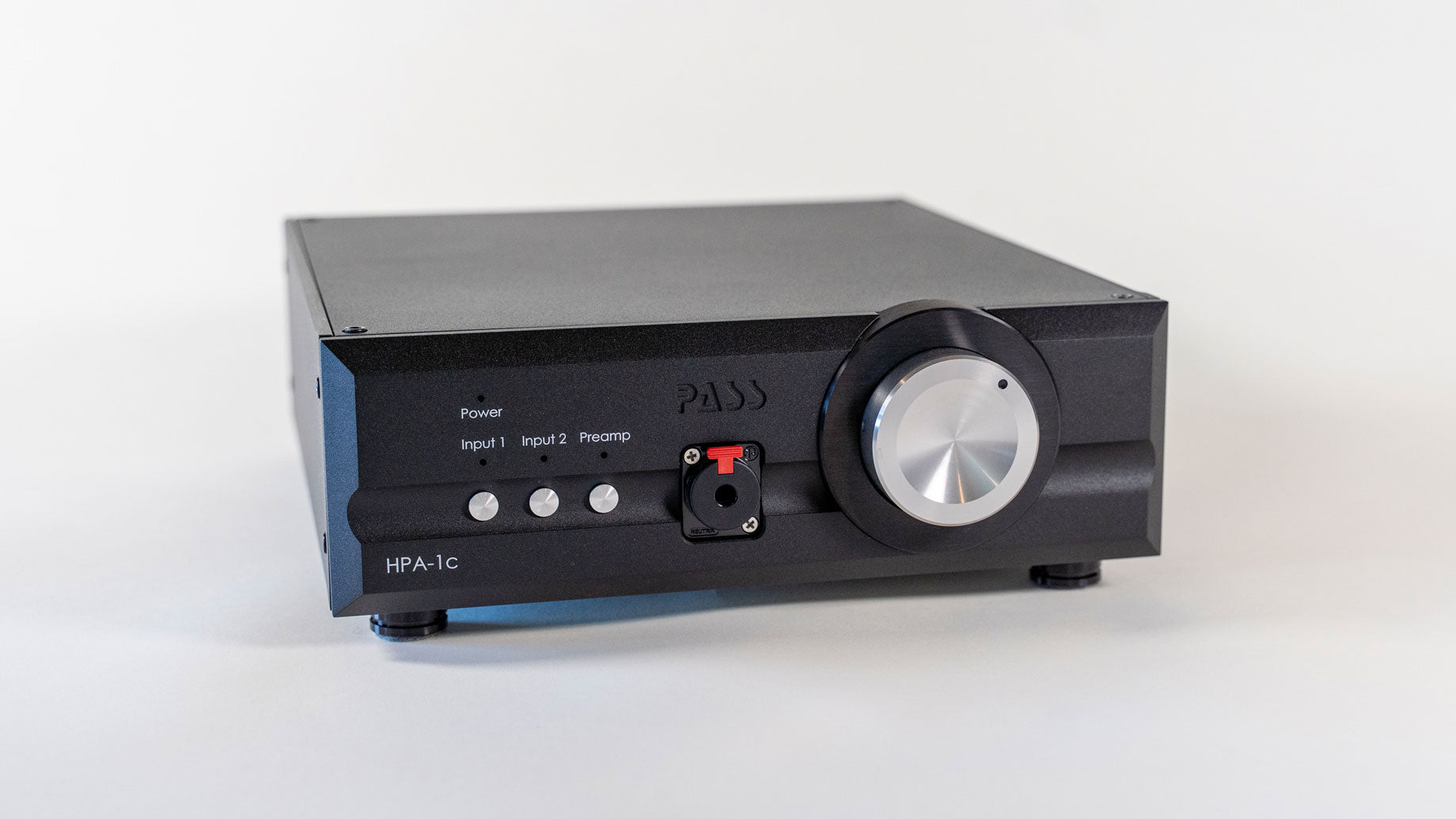

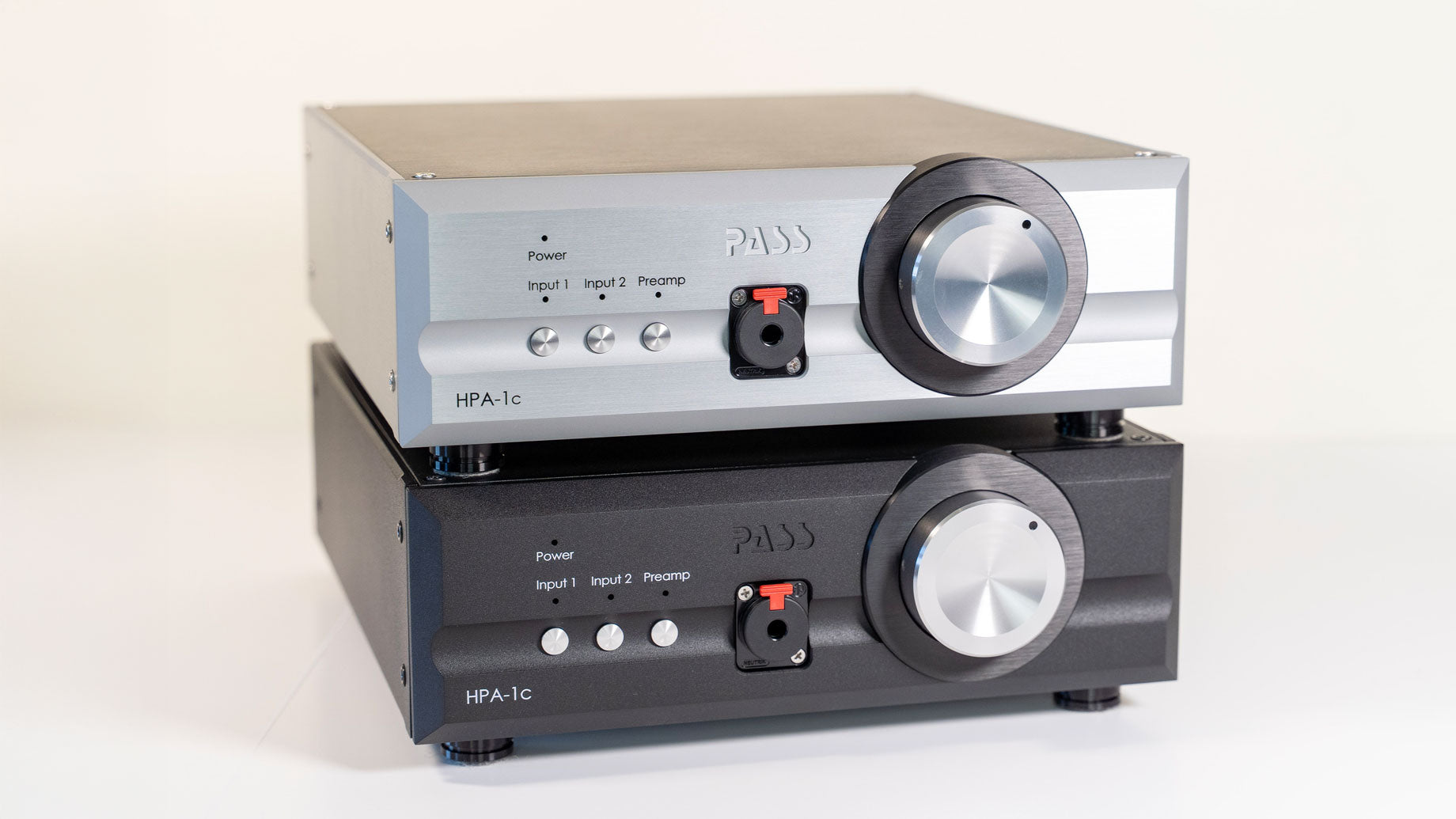

Available in Silver or Black finishes.

FEATURES

• Fully Discrete Class A Design
• Upgraded Low Noise Power Supply
• Improved Grounding Architecture
• Approx. 10 dB Lower Noise Performance

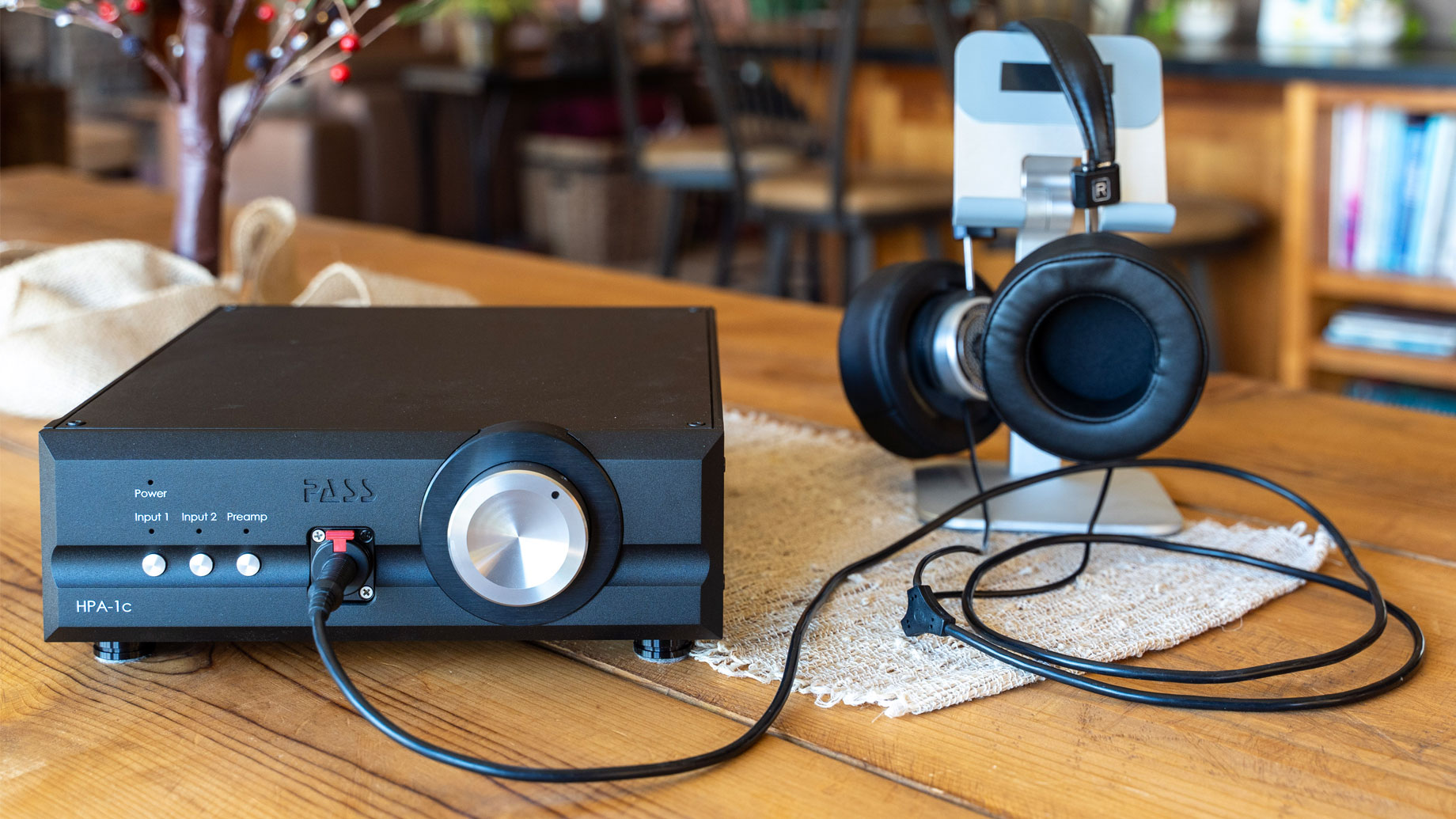

• Drives Dynamic and Planar Magnetic Headphones
• Functions as a Line-Level Preamplifier
• Designed and Manufactured in the USA

SPECIFICATIONS

• Gain: 8 dB
• Frequency Response: 10 Hz – 100 kHz (-1 dB)
• Output Power into 20 Ohms: 3500 mW
• Output Power into 300 Ohms: 200 mW
• THD + Noise: < 0.005 at 1V Output
• Input Impedance: 50K Ohm
• Output Impedance: < 2 Ohms
• Power Consumption: 23 Watts
• Dimensions: 11”W x 13.5”D x 4”H
• Weight: 14 lbs
