REL - T/5x - Powered Subwoofer

REL T/5x delivers remarkably deep, expressive bass from a compact enclosure designed to disappear visually while transforming the performance of your audio system. Ideal for small and medium-sized rooms, T/5x combines speed, musicality, and low-frequency authority in a refined package that integrates seamlessly with both music and home theater systems.

Featuring a long-throw 8-inch FibreAlloy driver, REL's renowned High-Level connectivity, and a proven Class A/B amplifier design, T/5x delivers natural, room-filling bass with exceptional control and detail. Available in Piano Black or Gloss White finishes, it offers premium performance and elegant styling in equal measure.

DESIGN

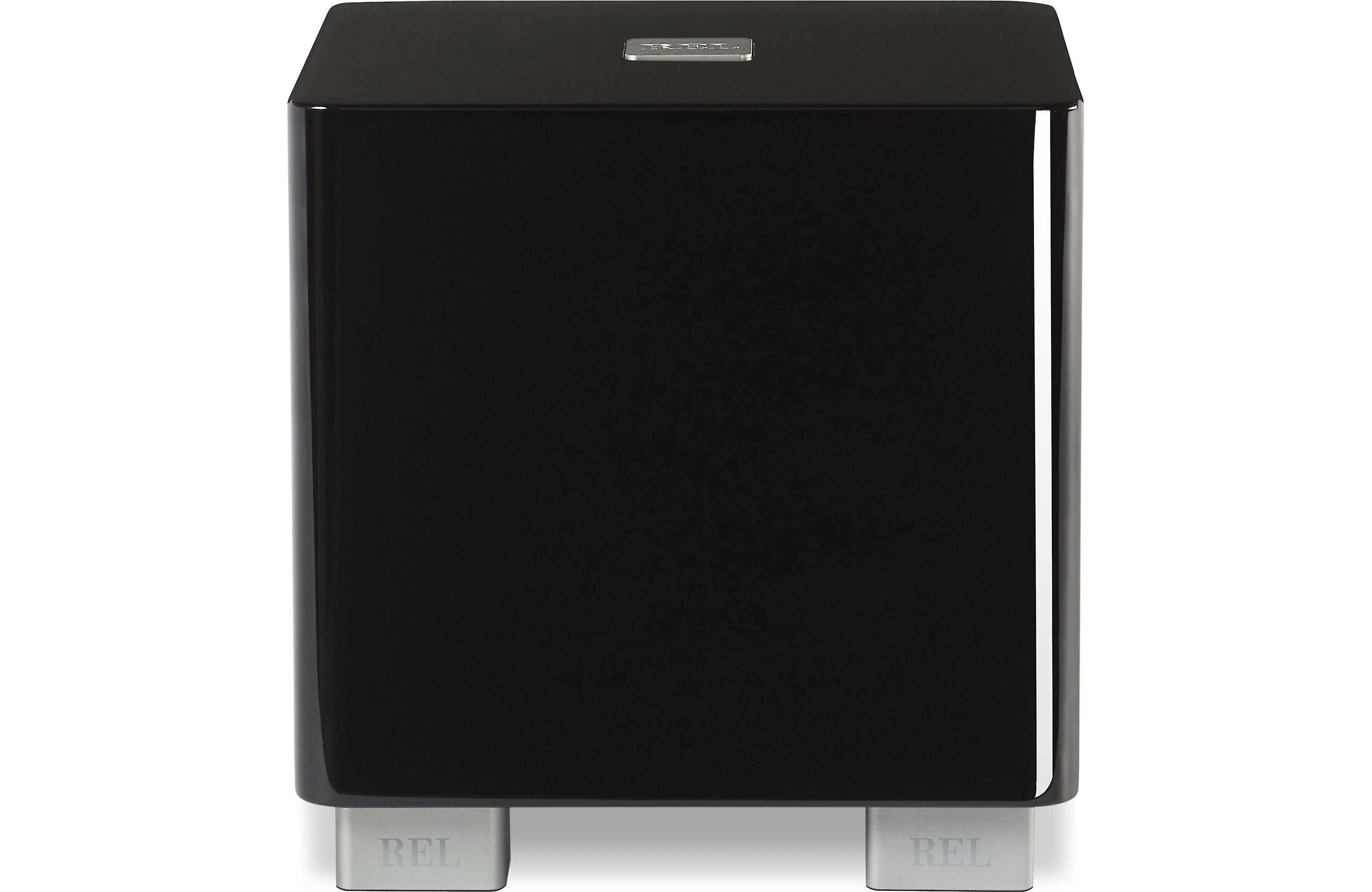

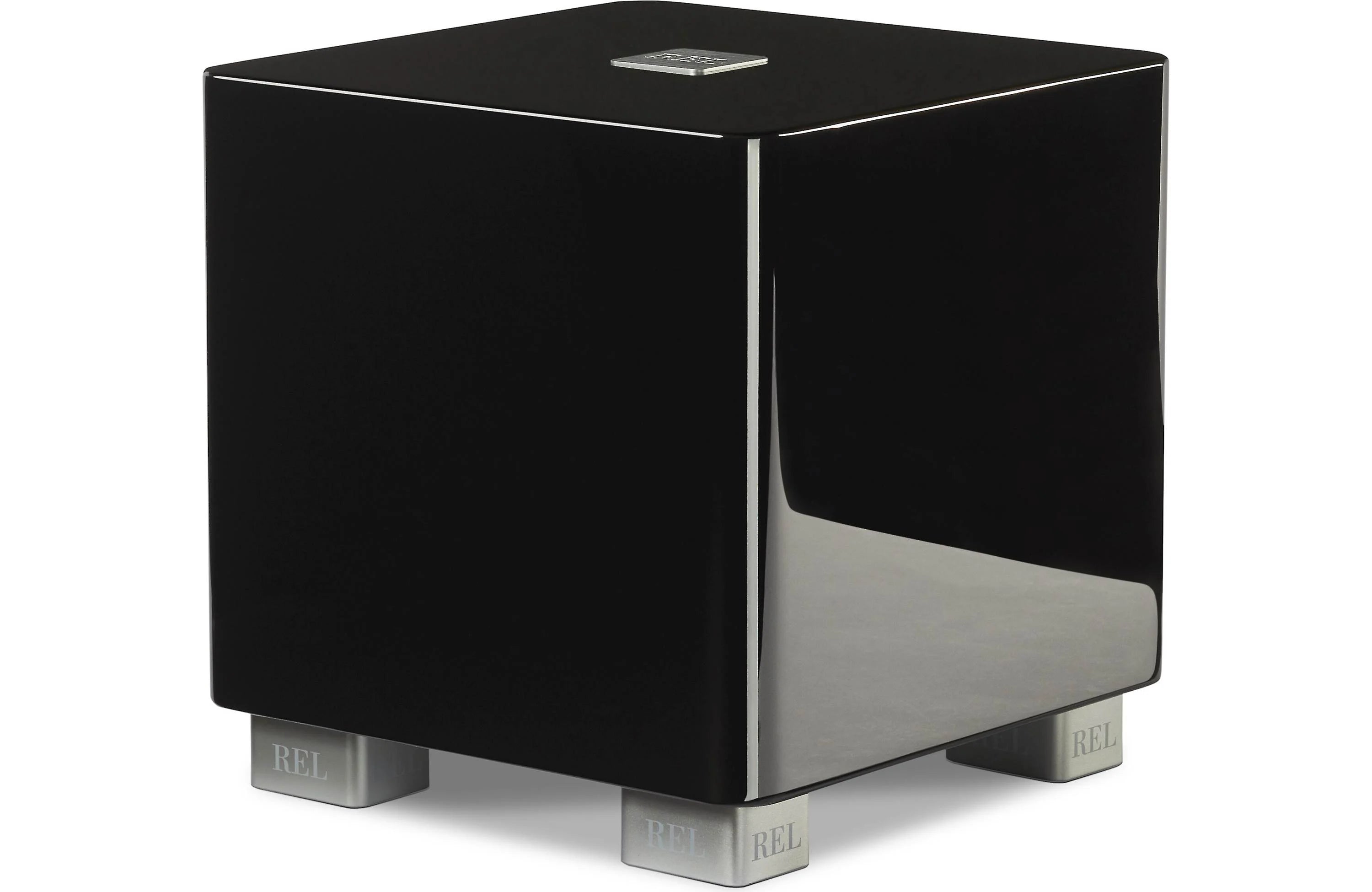

T/5x features a compact acoustic-suspension cabinet engineered to maximize performance while minimizing visual presence. Gently rounded cabinet edges and carefully proportioned dimensions create the appearance of a smaller enclosure while actually increasing internal volume for improved bass performance.

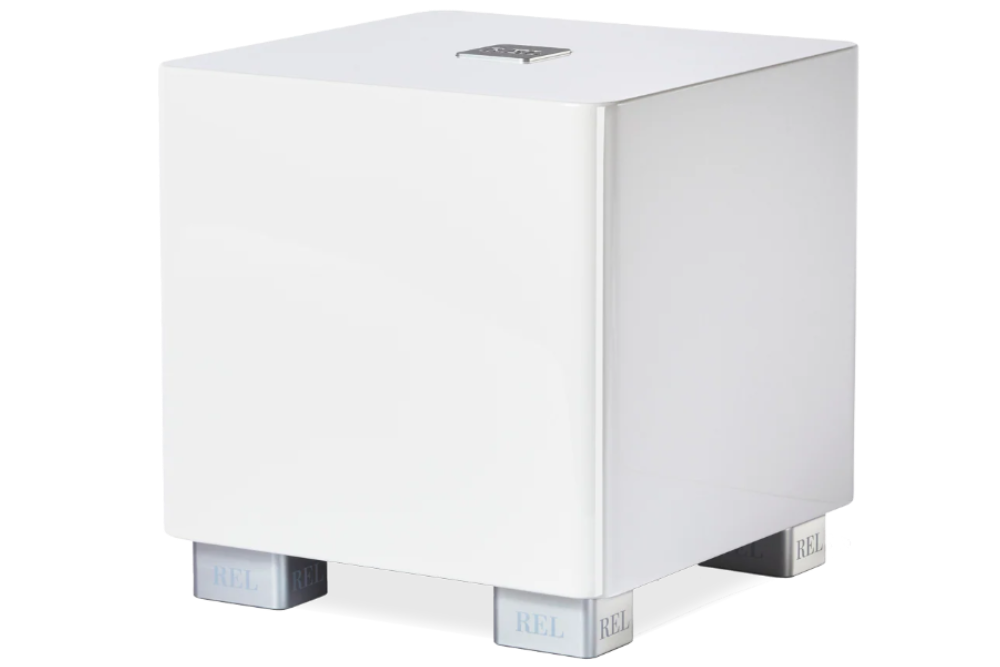

The cabinet is finished in five hand-polished coats of Piano Black or Gloss White lacquer, creating a luxurious appearance that complements virtually any décor. Its down-firing driver configuration allows bass energy to disperse evenly throughout the room while eliminating the need for a visible grille.

DRIVER

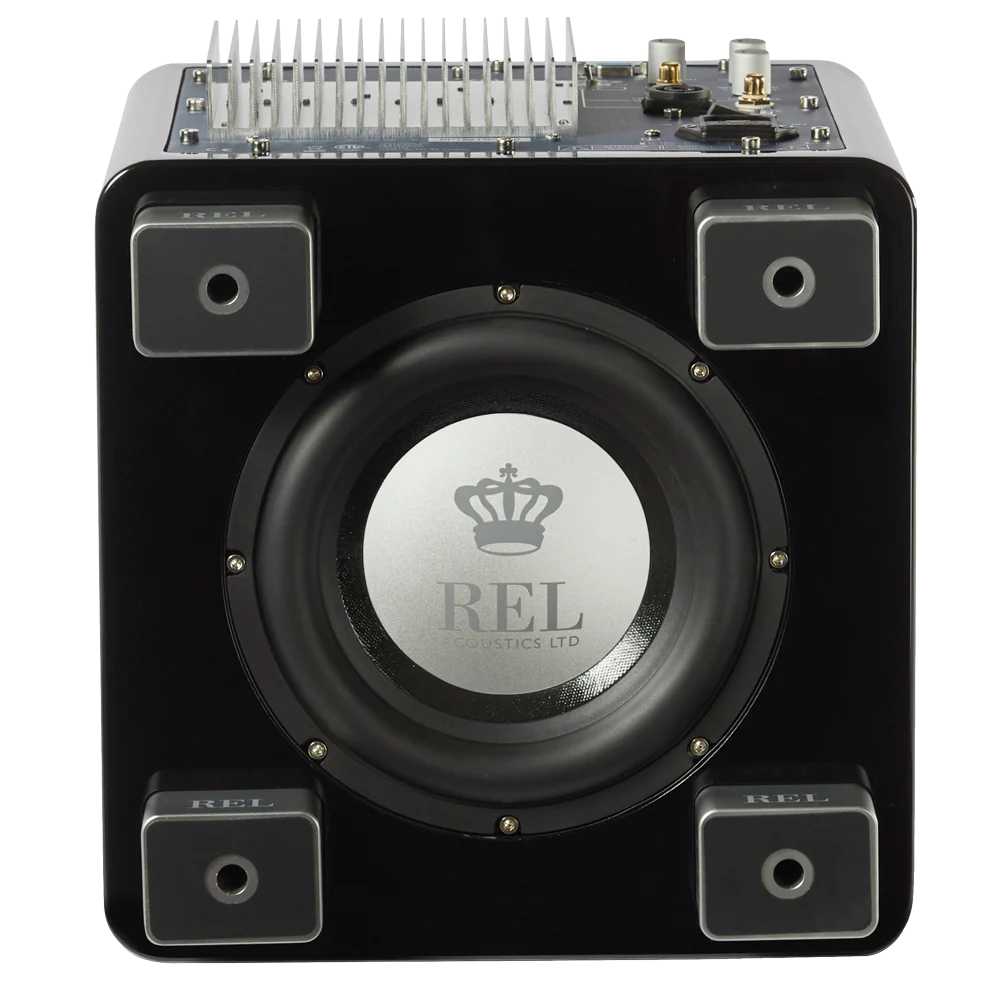

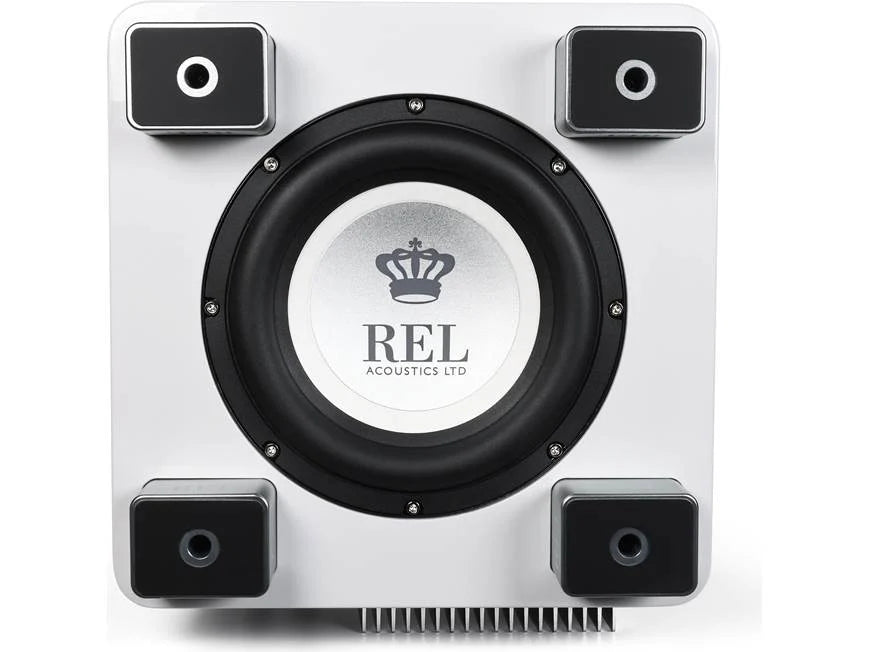

At the heart of T/5x is an 8-inch long-throw FibreAlloy driver utilizing a composite cone structure of aluminum and lightweight paper with an inverted alloy center cap. This carefully engineered design delivers outstanding speed, detail retrieval, and low-frequency extension while maintaining exceptional control.

Enhanced suspension components and increased excursion capability allow the driver to deliver deeper bass and greater dynamic authority than previous generations while preserving the agility and musicality that define REL subwoofers.

AMPLIFIER

T/5x utilizes a high-current 125-watt RMS Class A/B amplifier designed for exceptional transparency, speed, and reliability. REL's dedicated High-Level, Low-Level, and .1/LFE inputs allow seamless integration into both two-channel and home theater systems without requiring changes to system settings.

The amplifier incorporates REL's proprietary input filtering, crossover networks, and protection systems to ensure natural integration with main speakers while delivering precise, controlled low-frequency performance. A dedicated .1/LFE input allows independent optimization of movie and music playback.

WIRELESS

T/5x is compatible with REL's optional Arrow wireless system, providing uncompressed wireless signal transmission without the sonic compromises associated with traditional wireless audio solutions. Designed specifically for high-performance audio applications, Arrow maintains the speed, dynamics, and musicality expected from REL systems while offering greater placement flexibility.

WHAT'S IN THE BOX

• T/5x Subwoofer
• Protective Grille
• 6 ft. AC Power Cord
• 32 ft. Neutrik Speakon Cable
• User Manual & Warranty Information

SPECIFICATIONS / DIMENSIONS

Type: Closed Box, Down-Firing Driver
Active Driver: 8 in. (200mm) Long-Throw FibreAlloy Cone with Inverted Alloy Centre Cap, Steel Chassis
Amplifier Power: 125 Watts RMS
Amplifier Type: Class A/B
Low Frequency Extension: -6dB at 32Hz

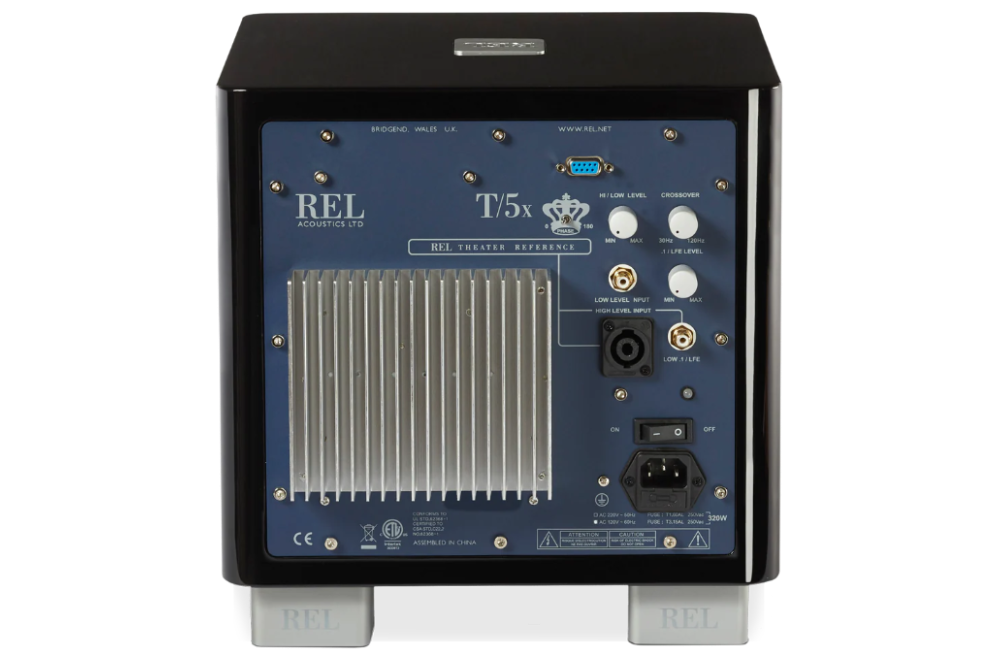

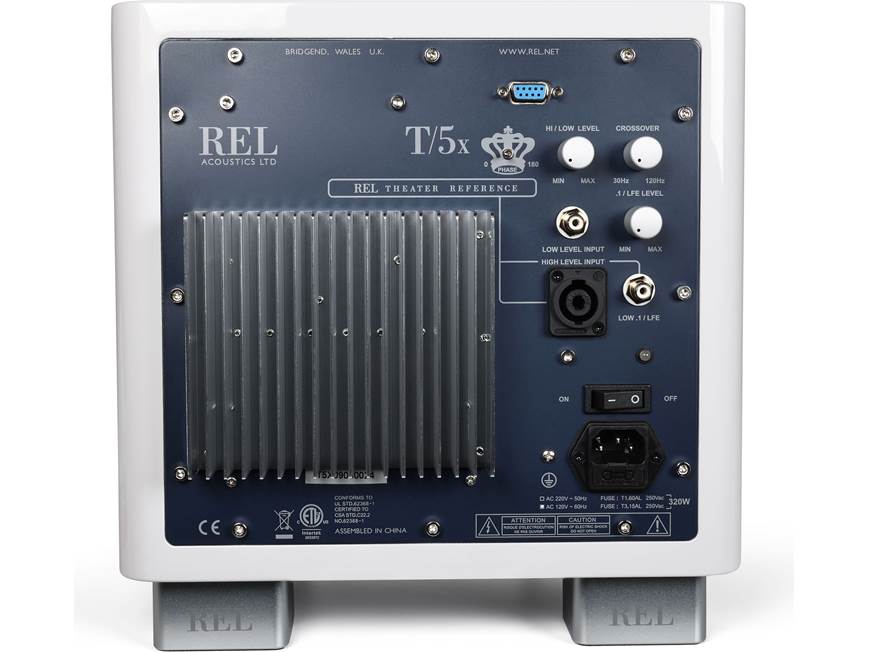

Inputs: High Level Neutrik Speakon, Low Level RCA, LFE RCA
Outputs: None
Wireless Capability: REL Arrow (Sold Separately)
Finish: Piano Black Lacquer, Gloss White Lacquer (5 Coats)
Protection System: Fully Electronic Set Safe
D.C. Fault Protection: Yes
Output Short Protection: Yes
Mains Voltage: 220-240V / 110-120V Depending on Market
Fuse Rating: 1.6 Amp Semi Delay (230V), 3.15 Amp Semi Delay (115V)
Included High-Level Cable: 10 Meter (32 ft.) Neutrik Speakon
Dimensions (W x H x D): 11.8 x 12.0 x 12.3 in. (300 x 307 x 313 mm)
Net Weight: 31.5 lbs. (14.3 kg)
