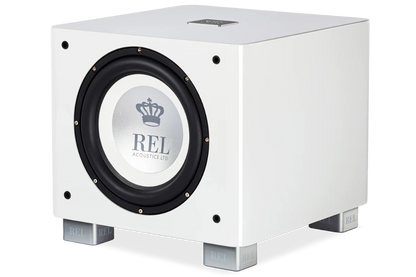

REL - T/9x - Powered Subwoofer

Featuring a powerful 300-watt Class A/B amplifier, a long-throw 10-inch FibreAlloy active driver, and a matching 10-inch passive radiator, T/9x produces bass that is rich, articulate, and effortlessly dynamic. It brings full-range authority to high-performance speakers while maintaining the natural integration and musical character that define the REL experience.

DESIGN

T/9x features a refined cabinet design that combines increased internal volume with a visually compact appearance. Carefully radiused corners and elegant proportions reduce visual mass while enhancing acoustic performance. The result is a cabinet that feels both modern and timeless while delivering greater fluidity and power than previous generations.

Available in Piano Black or Gloss White finishes with five hand-polished coats of lacquer, T/9x blends beautifully into a wide variety of listening environments while providing the rigidity required for exceptional bass performance.

DRIVER

At the heart of T/9x is a 10-inch long-throw FibreAlloy active driver paired with a 10-inch down-firing FibreAlloy passive radiator. The lightweight cone structure utilizes an aluminum center cap to increase stiffness while adding minimal mass, resulting in faster attack, greater transparency, and improved dynamic response.

Extensively revised suspension components and increased cabinet volume improve efficiency and control, allowing the driver system to deliver deeper bass, higher output, and superior articulation without sacrificing speed or musical accuracy.

AMPLIFIER

T/9x utilizes a high-current 300-watt RMS Class A/B MOSFET amplifier, continuing REL's long-standing tradition of combining musicality with outstanding reliability. Massive power reserves, upgraded MOSFET devices, and improved transformer mounting techniques contribute to enhanced transparency, dynamics, and long-term durability.

REL's legendary High-Level input, dedicated Low-Level input, and .1/LFE connection allow seamless integration into both two-channel and home theater systems. Fast filters and proprietary tuning help create a natural, effortless transition between speakers and subwoofer.

WIRELESS

T/9x is compatible with REL's optional Arrow wireless system, providing uncompressed wireless signal transmission without sacrificing dynamics, speed, or tonal accuracy. Designed specifically for high-performance audio applications, Arrow delivers installation flexibility while preserving the musical integrity of the source signal.

WHAT'S IN THE BOX

• T/9x Subwoofer
• Protective Grille
• 6 ft. AC Power Cord
• 32 ft. Neutrik Speakon Cable
• User Manual & Warranty Information

SPECIFICATIONS / DIMENSIONS

Type: Front-Firing Active Driver, Down-Firing Passive Radiator
Active Driver: 10 in. (250mm) Long-Throw FibreAlloy Cone with Inverted Alloy Centre Cap, Steel Chassis
Passive Radiator: 10 in. (250mm) Long-Throw FibreAlloy Cone with Inverted Alloy Centre Cap, Steel Chassis
Amplifier Power: 300 Watts RMS
Amplifier Type: Class A/B
Low Frequency Extension: -6dB at 27Hz
Inputs: High Level Neutrik Speakon, Low Level RCA, LFE RCA
Outputs: None
Wireless Capability: REL Arrow (Sold Separately)
Available Finishes: Piano Black Lacquer, Gloss White Lacquer
Finish: 5-Coat High Gloss Lacquer
Protection System: Fully Electronic Set Safe
D.C. Fault Protection: Yes
Output Short Protection: Yes
Mains Voltage: 220-240V / 110-120V Depending on Market
Fuse Rating: 3.15 Amp Semi Delay (230V), 6.3 Amp Semi Delay (115V)
Included High-Level Cable: 10 Meter (32 ft.) Neutrik Speakon
Dimensions (W x H x D): 14.5 x 13.4 x 15.5 in. (370 x 340 x 393 mm)
Net Weight: 45.5 lbs. (20.6 kg)
