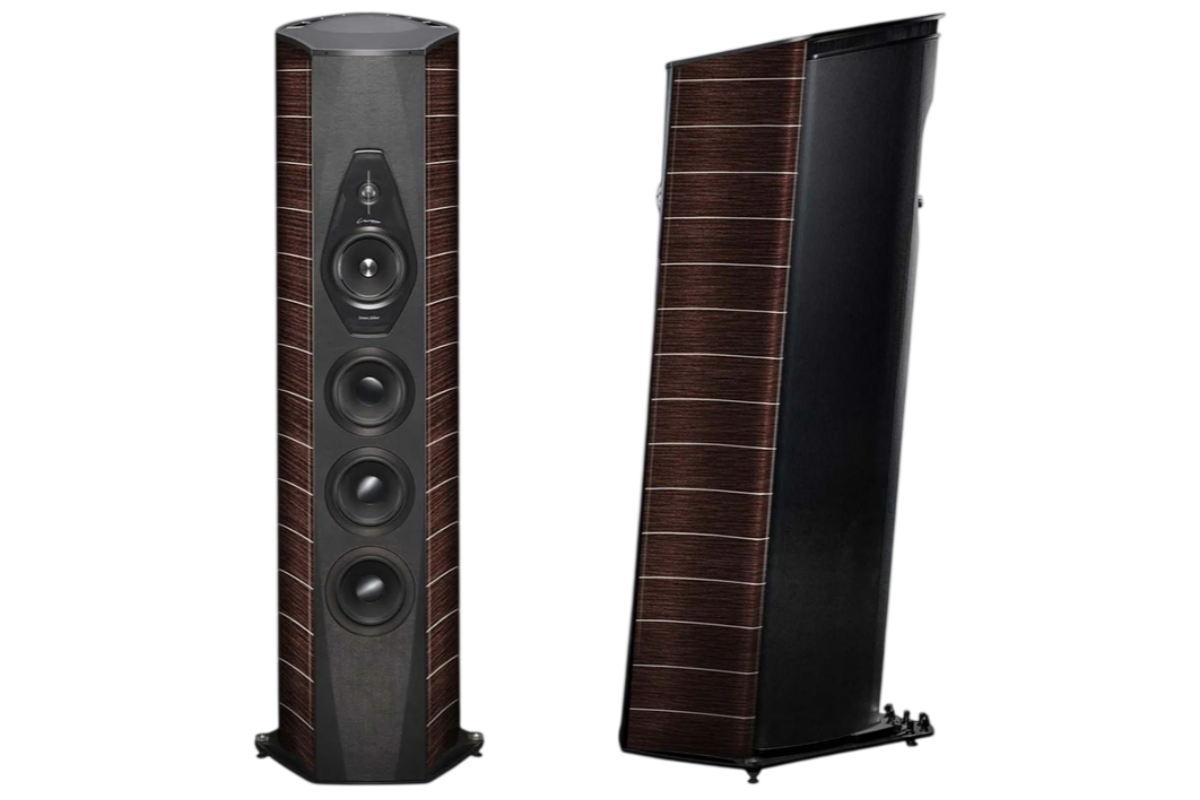

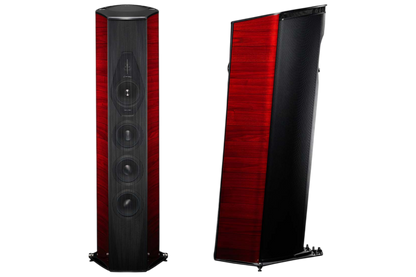

Lilium represents one of the most ambitious loudspeaker projects in Sonus faber's history, bringing together over three decades of engineering, craftsmanship, and acoustic innovation. Building upon the technological foundations established by legendary models such as Aida, Amati Futura, and Guarneri Evolution, Lilium embodies the perfect balance between traditional Italian artistry and advanced loudspeaker engineering.
Designed as a no-compromise reference loudspeaker, Lilium combines Sonus faber's signature use of natural materials with groundbreaking technologies including Zero Vibration Transmission (ZVT), Stealth Reflex loading, and the acclaimed DAD Arrow Point tweeter. The result is a loudspeaker capable of extraordinary transparency, dynamic realism, and musical engagement while delivering deep, authoritative bass and breathtaking soundstage reproduction.

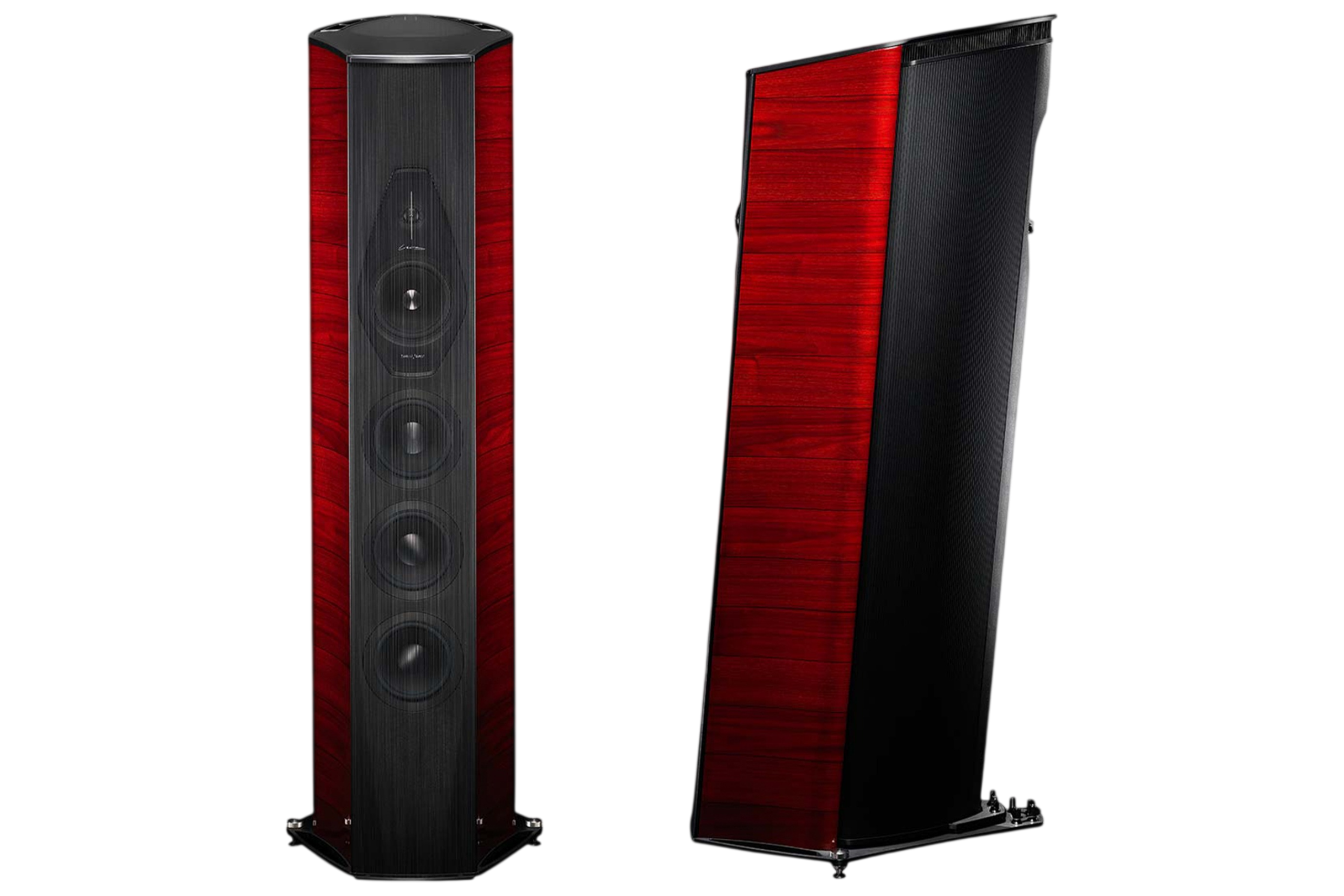

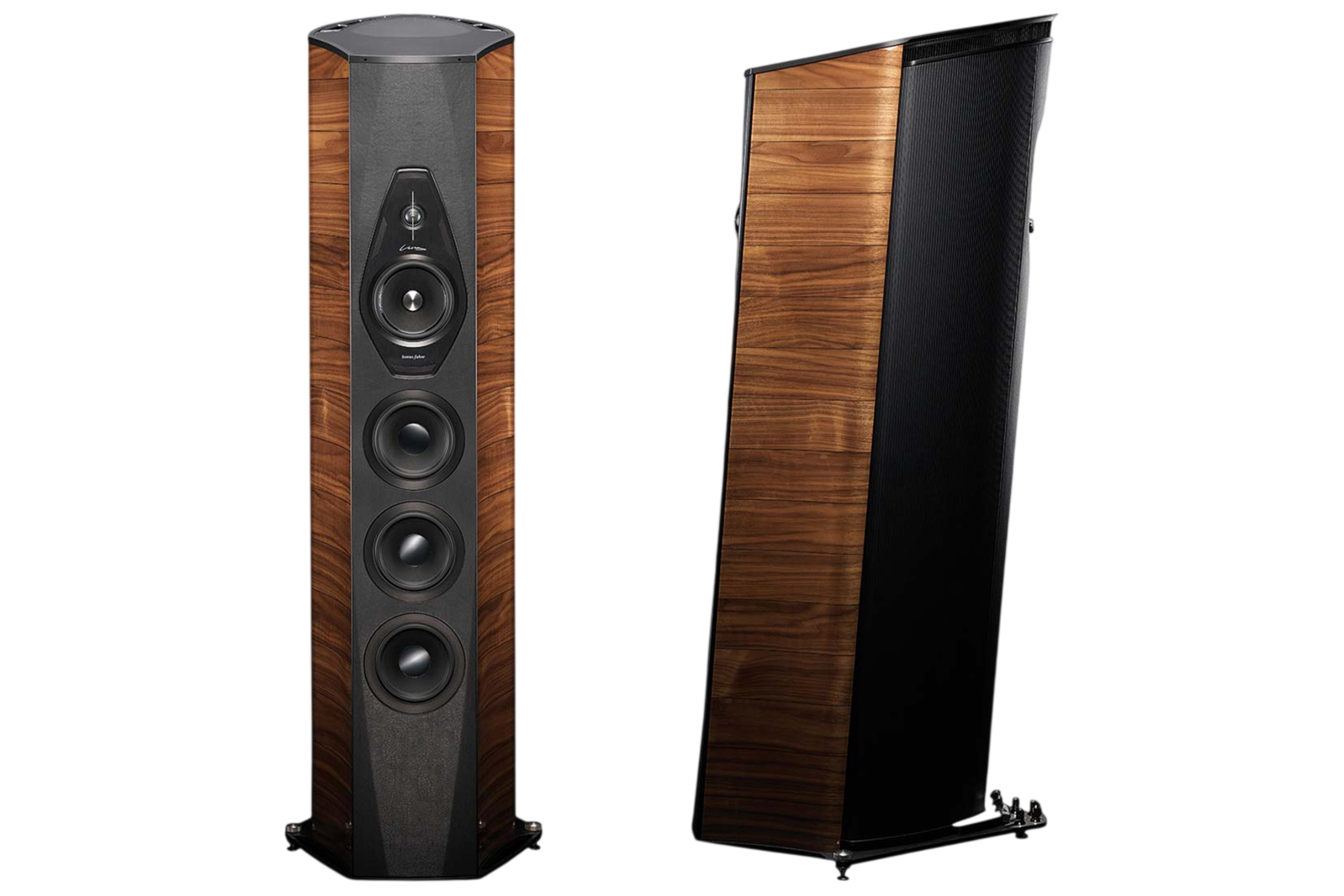

Available in High Gloss Wood finishes.
FEATURES
- 3.5-way orthogonal non-interactive dual enclosure design
- Stealth Reflex para-aperiodic vented cabinet system
- Zero Vibration Transmission (ZVT) technology
- Decoupled infra-woofer enclosure with passive radiator loading
- DAD Arrow Point extended-range tweeter technology
- Triple 180mm sandwich-cone woofer array
- 260mm dedicated infra-woofer system with adjustable output level
- Anima Legata structural damping architecture
- Tuned Mass Damper vibration control system
- Premium crossover components throughout
- Handcrafted Italian cabinet construction
SPECIFICATIONS
System: 3.5-Way Orthogonal Non-Interactive Dual Enclosure, Full Para-Aperiodic Vented Box

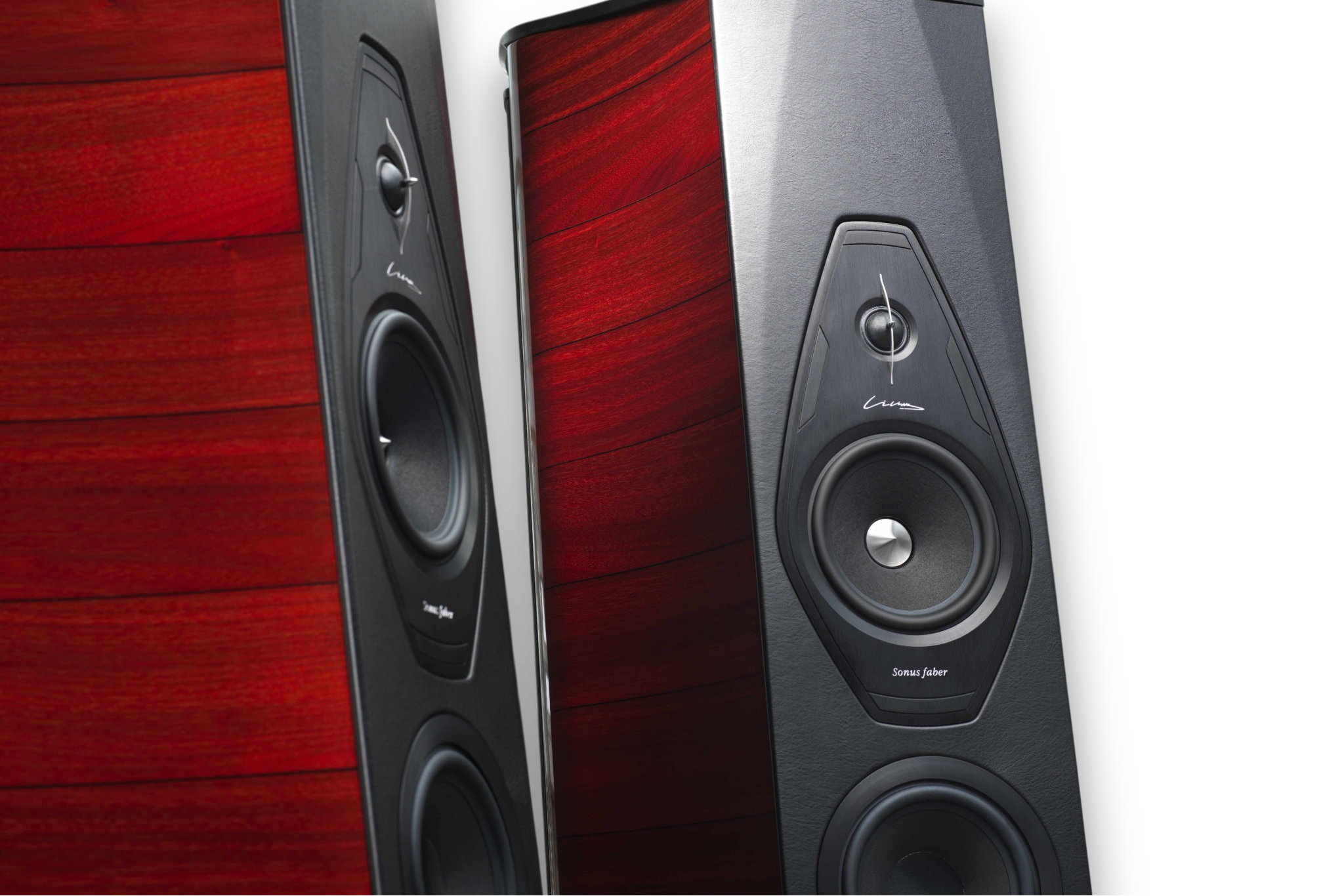

Tweeter: 28mm H28 XTR-04 DAD™ Arrow Point Extended Range Soft Dome with Neodymium Motor System
Midrange: 180mm M18 XTR-04 Neodymium Midrange Driver
Woofers: Three 180mm W18XTR-16 Sandwich Cone Woofers
Infra Woofer: 260mm SW26XT-08 Long Throw Infra Woofer
Crossover Frequencies: 55Hz, 150Hz, 200Hz, 3000Hz
Frequency Response: 20Hz – 35,000Hz
Sensitivity: 92dB SPL (2.83V/1m)
Nominal Impedance: 4 Ohms
Recommended Amplifier Power: 100W – 800W
Connectivity: 6 Binding Posts (Mid/High, Low, Sub)
Decoupling System: ZVT (Zero Vibration Transmission)
CABINET CONSTRUCTION

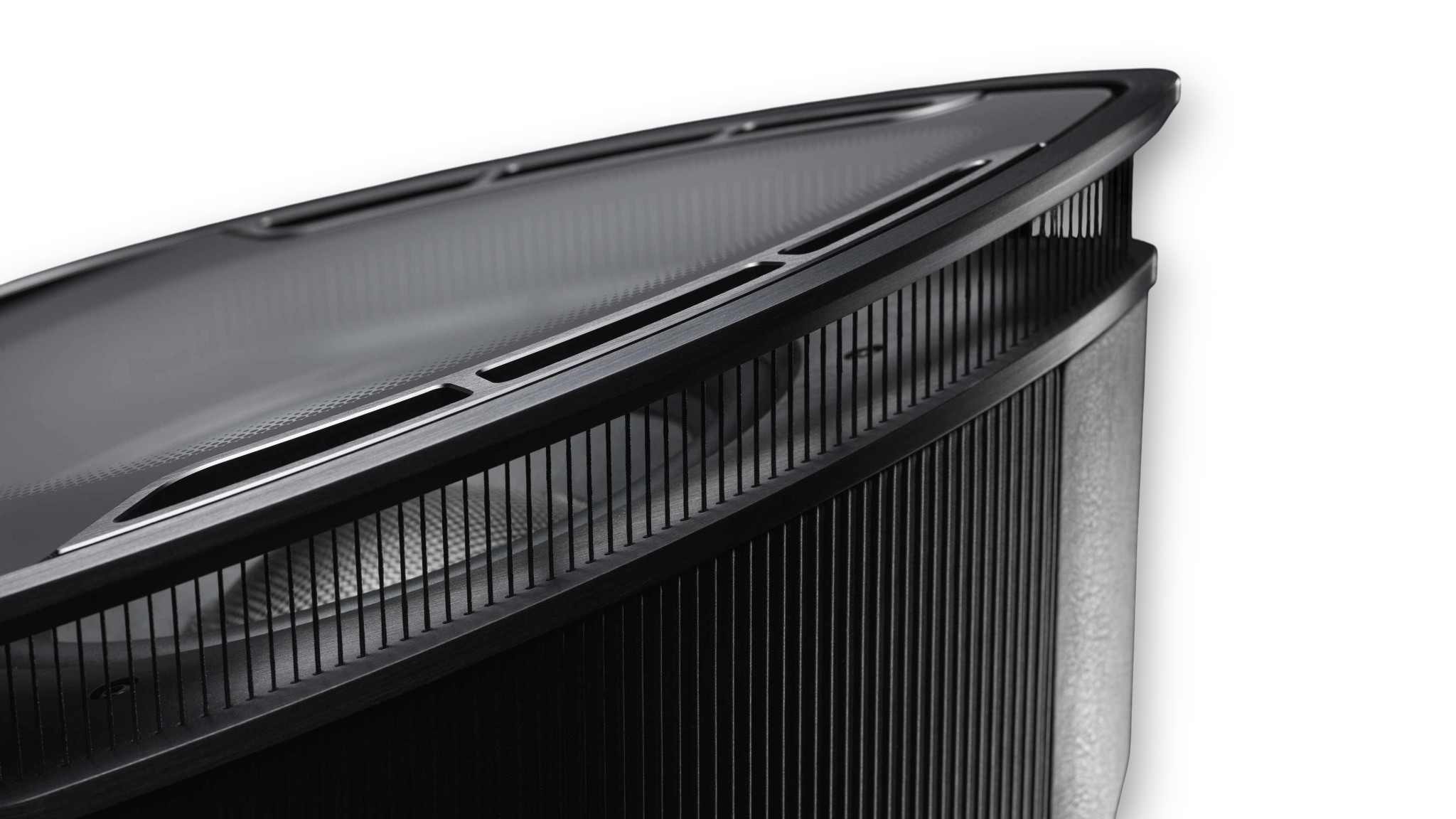

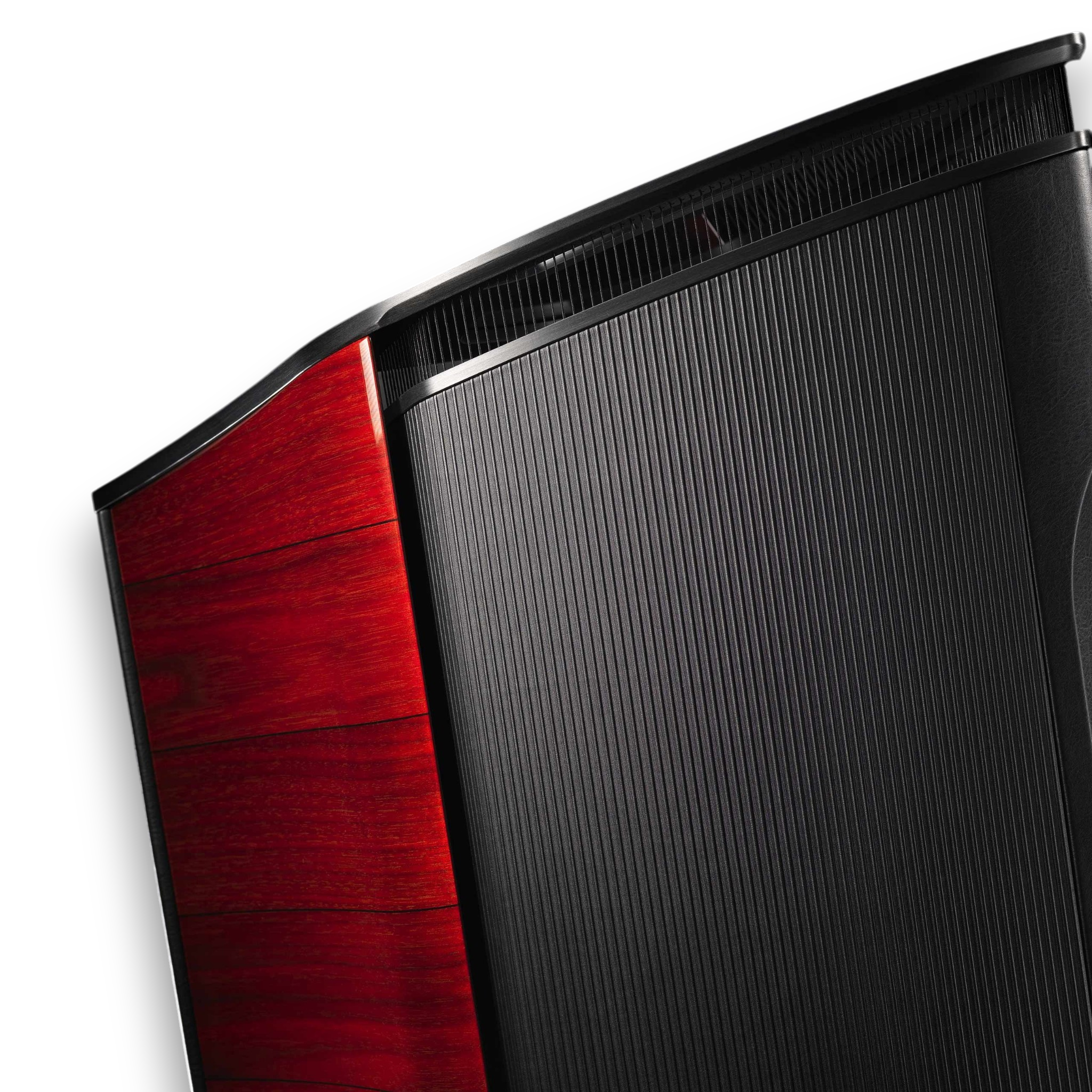

Lilium utilizes Sonus faber's distinctive Lyra-shaped cabinet architecture with progressive-thickness triple-curvature side walls designed to disperse resonances and eliminate standing waves. Internal structural ribs, CNC-machined avional vibration dampers, Anima Legata reinforcement, and dual tuned mass dampers work together to suppress cabinet coloration and mechanical vibration.
The infra-woofer enclosure is physically decoupled from the primary cabinet using Zero Vibration Transmission technology, minimizing acoustic feedback and preventing vibration transfer to the listening environment. Orthogonal placement of the main and subwoofer enclosures further reduces intermodulation distortion for enhanced clarity and realism.
DIMENSIONS & WEIGHT
Dimensions (H × W × D): 63.0 × 19.3 × 27.7 in. (1600 × 491 × 705 mm) Each
Shipping Dimensions (H × W × D): 74.4 × 23.6 × 31.4 in. (1890 × 600 × 800 mm) Each
Weight: 227.1 lbs. (103 kg) Each
Shipping Weight: 343.9 lbs. (156 kg) Each
FINISHES
Cabinet: High Gloss Wood
Accents: Black Leather
Hardware: Aluminum
