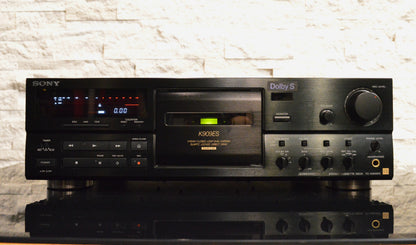

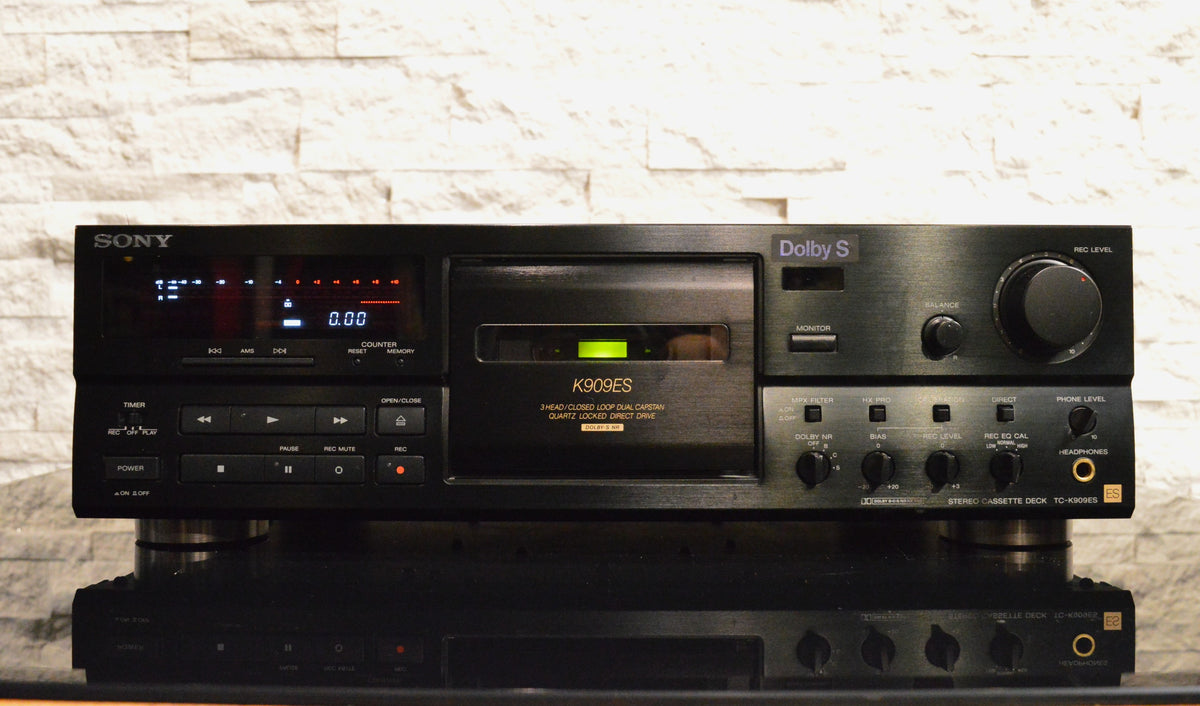

Sony TC-K909ES 3-Head ES Series Cassette Deck - Black - Fully Serviced

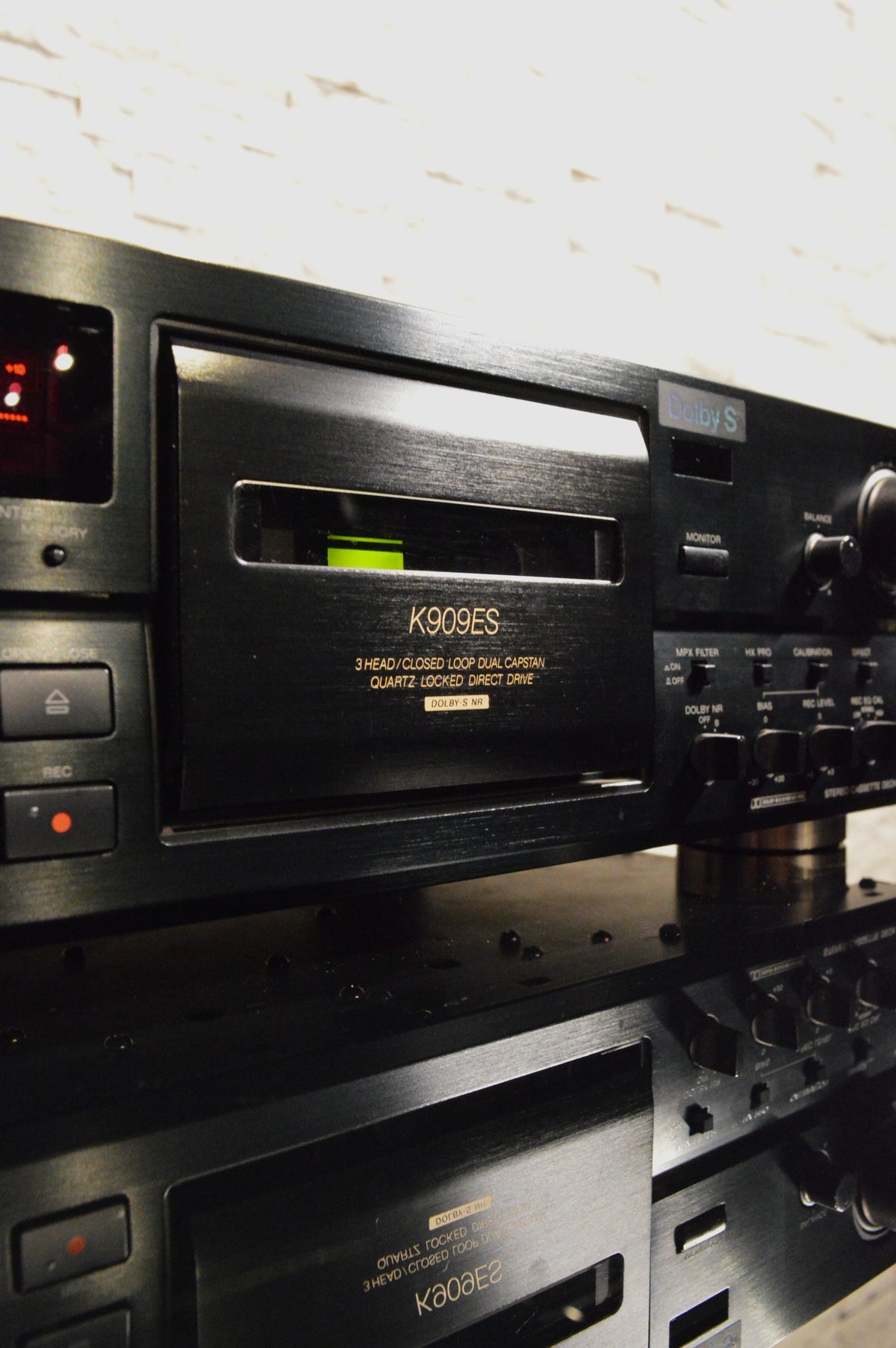

The Sony TC-K909ES is a high-end 3-head stereo cassette deck from Sony’s renowned ES (Elevated Standard) series. Introduced in the early 1990s, it was engineered as a serious reference deck with a quartz-locked direct-drive transport, closed-loop dual-capstan mechanism, and Sony’s PPR Laser Amorphous record and playback heads.

The TC-K909ES supports Normal, Chrome, and Metal tapes and includes Dolby B, C, and S noise reduction along with Dolby HX Pro. Its manual two-tone calibration system allows precise adjustment of bias, record level, and equalization, while the digital peak meters and real-time tape counter provide accurate monitoring during recording and playback.

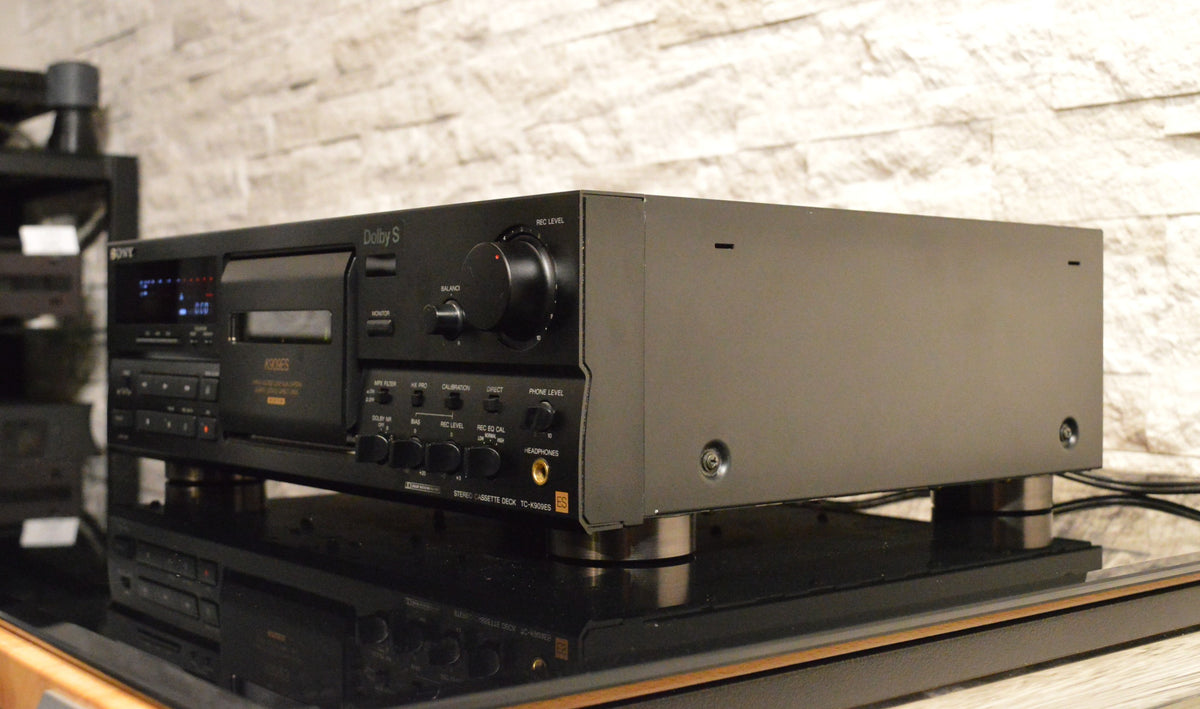

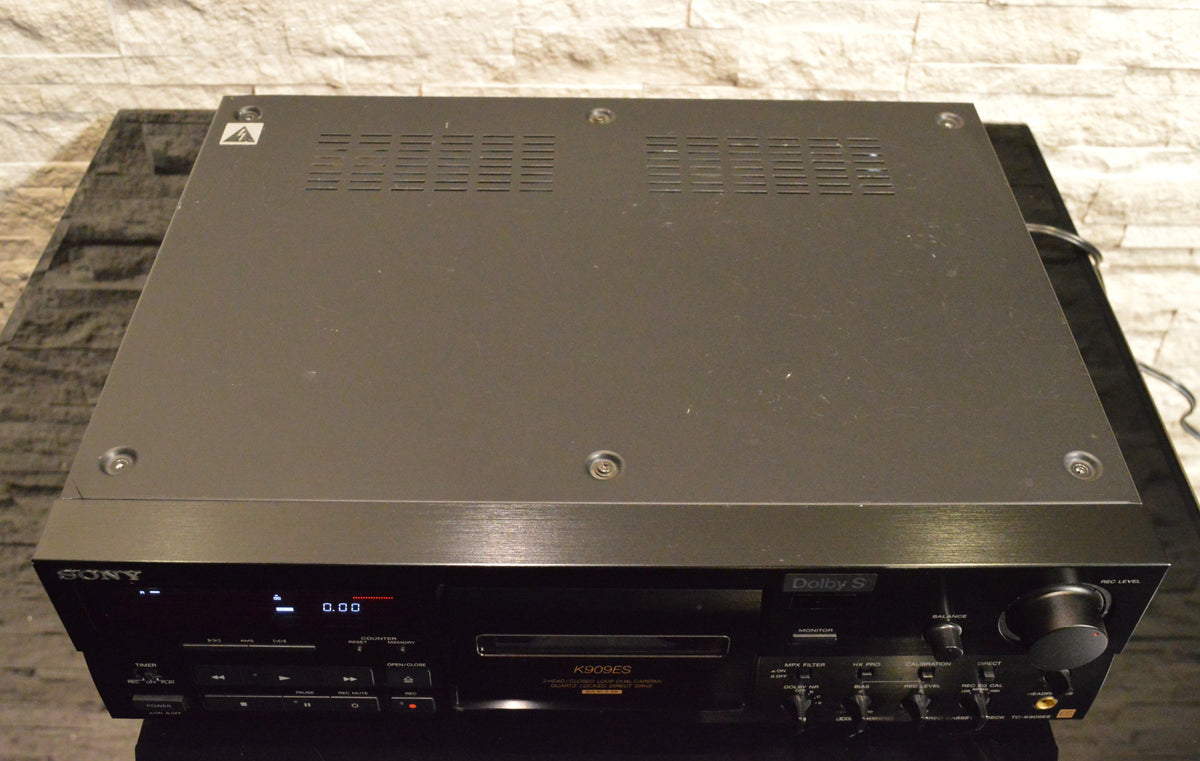

This TC-K909ES has been fully serviced and cleaned, including the installation of new belts. The deck was gone through to ensure the transport and controls are operating properly and is ready to be put back into regular use. Cosmetically, the faceplate is in good condition and presents well. There are scratches on the top of the machine from previous use, as shown in the photos.

FEATURES:

• Sony ES-series 3-head stereo cassette deck
• Separate record, playback, and erase heads
• PPR Laser Amorphous record and playback heads
• Quartz-locked direct-drive capstan motor
• Closed-loop dual-capstan transport
• Three-motor computer-controlled transport system

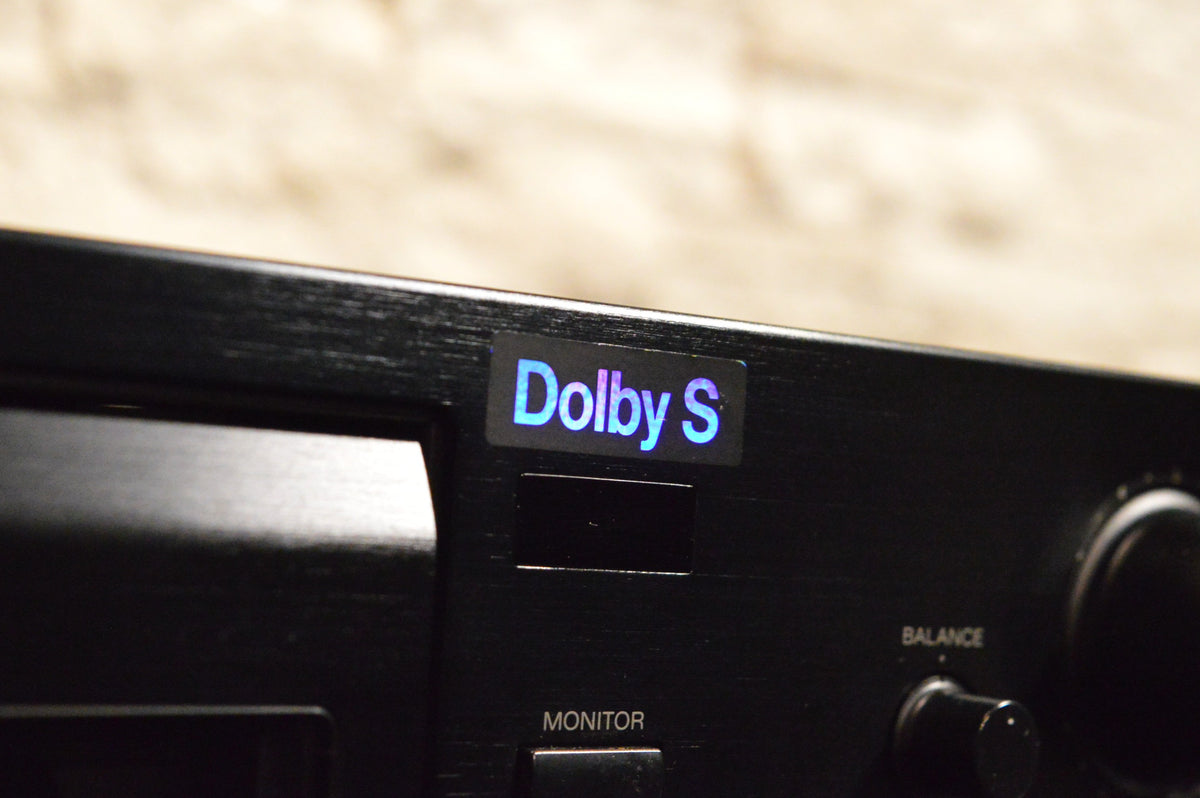

• Dolby B, C, and S noise reduction
• Dolby HX Pro headroom extension
• Two-tone manual tape calibration

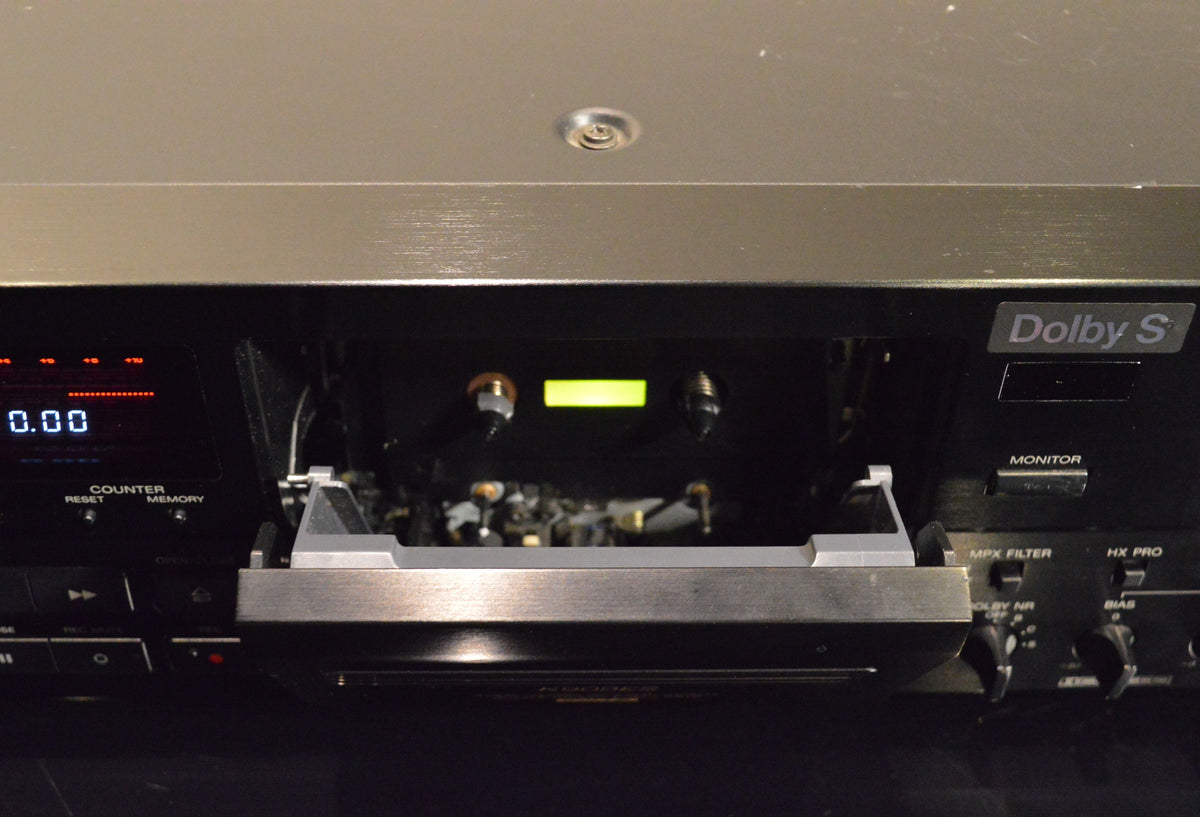

• Motorized cassette loading door

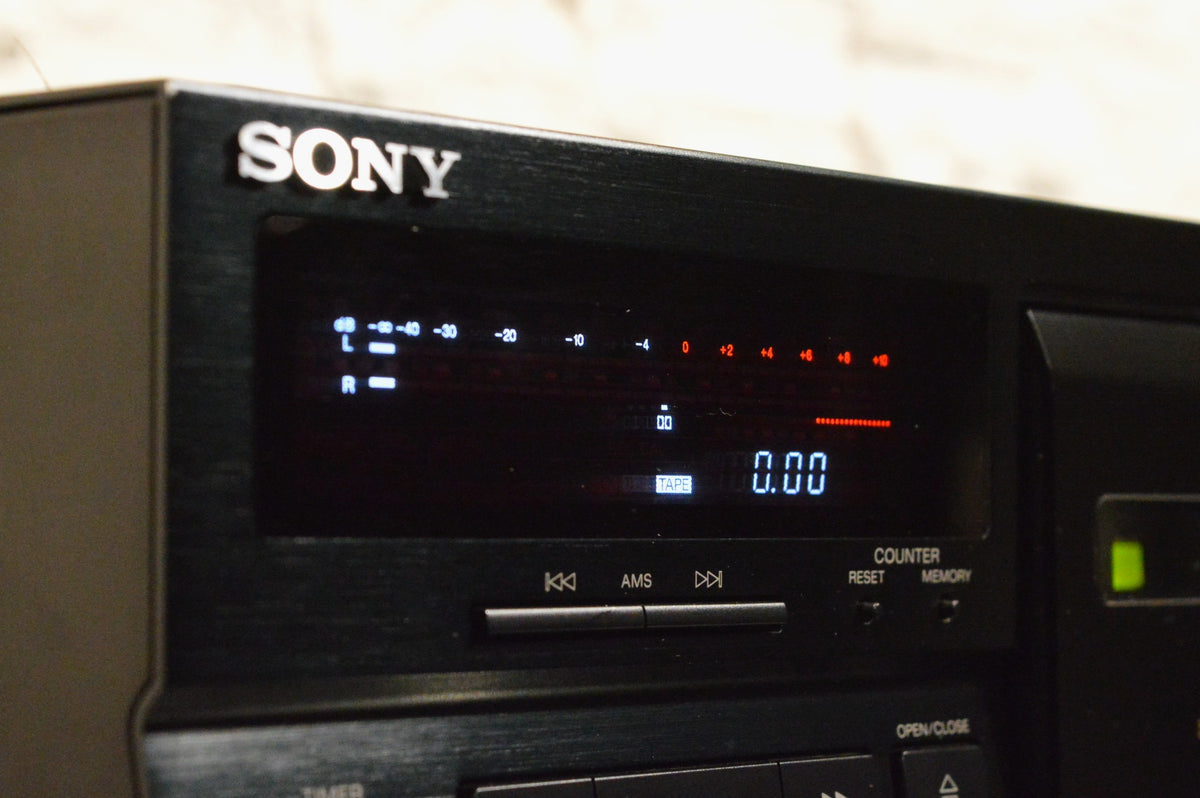

• Digital peak-level meters with peak hold
• 4-digit real-time tape counter
• Automatic tape-type detection
• Gold-plated RCA connections

TRANSPORT & HEAD SYSTEM:

• Configuration: 4-Track, 2-Channel Stereo
• Head System: 3 Head
• Record Head: PPR Laser Amorphous
• Playback Head: PPR Laser Amorphous
• Erase Head: Dedicated Erase Head
• Tape Speed: 4.8 cm/s
• Capstan Motor: Quartz-Locked Direct-Drive Linear-Torque BSL Motor
• Reel Motor: DC Motor
• Mechanism Drive Motor: DC Motor
• Transport: Closed-Loop Dual Capstan
• Wow & Flutter: ±0.022% W.RMS (NAB)
• Wow & Flutter: ±0.04% W.Peak (IEC)
• Wow & Flutter: ±0.065% W.Peak (DIN)

AUDIO PERFORMANCE:

• Type I Tape Frequency Response: 15Hz–17kHz
• Type II Tape Frequency Response: 15Hz–20kHz
• Type IV Metal Tape Frequency Response: 15Hz–22kHz
• Signal-to-Noise Ratio, Dolby Off: Approx. 61dB
• Signal-to-Noise Ratio, Dolby B: Approx. 70dB
• Signal-to-Noise Ratio, Dolby C: Approx. 76dB
• Signal-to-Noise Ratio, Dolby S: Approx. 85dB
• Harmonic Distortion: Approx. 1.5% with Type IV Metal Tape
• Bias System: AC Bias with Adjustable Calibration

CONTROLS & CONNECTIVITY:

• Calibration: Adjustable Bias, Record Level, and EQ
• Noise Reduction: Dolby B / C / S
• Headroom Extension: Dolby HX Pro
• Additional Control: MPX Filter
• Line Input: Gold-Plated Stereo RCA
• Line Output: Gold-Plated Stereo RCA
• Headphone Output: Front-Panel Headphone Jack with Level Control
• Display: Digital Peak-Level Meters with Peak Hold
• Tape Counter: 4-Digit Real-Time Digital Counter

SERVICE PERFORMED:

• Fully serviced and cleaned
• New transport belts installed
• Transport and operating functions checked following service
• Controls and mechanism checked for proper operation
• Tested following service and ready for regular use

CONDITION:

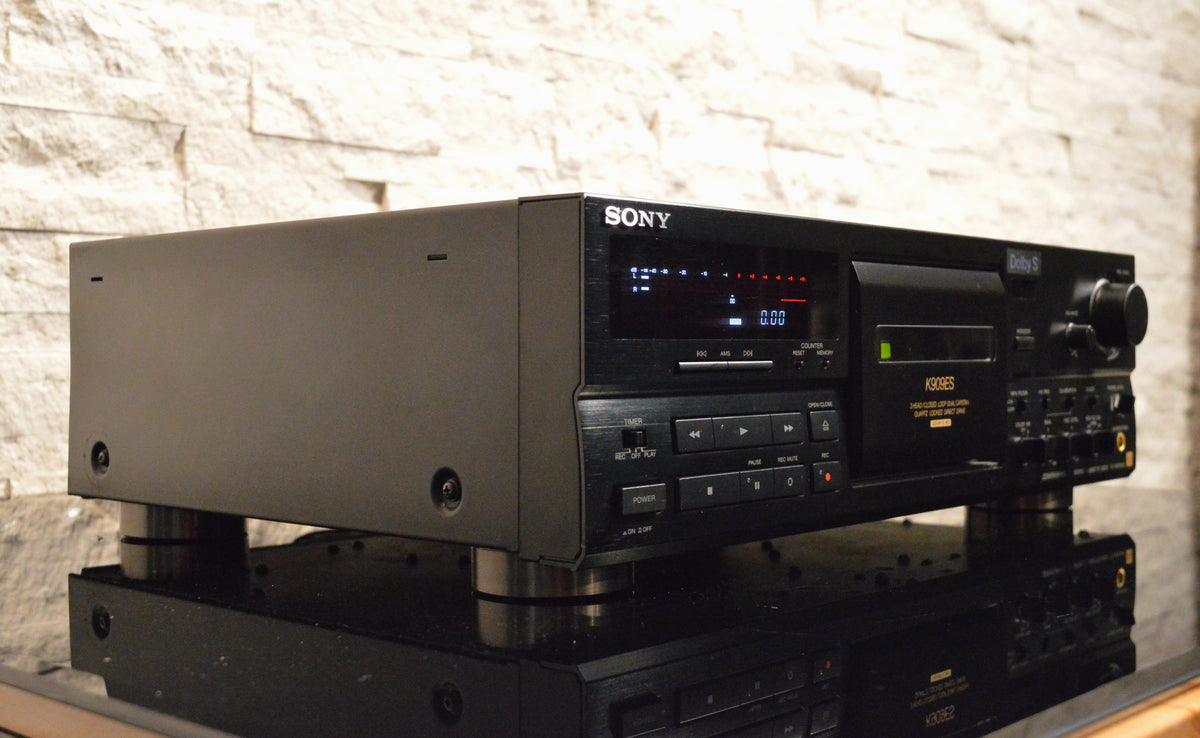

Good pre-owned condition. The front faceplate is in good cosmetic condition and presents well. There are visible scratches on the top of the machine from previous use. The deck has been fully serviced and cleaned with new belts installed and has been tested following service. Please review all photos carefully for the exact cosmetic condition and everything included.
