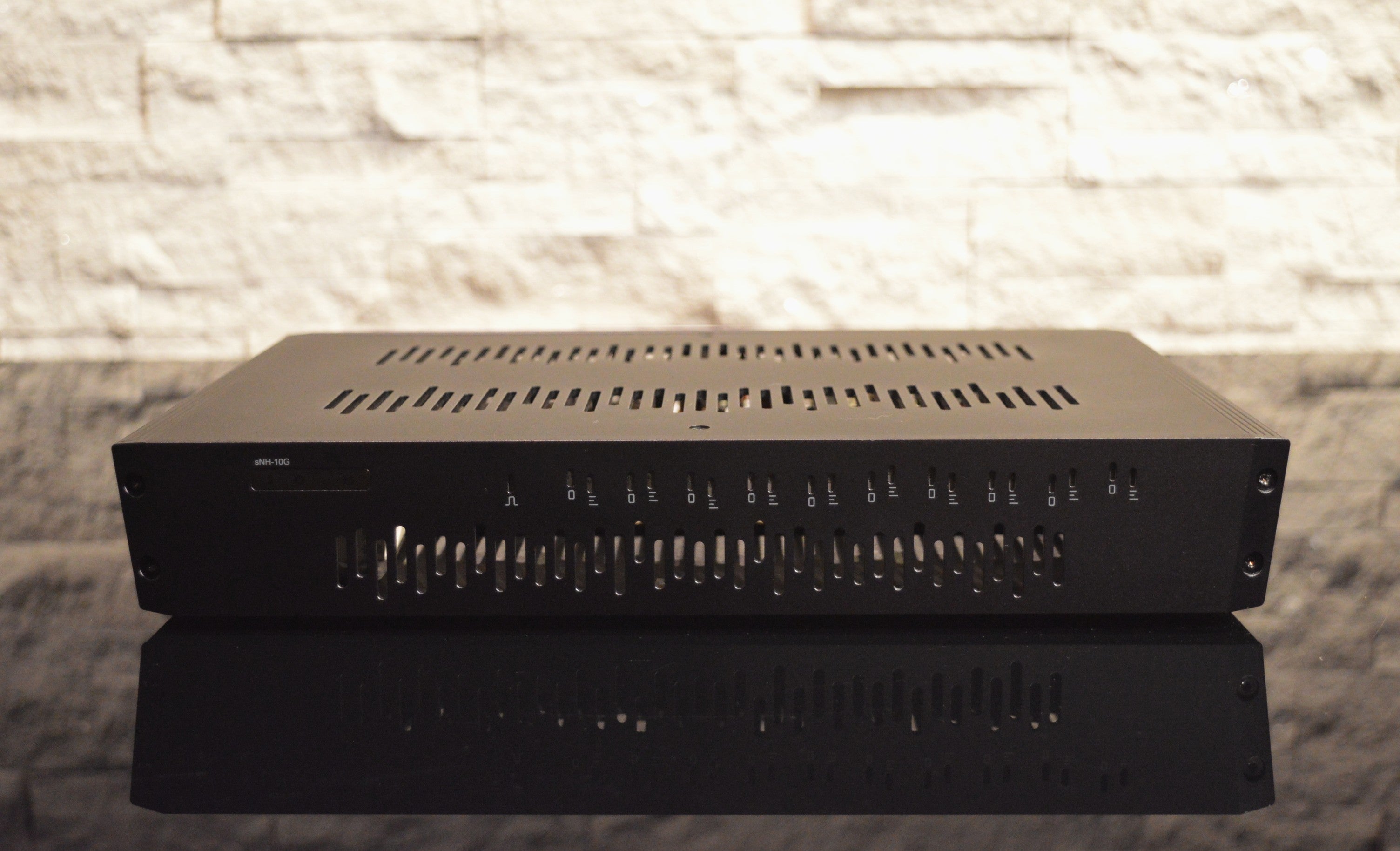

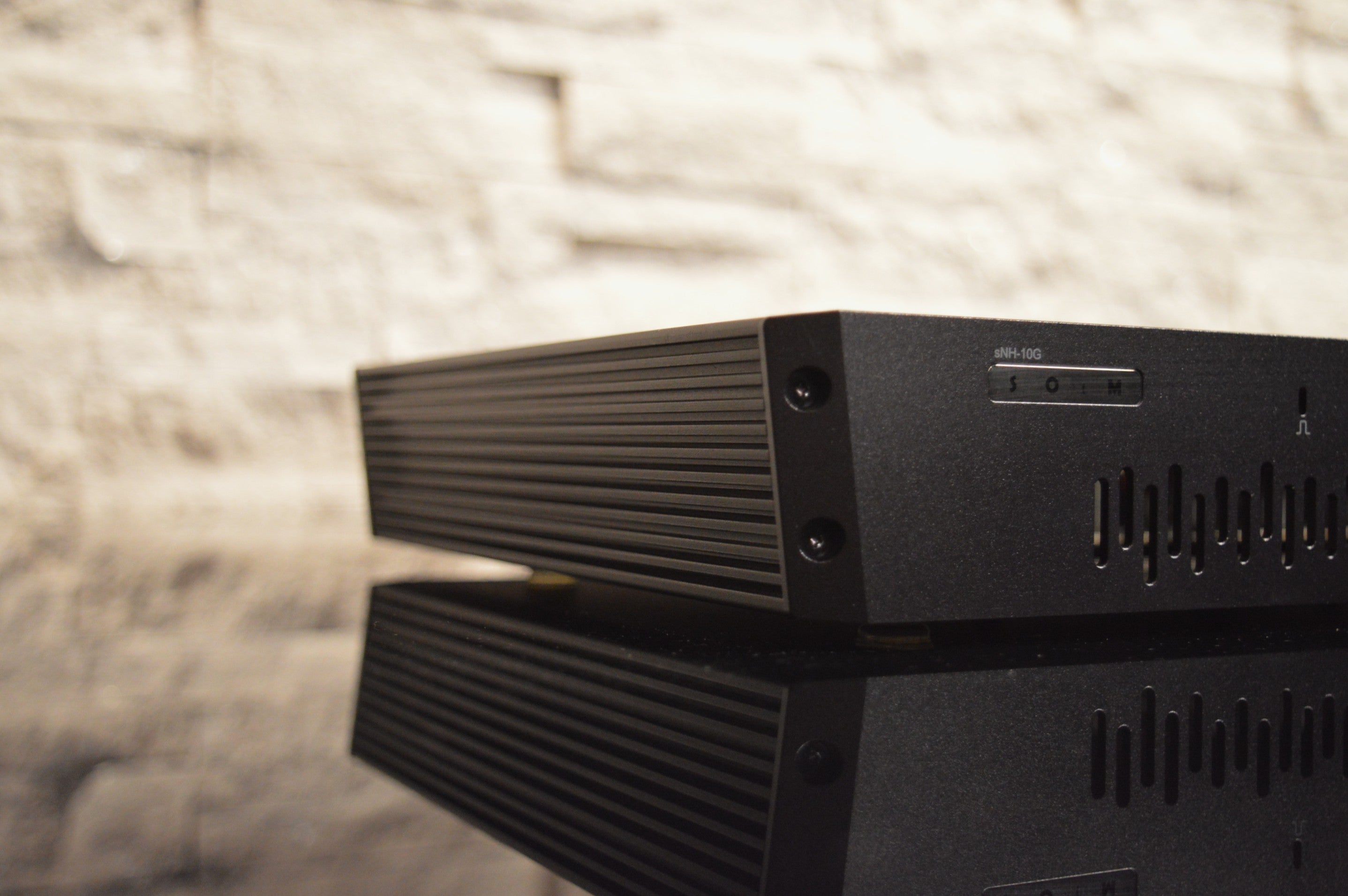

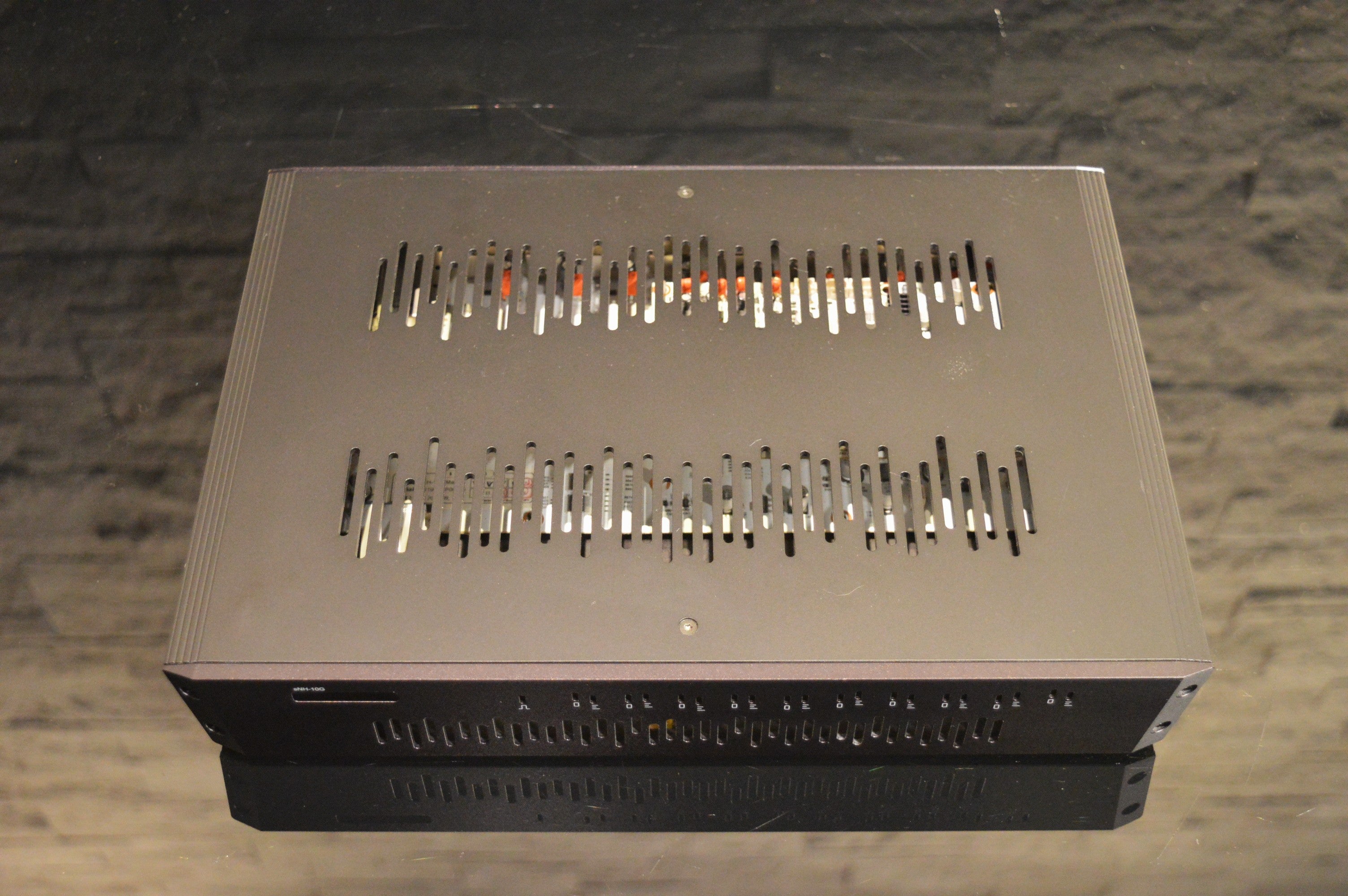

SOtM - sNH-10G - Audiophile Network Switch w/ sCLK-EX Clock Upgrade - Black

The SOtM sNH-10G is a purpose-built high-end network switch engineered specifically for network audio systems. Rather than approaching Ethernet switching as a conventional IT task, SOtM designed the sNH-10G with specialized noise filtering and audio-focused circuitry intended to minimize electrical noise introduced into sensitive streaming and digital playback components.

This example features the upgraded sCLK-EX high-end internal clock, providing a more sophisticated clocking architecture than the standard sNH-10G. Eight Gigabit-capable RJ45 Ethernet ports and two SFP ports provide considerable flexibility for integrating streamers, servers, NAS devices, network bridges, and fiber connections into a dedicated audio network.

This SOtM sNH-10G features the black finish and is in excellent pre-owned condition with minimal signs of previous use. It presents exceptionally well and is an excellent addition to a high-performance network-based digital audio system.

FEATURES:

• sCLK-EX high-end internal clock upgrade
• Designed specifically for high-end network audio applications
• Specially designed Ethernet noise filtering
• Eight RJ45 Ethernet ports for extensive system connectivity
• Two SFP ports for compatible fiber-optic network configurations
• Supports 10Mbps, 100Mbps, and Gigabit Ethernet
• LED indicator on/off function for reduced interference during listening
• Supports full-duplex and half-duplex operation
• Jumbo frame support
• Wide-range DC power compatibility
• Substantial aluminum chassis designed for high-end audio systems

NETWORK SPECIFICATIONS:

• 10Base-T: IEEE 802.3 Ethernet
• 100Base-TX: IEEE 802.3u Fast Ethernet
• 100Base-FX: IEEE 802.3u, 100Mbps over fiber optic
• 1000Base-T: IEEE 802.3ab Gigabit Ethernet
• 1000Base-X: IEEE 802.3z, 1Gbps over fiber optic
• Flow Control: IEEE 802.3x flow control and backpressure
• Operation: Full-duplex and half-duplex
• Jumbo Packet Length: Up to 9216 bytes

CONNECTIVITY:

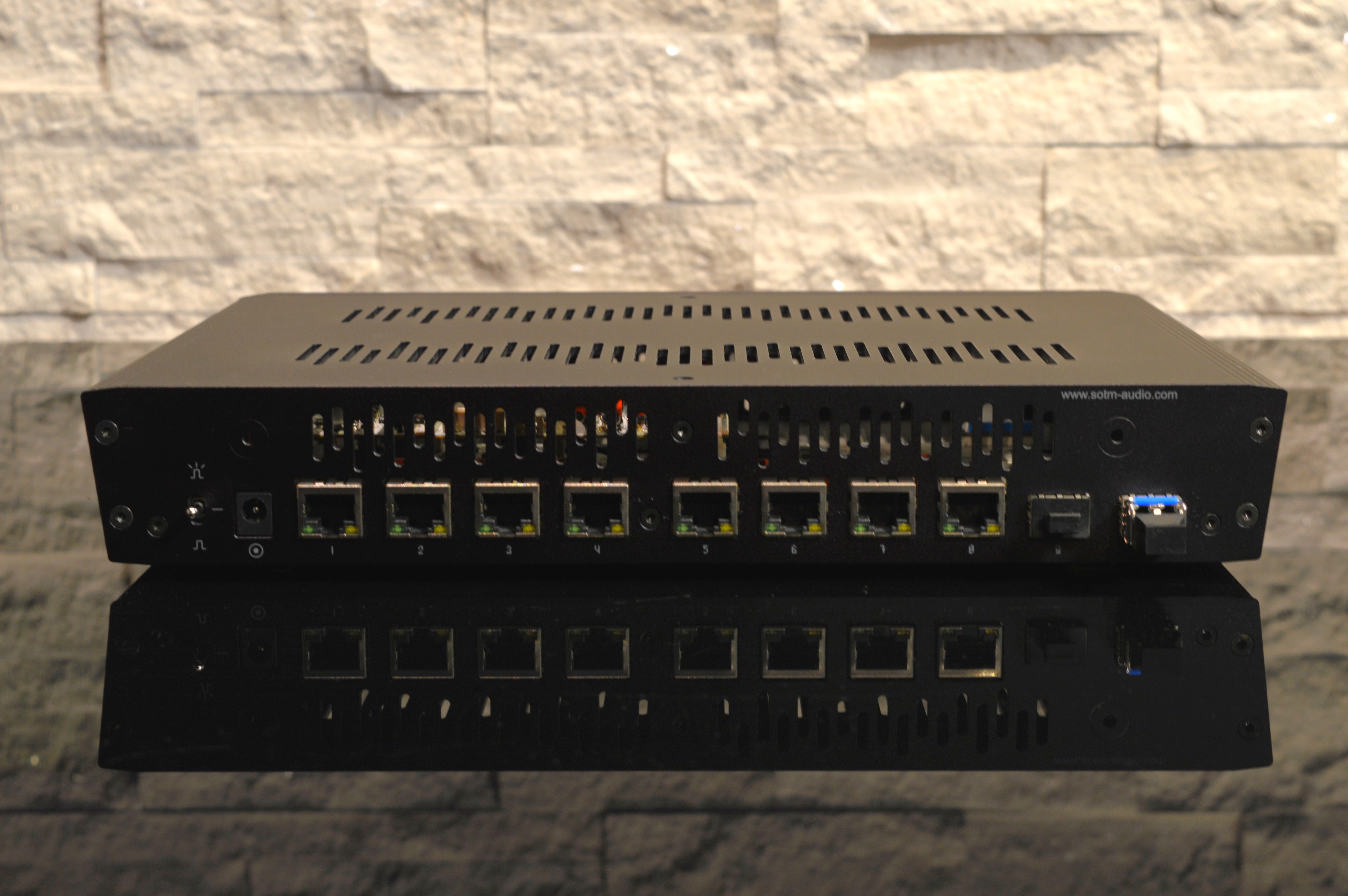

• RJ45 Ethernet Ports: 8
• SFP Ports: 2
• Internal Clock: sCLK-EX high-end clock module

USER INTERFACE:

• Power Indicator: 1 LED
• Link Indicators: 10 front LEDs / 8 rear LEDs
• Activity Indicators: 10 front dual-color LEDs / 8 rear LEDs
• Power Switch: Off / On with LEDs / On without LEDs

POWER:

• DC Input: 6.5–8.5V DC, 9V DC, or 12V DC depending on configuration
• Voltage Tolerance: ±10%
• Maximum Input Current: 2A
• DC Connector: 5.5mm OD / 2.1mm ID

PHYSICAL SPECIFICATIONS:

• Dimensions (W x D x H): 296 x 211 x 50 mm
• Weight: Approx. 2 kg (4.4 lbs.)
• Finish: Black

OPERATING ENVIRONMENT:

• Operating Temperature: +10°C to +30°C
• Storage Temperature: 0°C to +40°C
• Operating / Storage Humidity: 10%–90%

CONDITION:

Excellent pre-owned condition with minimal signs of previous use. The unit is clean and presents exceptionally well. Please review all photos carefully for the exact cosmetic condition and everything included.
