The Vertere Magneto Dual Moving Magnet Phono Cartridge is a precision-engineered entry-level cartridge designed to deliver exceptional musical performance, impressive tracking ability, and refined analog playback well beyond its class. Developed to exacting standards, the Magneto combines advanced dual magnet generator technology with carefully optimized stylus geometry to provide an engaging and highly musical listening experience.
Designed around a unique dual magnet architecture inspired by professional record cutting heads, the Magneto achieves excellent channel separation, low crosstalk, and highly efficient signal generation. Combined with its finely polished elliptical stylus and lightweight aluminium cantilever, the Magneto offers outstanding groove tracing accuracy, low surface noise, and dynamic musical presentation ideal for both new and experienced vinyl enthusiasts.
DUAL MOVING MAGNET DESIGN
The Magneto utilizes a dual moving magnet architecture designed to replicate the geometry of a professional record cutting head. Its unique “V” shaped twin magnet structure mirrors the left and right groove walls of the vinyl record, contributing to improved channel separation and highly accurate signal retrieval.
ADVANCED CHANNEL SEPARATION
A dedicated permalloy center shield plate positioned between the dual magnet assemblies helps reduce electrical crosstalk while improving high-frequency performance. This sophisticated arrangement delivers channel separation typically exceeding 40dB for enhanced stereo imaging and musical precision.
ELLIPTICAL STYLUS PERFORMANCE
The Magneto features a finely polished bonded elliptical stylus optimized for excellent tracking ability and quiet groove tracing performance. The stylus is mounted to an aluminium tube cantilever engineered to maintain high-frequency extension while minimizing unwanted surface noise during playback.
HIGH EFFICIENCY GENERATOR
Laminated para-toroidal coils combined with the cartridge’s dual magnet geometry provide highly efficient output signal generation with strong dynamics and musical engagement. The resulting sound signature delivers excellent energy, detail, and tonal balance for a cartridge within this category.
DG-1 SYSTEM INTEGRATION
The Magneto is factory fitted to Vertere’s DG-1 Plug & Play Dynamic Groove turntable package, where it has been specifically selected to complement the turntable’s tonearm and suspension characteristics for optimized musical performance and ease of setup.
FEATURES
- Dual moving magnet phono cartridge design
- “V” form twin magnet architecture
- Generator geometry based on professional cutter head design
- Permalloy center shield plate
- Excellent channel separation performance
- High efficiency laminated para-toroidal coils
- Bonded elliptical stylus
- Aluminium tube cantilever
- Outstanding tracking performance
- Low surface noise groove tracing
- Wide bandwidth frequency response
- Replaceable stylus assembly
- Integrated stylus guard
- Easy alignment assist markings
- Factory fitted on DG-1 Plug & Play turntable package

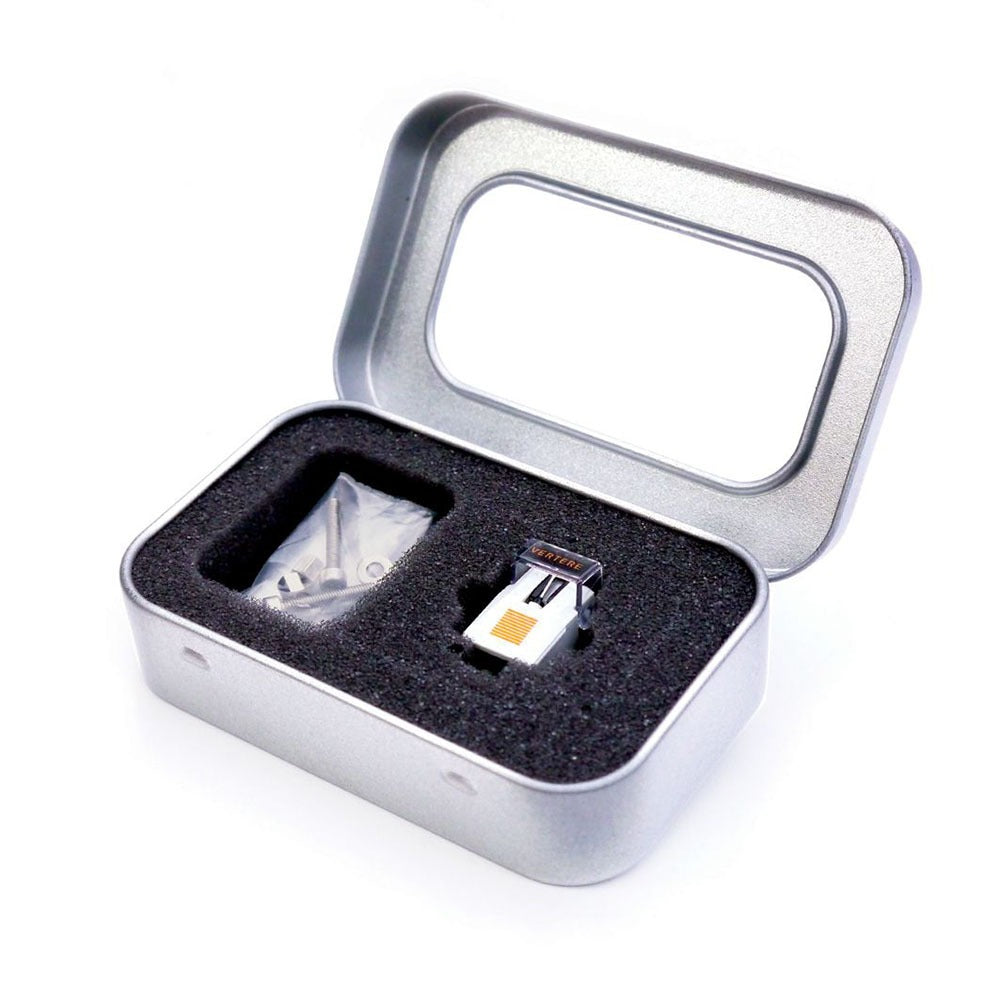

PACKAGE INCLUDES
Stainless Steel Fixing Bolts
Washers
Hex Thumb Nuts
TECHNICAL SPECIFICATIONS
Frequency Response: 20Hz – 23kHz
Channel Separation: 27dB (1kHz)
Output Channel Balance: 1.5dB (1kHz)
Output Voltage: 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8g – 2.2g (2.0g Standard)
Stylus Shape: Elliptical Bonded
Stylus Size: 0.3 × 0.7 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Tube
Coil Resistance: 800Ω (DC)
Static Compliance: 35 × 10⁻⁶ cm/dyne
Dynamic Compliance: 8 × 10⁻⁶ cm/dyne (100Hz)
Recommended Load Impedance: 47,000Ω
Recommended Load Capacitance: 100 – 200pF
Weight: 6.4g
Dimensions: 17.3mm Height
