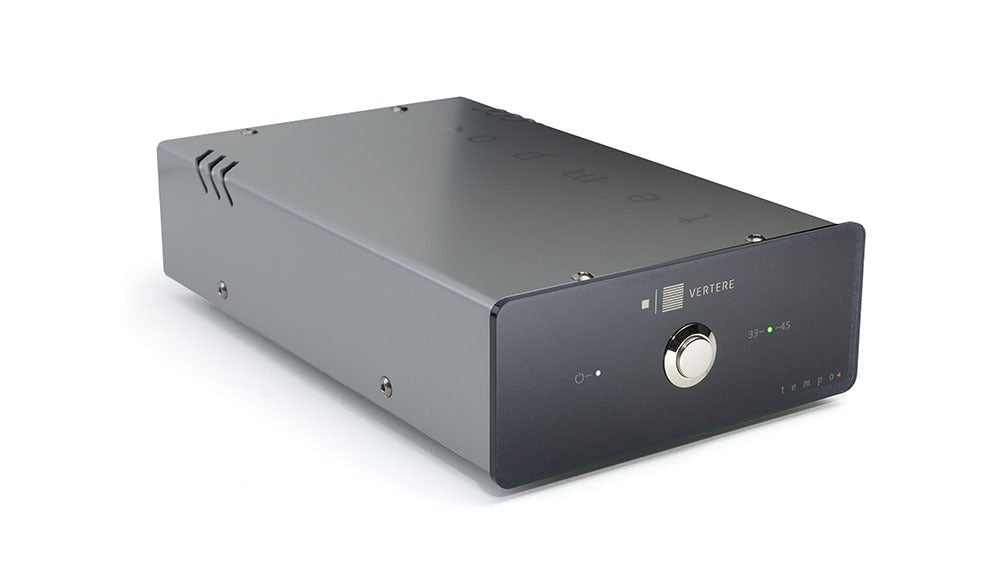

Vertere - Tempo - Precision Motor Drive

The Vertere Tempo Precision Motor Drive is an advanced microprocessor-controlled motor controller engineered to elevate the performance of Vertere record player systems through highly accurate motor management, ultra-low distortion operation, and exceptionally stable rotational control. Derived from technologies developed for Vertere’s flagship reference motor drive platforms, the Tempo advances beyond the SG motor drive design to deliver even greater refinement and precision.

Designed to provide exceptionally clean and controlled power delivery to the motor system, the Tempo incorporates sophisticated digital control architecture, advanced shielding technologies, and carefully selected premium-grade components throughout the signal and power path. The result is highly stable platter rotation with reduced noise, minimized distortion, and enhanced musical realism during vinyl playback.

ADVANCED POWER MANAGEMENT

The Tempo Precision Motor Drive utilizes four fully regulated voltage rails dedicated to independently powering different sections of the internal circuitry. Combined with carefully selected premium components and gold plated PCB construction, the system delivers exceptionally clean, stable, and controlled power to the record player motor assembly.

MICROPROCESSOR & DAC CONTROL

At the heart of the Tempo is a sophisticated programmable microprocessor architecture working in conjunction with a dedicated DAC stage to generate highly accurate analogue sine and cosine waveforms required for precise synchronous motor operation. This advanced control system enables stable low-distortion motor drive performance with exceptional speed consistency.

TRIPLE SHIELDED CIRCUITRY

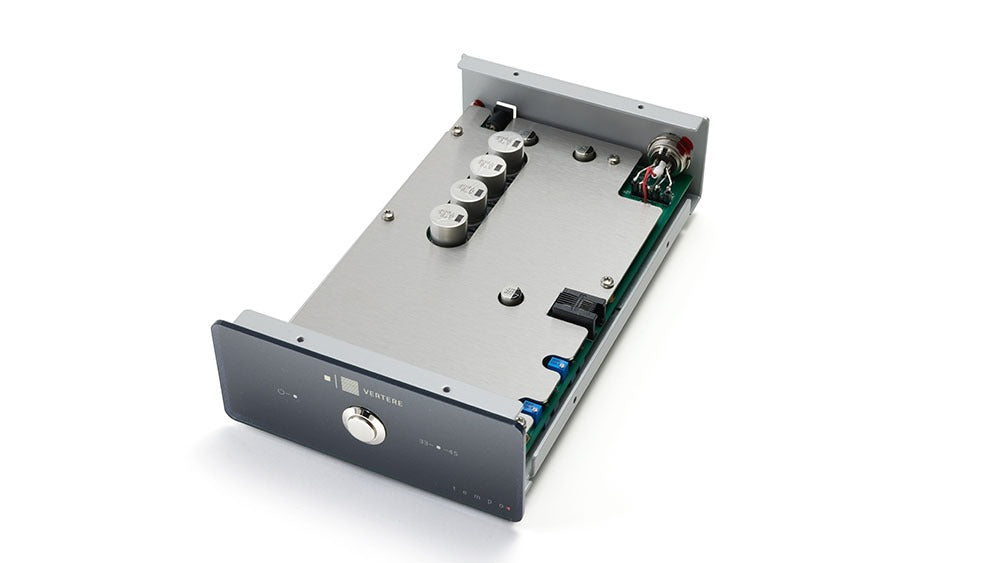

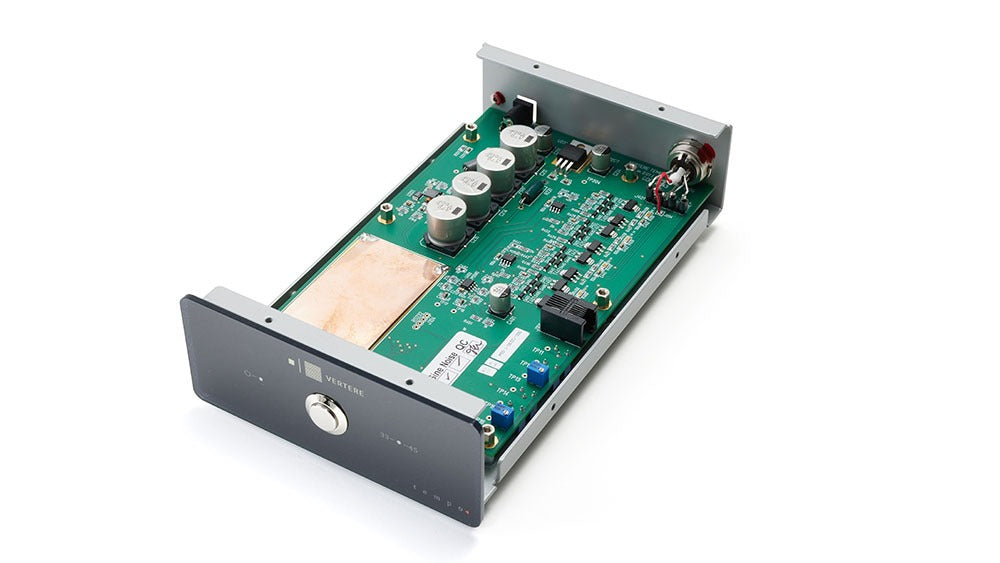

The Tempo employs extensive shielding throughout its internal circuitry to minimize interference and preserve signal integrity. The entire digital, microprocessor, and DAC section is first shielded using copper foil before the complete PCB assembly receives secondary shielding via a stainless steel shield plate for maximum electrical isolation and noise suppression.

PRECISION SPEED CONTROL

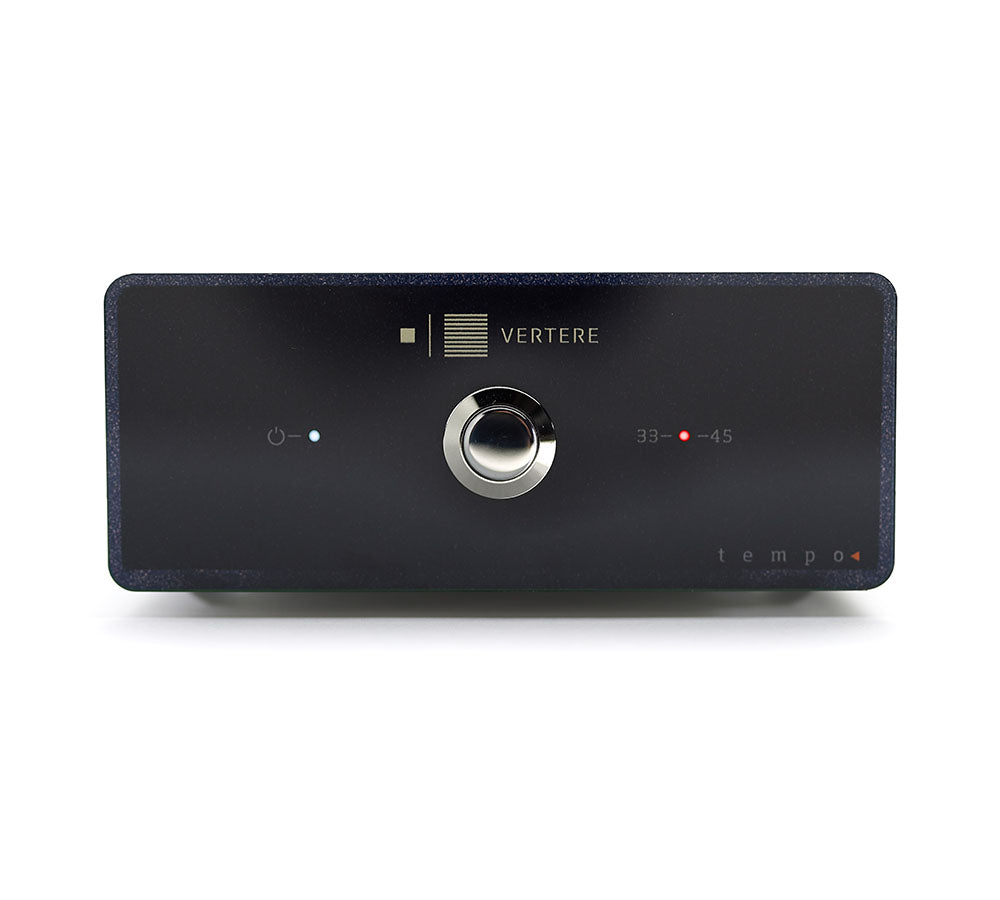

A high-quality mode and speed selector switch provides intuitive operation while allowing programming of three selectable modes for the white power indicator LED. Electronic switching between 33rpm and 45rpm playback speeds ensures convenient operation with highly accurate motor control performance.

MOTOR LINK CONNECTION SYSTEM

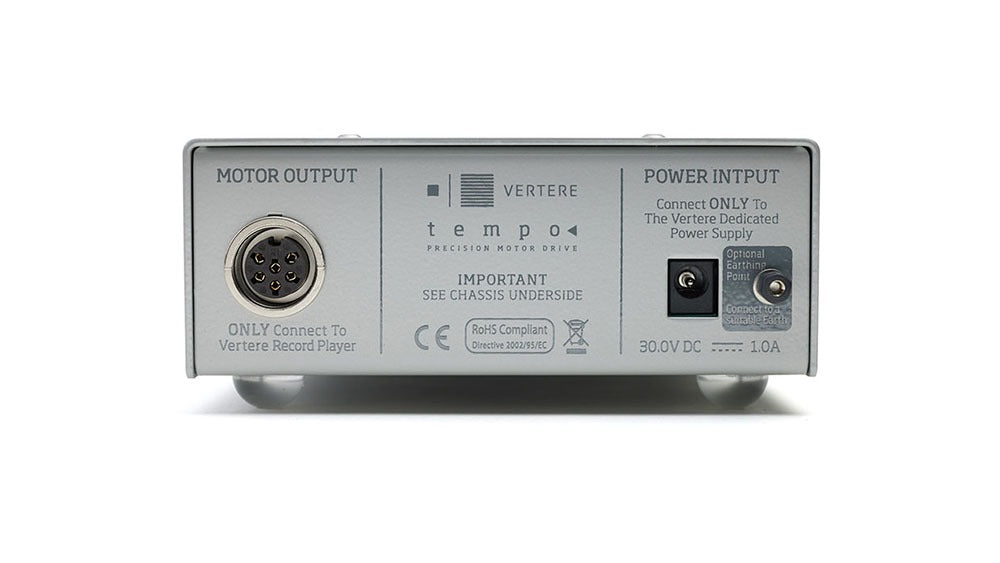

Motor output is delivered through a high-quality gold plated 6-way locking connector system connecting the Tempo to the record player via a dedicated motor link assembly. Internally, the system utilizes dual Pulse-R drive cables together with a D-Fi LED power cable to maintain signal integrity and stable motor operation.

FEATURES

• Advanced microprocessor-controlled motor drive system
• Programmable control architecture
• Reference-derived motor control technologies
• Dedicated DAC waveform generation stage
• Bi-phase bridged amplifier output design
• Precision sine and cosine waveform generation
• Four fully regulated voltage rails
• Gold plated PCB construction
• Triple shielded internal circuitry
• Copper foil and stainless steel circuit shielding
• Electronic 33rpm and 45rpm speed selection
• Programmable LED illumination modes
• Gold plated 6-way locking motor connector
• Dedicated two-phase motor link system
• Pulse-R drive cable integration
• D-Fi LED power cable integration
• Ultra-low distortion motor drive performance

PACKAGE INCLUDES

Tempo Motor Link Connecting Cable

TECHNICAL SPECIFICATIONS

Technology: Microprocessor Controlled & Programmable
Input Power: Dedicated DC Power Supply
Output Drive: Bi-phase Bridged Amplifier
Output: Precision Sine & Cosine Waves
Output Adjustment: 33 | 45 Phase Angle & Level
Output Voltage: 17.5VAC RMS (Two Phases)
LED Illumination Output: 12VDC (Fixed)
THD + N: <0.1%
Circuit Shielding: Triple Shielded
Motor Link Cable: Dedicated Two Phase + LED Power
Power Consumption: <30 Watts Max
Dimensions (D × W × H): 220 × 128 × 58 mm (Including Selector & Feet)
Weight: 1.3kg
