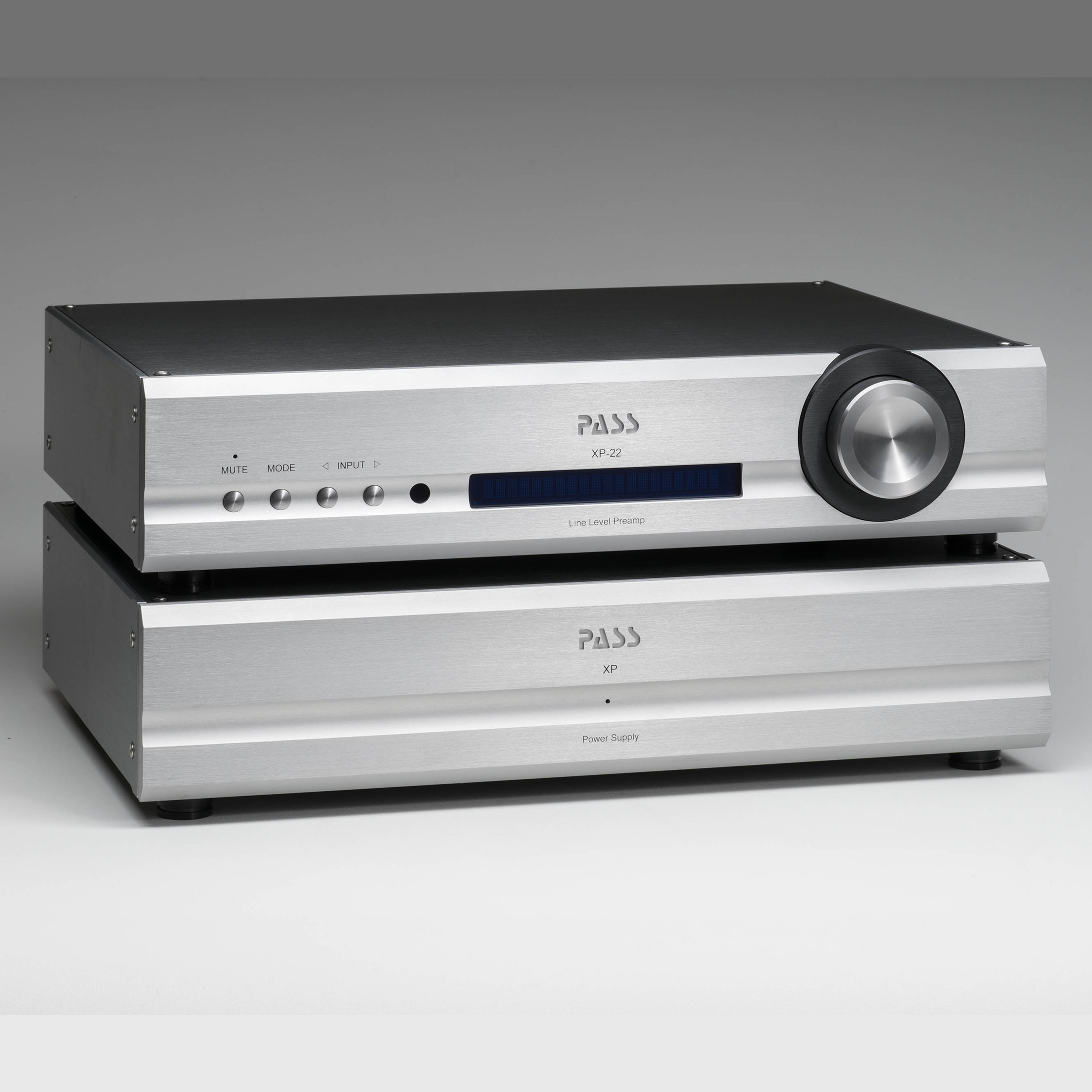

PASS Labs XP-22 – DEMO – SOLD

$8,500.00

Description

The new design uses double shielded low noise toroidal transformers in external supply connected via aviation grade circular connectors using silver over oxygen free copper. The power supply is dual mono with two transformers with lower radiated and mechanical noise. Noise is the most prominent part of THD+N at low levels, so by lowering noise we get better resolution and dynamics.

The gain circuitry continues to use our favorite transistors from Toshiba but has a larger, higher biased, output stage like the Xs Preamp, and includes auto bias.

The larger output stage makes longer, and multiple cable runs easier to drive and gives us the advantage of simplifying our single ended output circuitry while increasing performance.

The volume control is a single stage instead of two stages and has more range it is quieter and more accurate. This the same volume control as used in the XP-30.

Overall this makes for a quieter more neutral, musical and versatile control center for your system.

The XP-22 measures spectacularly well but it really stands out sonically.

Features:

Solid State Pre-Amplifier w/ discrete power supply

  • Gain: 9.6dB Balanced, 3dB single-ended.
  • Output Impedance: 25 Ohms RCA, 50 Ohms XLR
  • Input Impedance: 22K Ohms
  • Frequency response: +/- 0.05 dB 10Hz to 20KHz / -2dB @ 150KHz
  • Crosstalk: > 100dB
  • THD: <0.001 @ 1V 1Khz
  • Max out: 33V RMS 0.1%
  • Residual Noise: 2uV RMS, SN -125dB ref max out
  • Chassis: 2

Specifications:

Inputs:

  • 2x Stereo XLR
  • 3x Stereo RCA
  • 1x Tape input

Outputs:

  • 1x Stereo XLR
  • 2x Stereo RCA
  • 1x Tape output

Power Consumption: 40 Watts

Dimensions:

4 inches High (each chassis; ~9 inches high when stacked)

17 inches Wide

12-1/2 inches Deep

Weight: 55 lbs

Notes- This item is in DEMO condition, meaning it is an open box item that most likely has been used for display purposes by a manufacturer or distributor.
