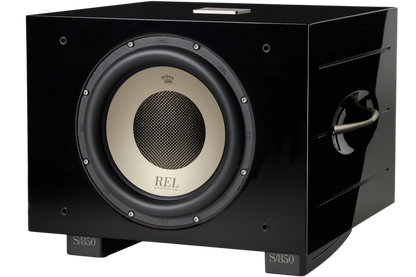

REL - S/850 - Powered Subwoofer

REL S/850 stands as the flagship of the acclaimed Serie S lineup, combining immense output capability with extraordinary finesse, transparency, and control. Designed for serious audiophiles and home theater enthusiasts, S/850 draws heavily from REL's Reference Series innovations to deliver explosive dynamics, effortless low-frequency extension, and exceptional musicality in medium-to-large rooms.

Featuring an 850-watt Linear Class D amplifier, a newly developed 12-inch CarbonAlloy active driver, and a massive long-stroke passive radiator, S/850 produces bass that is powerful, nuanced, and remarkably fast. Whether used as a single subwoofer, stereo pair, or as part of a REL Line Array, it provides a level of performance that redefines expectations within its class.

DESIGN

The S/850 cabinet is longer, lower, wider, and deeper than previous generations, creating a commanding visual presence while maximizing internal volume for improved acoustic performance. Elegant detailing includes precision-machined metal accents, recessed stainless-steel handles, and premium silver-gold finished badges inspired by titanium.

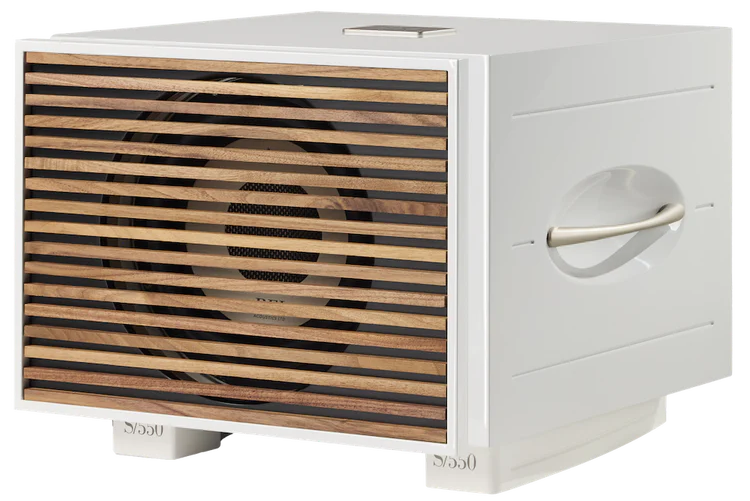

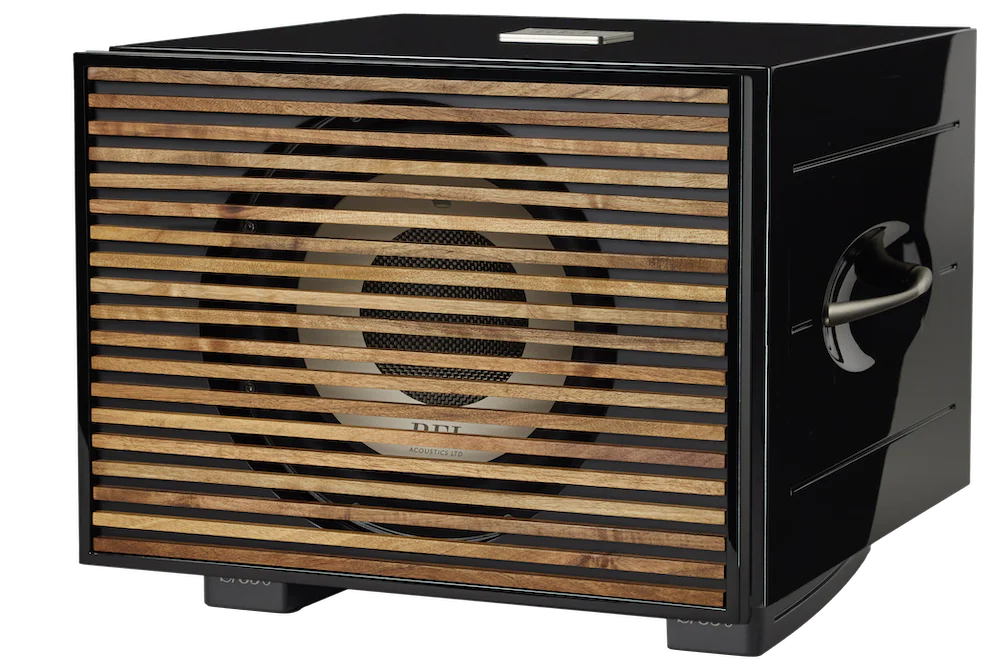

Built for both beauty and functionality, the cabinet incorporates internal aluminum reinforcement for Line Array applications, precision-machined leveling cylinders, and an optional Premium Wood Grille upgrade that adds warmth and individuality to the design.

DRIVER

At the core of S/850 is a newly refined 12-inch CarbonAlloy active driver utilizing a lightweight carbon-fiber center cap. By reducing moving mass while increasing rigidity, the driver delivers faster transient response, greater dynamic impact, and enhanced low-level detail retrieval.

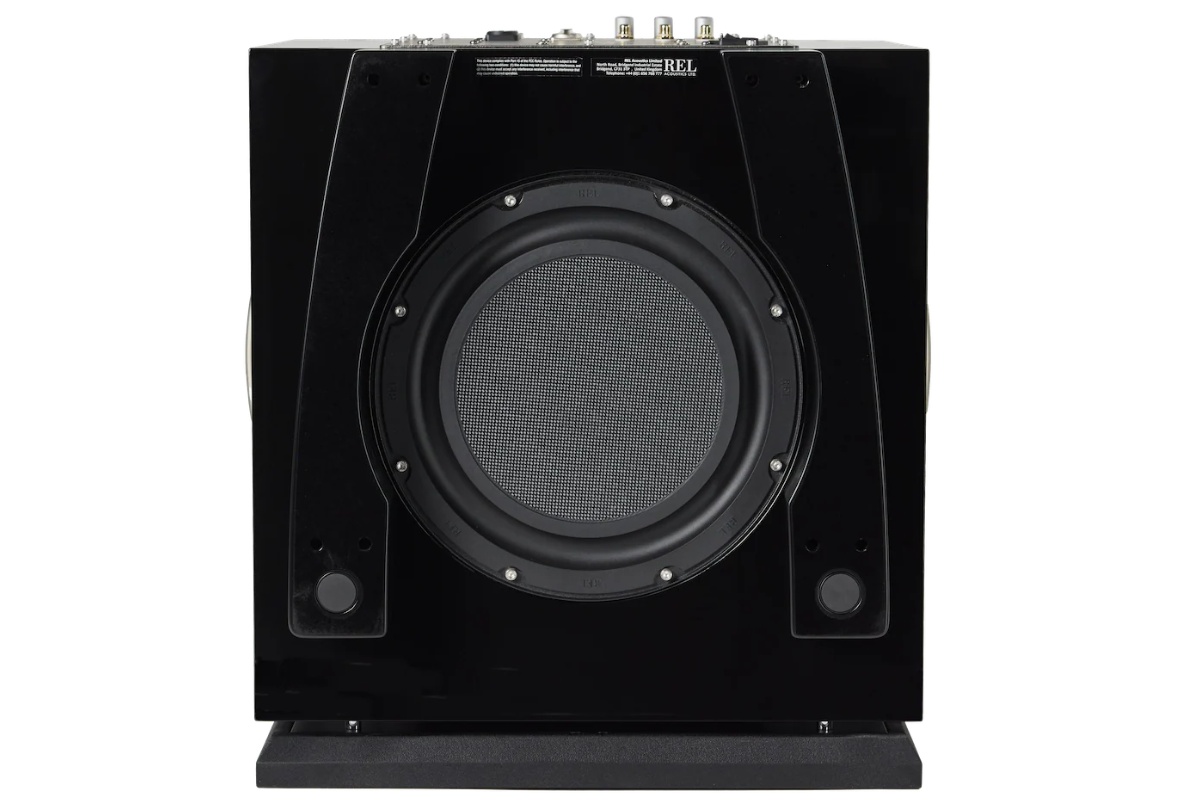

Supporting the active driver is a redesigned 12-inch down-firing passive radiator constructed from advanced carbon fiber, glass fiber, and closed-cell foam materials. With over 2.4 inches (60mm) of travel in each direction, the passive radiator significantly expands bass authority, dynamic range, and low-frequency extension while maintaining exceptional control.

AMPLIFIER

The S/850 employs a powerful 850-watt Linear Class D amplifier engineered to combine the slam and authority of large Class A/B monoblocks with the efficiency and speed of modern Class D technology. Supported by a robust traditional power supply, the amplifier is capable of delivering up to 1,000 watts during demanding peaks, ensuring effortless dynamics and exceptional headroom.

Premium thin-film capacitors and REL's advanced analog filter architecture contribute to remarkable transparency, soundstage depth, and low-frequency precision. REL's legendary High-Level connection, along with RCA and XLR inputs, allows seamless integration into both high-end stereo systems and dedicated home theaters.

WIRELESS

S/850 is compatible with REL's optional AirShip Direct wireless system. Designed specifically for reference-grade performance, AirShip Direct transmits both High-Level and .1/LFE signals simultaneously while preserving dynamics, transparency, tonal accuracy, and bass authority without compression or compromise.

WHAT'S IN THE BOX

• S/850 Subwoofer
• 6 ft. AC Power Cord
• 32 ft. Neutrik Speakon Cable
• Line Array Mounting Hardware
• Cloth Grille
• User Manual & Warranty Information

*Premium Wood Grille sold separately and not included with the subwoofer.

SPECIFICATIONS / DIMENSIONS

Type: Front-Firing Active Driver, Down-Firing Passive Radiator
Active Driver: 12 in. (305mm) Long-Throw CarbonAlloy Cone Structure, Die-Cast Alloy Chassis
Passive Radiator: 12 in. (305mm) Carbon/Carbon Flat Cone Structure, Steel Chassis
Amplifier Power: 850 Watts RMS
Amplifier Type: Linear Class D
Low Frequency Extension: -6dB at 19Hz

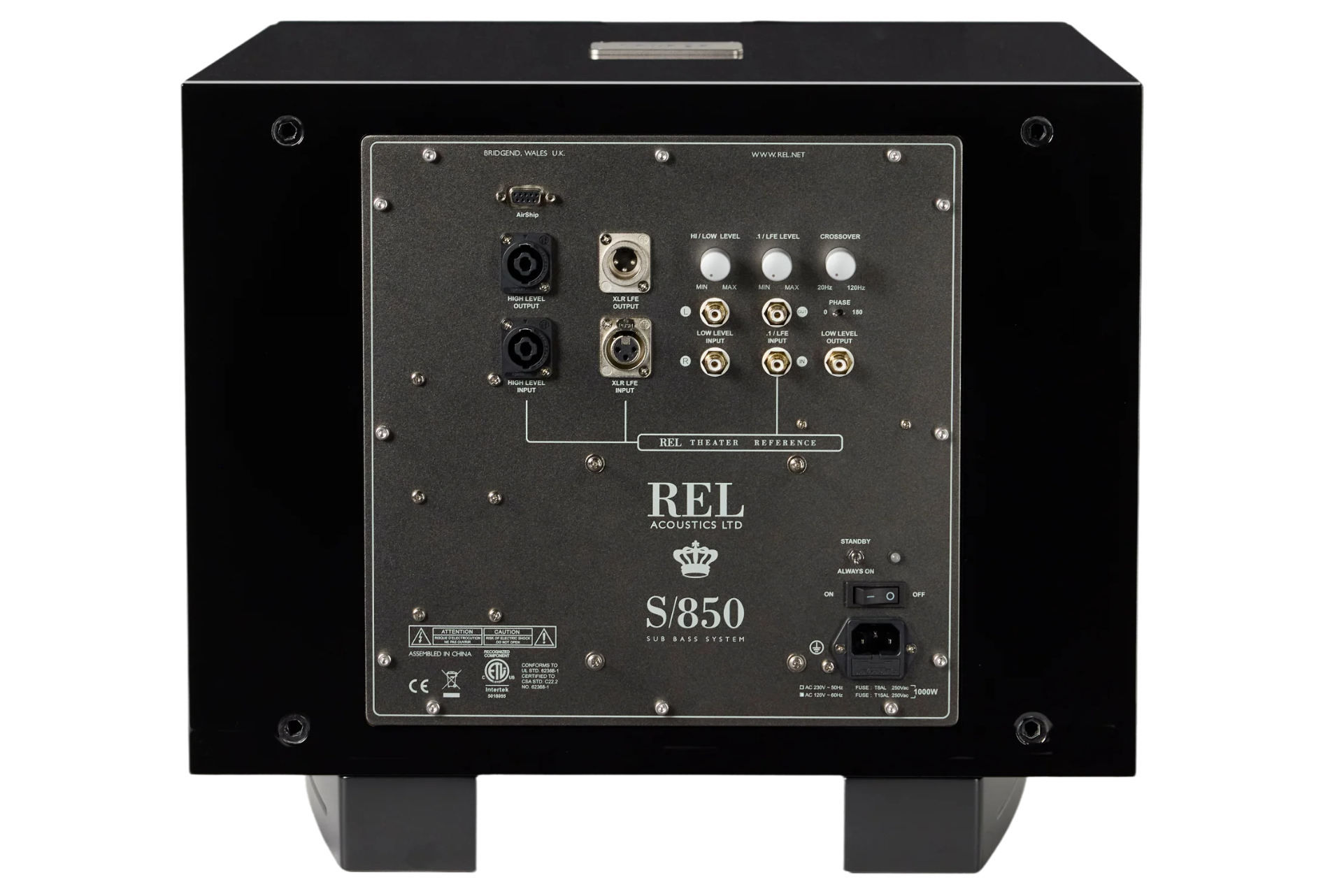

Inputs: High Level Neutrik Speakon, Dual RCA Low Level, LFE RCA, LFE XLR
Outputs: High Level Neutrik Speakon, Low Level RCA, LFE RCA, LFE XLR
Wireless Capability: REL AirShip Direct (Sold Separately)
Available Finishes: Piano Black Lacquer, Gloss White Lacquer
Finish: 8-Coat High Gloss Lacquer
Protection System: Fully Electronic Set Safe
D.C. Fault Protection: Yes
Output Short Protection: Yes
Mains Voltage: 220-240V / 110-120V Depending on Market
Fuse Rating: 8 Amp Semi Delay (220V), 15 Amp Semi Delay (120V)
Included High-Level Cable: 10 Meter (32 ft.) Neutrik Speakon
Dimensions (W x H x D): 19.25 x 16.125 x 21.25 in. (488 x 410 x 540 mm)
Net Weight: 93.5 lbs. (42.5 kg)
